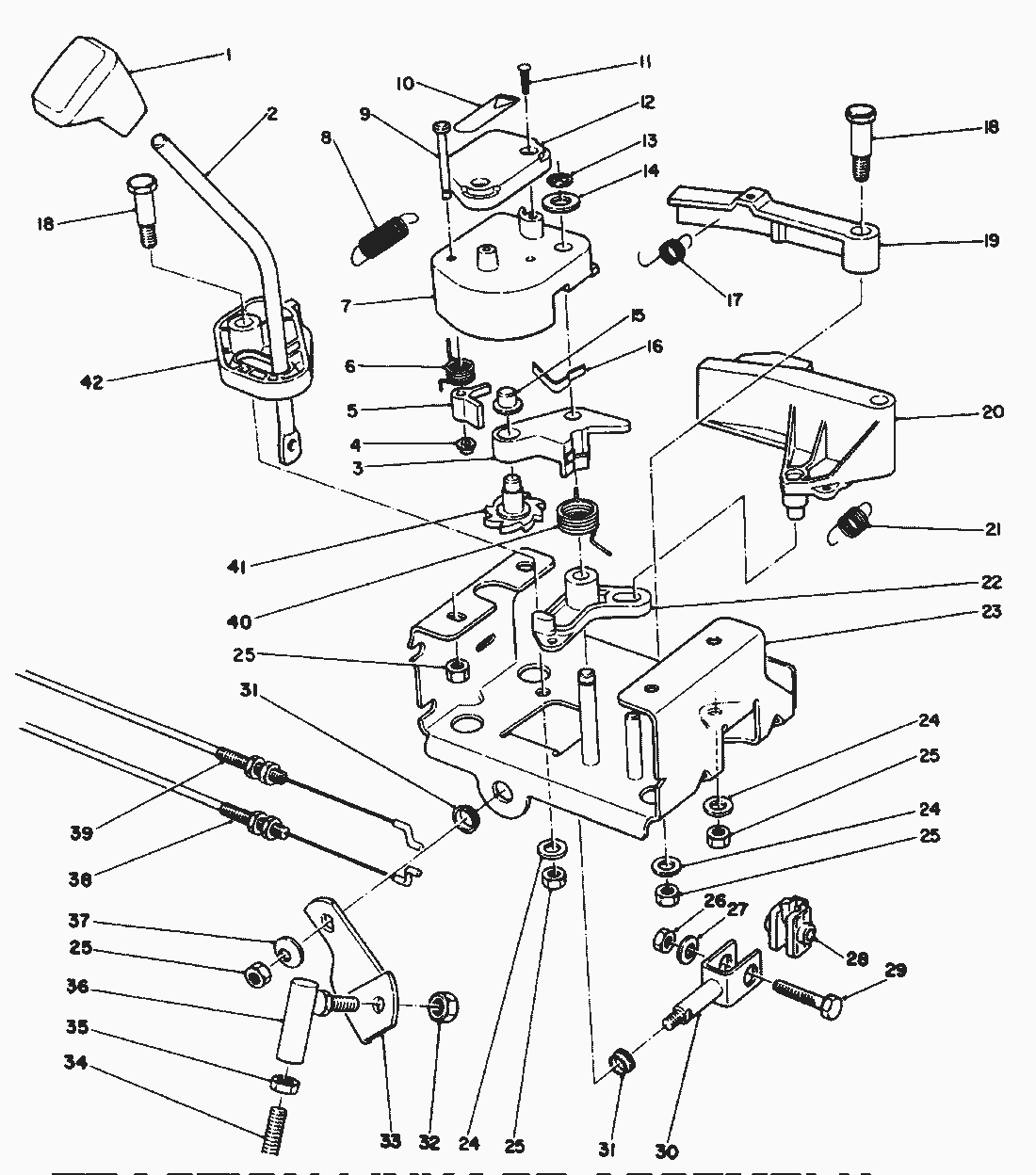

Spare Parts Lists for Toro Roth / TORO Traction Linkage Assy.

pos.	decription	spare part number
1	Knob-Shift	62-1290
2	Rod-Shift (Upper)	67-9240
3	Lever-Index Wheel	62-1110
4	Push Nut-Washer Cap	3290-422
5	Tang-Index	62-0180
6	Spring-Torsion	62-1650
7	Lever-Latch	62-1100
8	Spring-Extension (Latch Lever)	63-2220
9	Pin-Tang	63-2610
10	Decal-	63-2480
11	Screw-Hex Flange Hd.	32104-118
12	Cover-Latch	62-1140
13	Ring-Retaining	32120-46
14	Washer-Thrust	257-9
15	Push-On Speed Nut	3290-320
16	Spring-Flat	62-1710
17	Spring-Extension (Lockout)	63-2240
18	Screw-Shoulder	63-2650
19	Lever-Lockout	62-1700
20	Lever-Reverse	62-1130
21	Spring-Extension (Reverse Lever)	63-2230
22	Lever-Reverse	62-1120
23	Frame-Control	63-2150
24	Washer	3256-23
25	MUTTER	3296-29
26	MUTTER	3296-42
27	Washer-Plain	3256-1
28	Retainer-Shift Rod	67-9250
29	Screw-Cap Hex. Hd.	321-43
30	Clevis	66-7730
31	Bushing-Nyliner	256-296
32	Nut-Lock	3296-17
33	Bracket-Shift	63-2630
34	Rod-Shift (Lower)	63-2830
35	Jam Nut	3220-3
36	Joint-Ball	63-2640
37	Washer-Belleville	3290-456
38	Cable-Gearbox	63-2210
39	Cable-Latch	63-2200
40	Spring-Torsion	63-2270
41	Wheel-Index	62-0170
42	Base-Lockout	62-1470
