Spare Parts Lists for Wolf Loppers Anvil Lopper RS-A

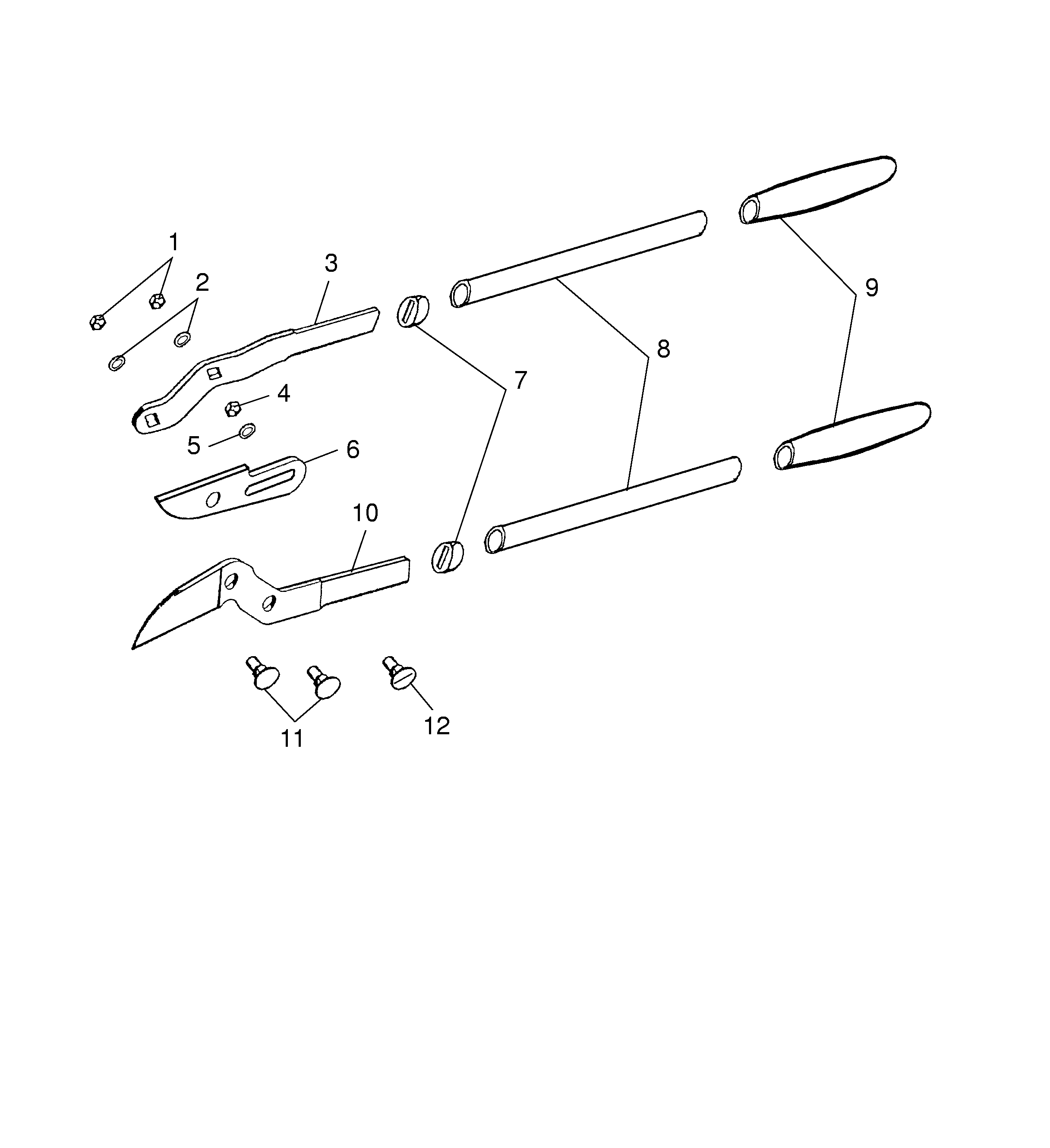

spare parts list


pos.decriptionspare part number
1Hex. Nut M80016 069
2Washer A 8,4 Din 1250017 123
3Lever7201 404
4Hex. Nut M60016 356
5Washer0017 121
6Counter Blade7208 401
7Collar7275 103
8Tubular Grip, Rear7206 100
9Handle Red7255 101
10Blade, Coated7208 408
11Bearing Bolt7208 202
12Eccentric Screw7208 204
***Screw Set Rs-A7208 025
