Spare Parts Lists for Wolf Loppers Anvil Lopper RS-A

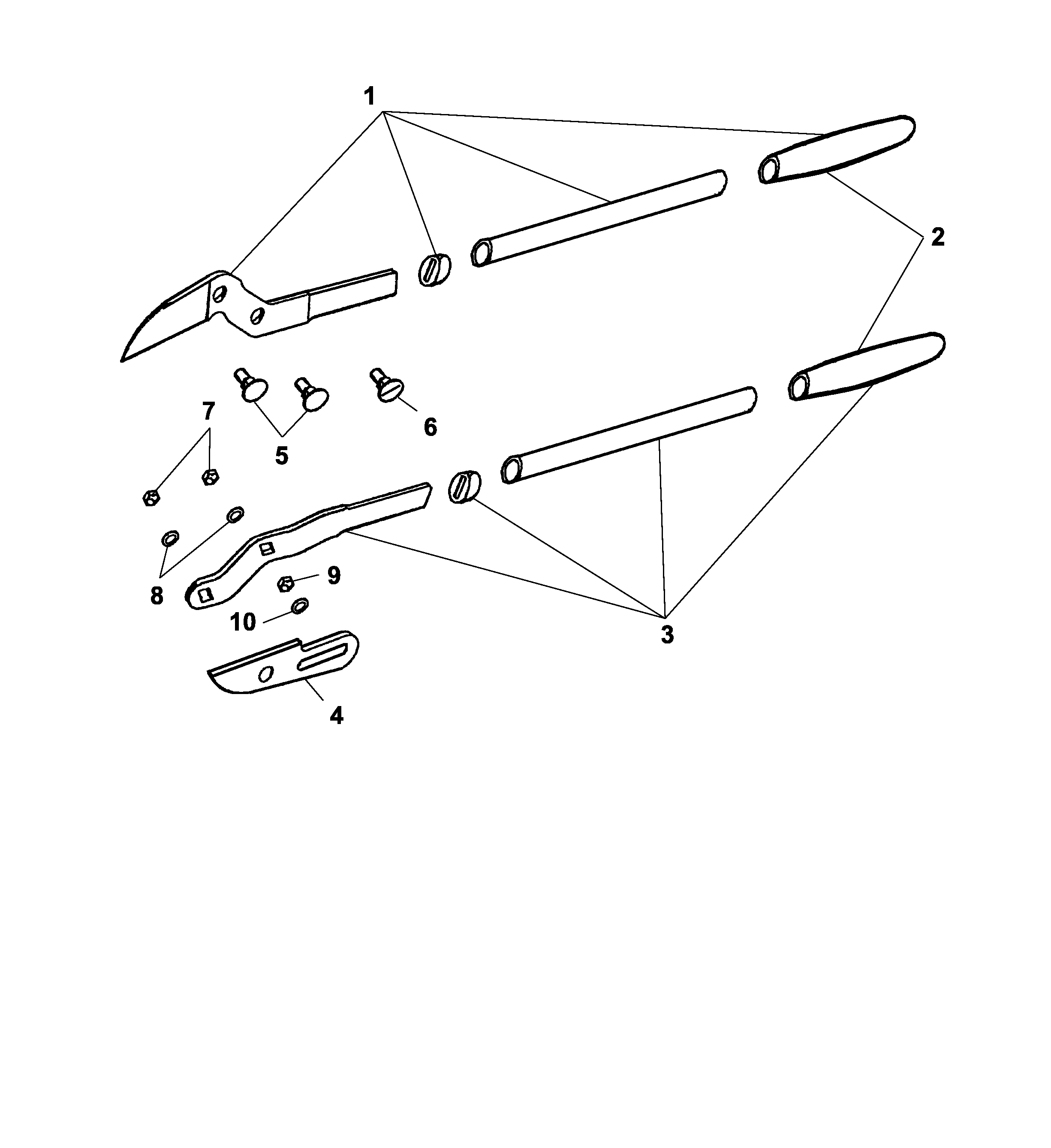

spare parts list


pos.decriptionspare part number
2Handle Red7255 101
1Blade With Handle Tube7208 010
2Handle Red7255 101
3Lever with handle tube7208 011
4Counter Blade7208 401
5Bearing Bolt7208 202
6Eccentric Screw7208 204
7Hex. Nut M80016 069
8Washer A 8,4 Din 1250017 123
9Hex. Nut M60016 356
10Washer0017 121
---Screw Set Rs-A7208 025
