> Scarifiers / Aerators > Scarifiers > Petrol > UV 38 BX > Axle, Wheels, Height-adjustment

Spare Parts Lists for Wolf Scarifiers / Aerators Axle, Wheels, Height-adjustment

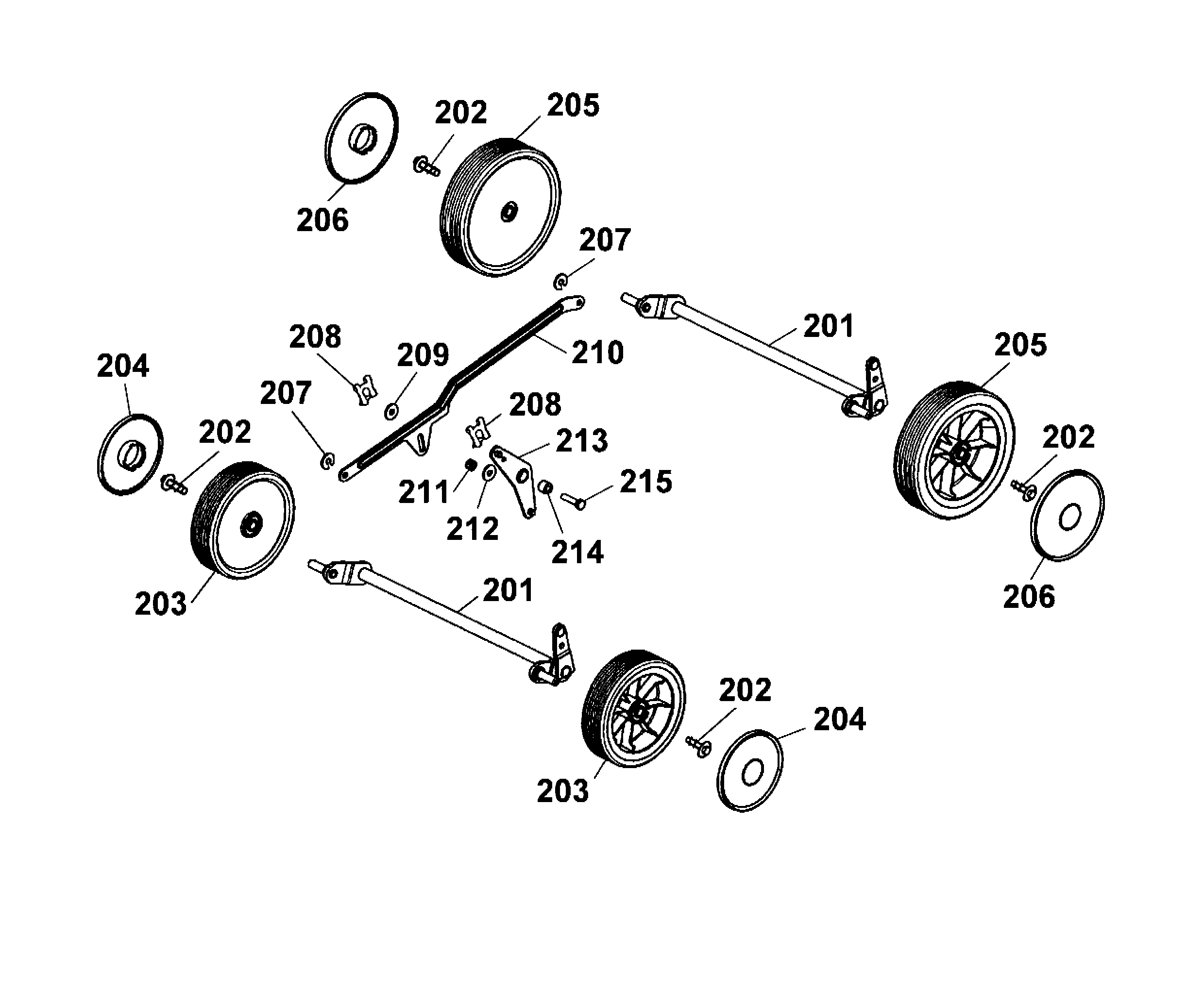

spare parts list


pos.decriptionspare part number
201Axle3638 016
202Screw0010 893
203Wheel ø 170 mm6440 050
204Cover ø 170 mm6450 520
205Wheel ø 200 mm6440 051
206Cover ø 200 mm6450 530
207Circlip0022 410
208Retaining Clip0020 981
209Washer 8 X 14 X 10022 664
210Rod3638 116
211Nut0016 385
212Washer0017 291
213Crank3638 014
214Bush3638 113
215Hex. Screw M8X350010 336
