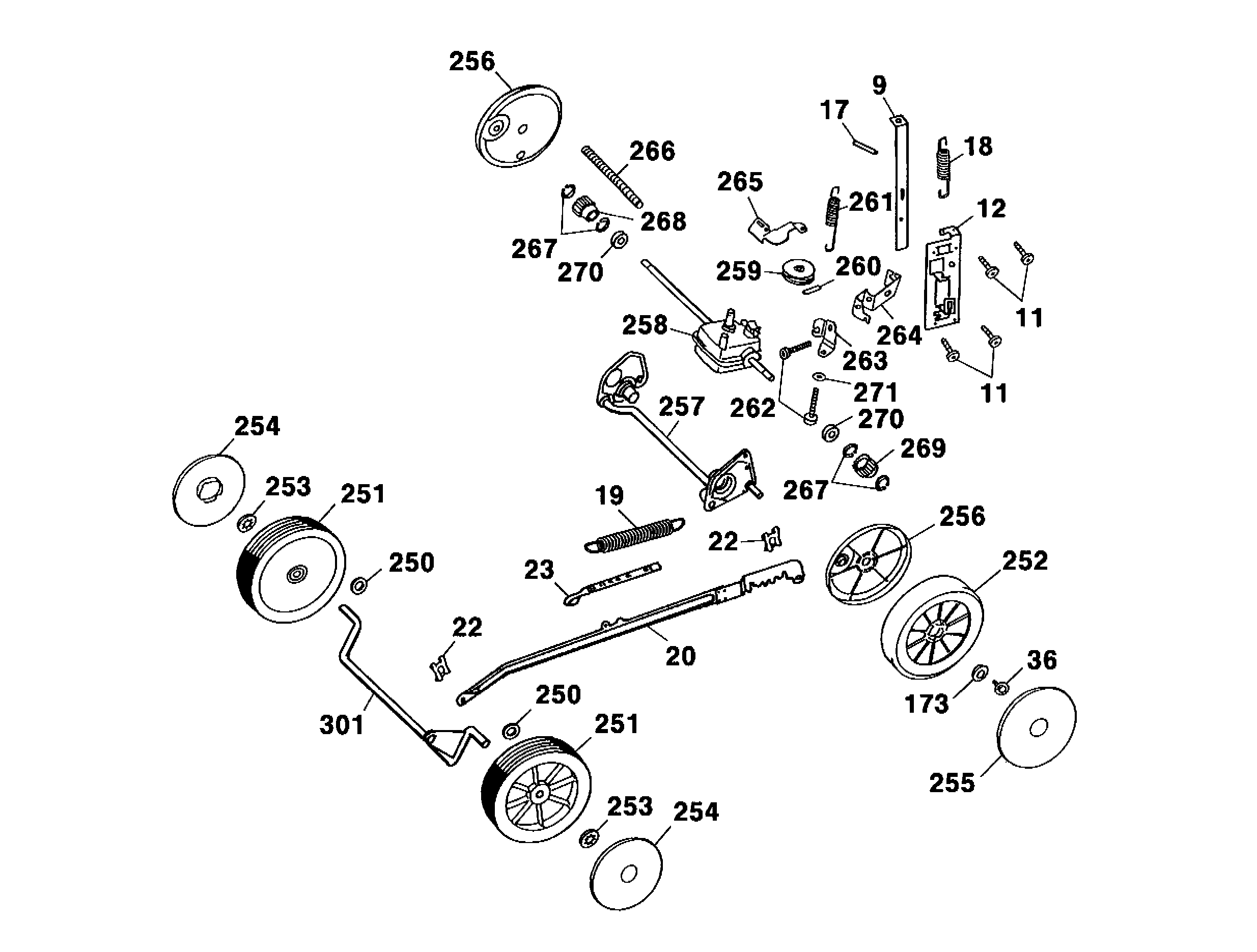

Spare Parts Lists for Wolf Mowers Axle, Wheels, Height-adjustment

pos.	decription	spare part number
9	Plate (Zmv)	4961 512
11	Screw	0010 931
12	Guiding	4001 110
17	Dowel Pin	0018 878
18	Tension Spring	4961 514
19	Tension spring connecting rod	4961 107
20	Rod	4961 504
22	Retaining Clip	0020 981
23	Height-Position Indicator	4001 306
36	Screw	0010 893
250	Washer	0017 112
251	Wheel ø 170 mm	6440 050
252	Driving Wheel 200 Mm Dia.	4605 050
***	Bearing	6340 516
253	Speedfix Retainer	0020 700
254	Cover ø 170 mm	6450 520
255	Cover ø 200 mm	6450 530
256	Hub Cap	4955 327
257	Axle Pipe, Rear	4005 031
***	Driving Axle With Wheels	4015 030
258	Gear	1099 005
259	V-Belt Pulley	1097 201
260	Dowel Pin	1097 202
261	Tension Spring	4725 108
262	Screw	0012 615
263	Arm	4605 104
264	Supporting Sheet Metal	6450 164
265	Lever	4605 102
266	Protecting Tube	4605 328
267	Circlip	0020 010
268	Coupling Pinion, Right	4725 025
269	Coupling Pinion, Left	4725 026
270	Bearing	0023 147
271	Washer	0017 289
301	Axle	4961 011
