Spare Parts Lists for Wolf Mowers Axle, Wheels, Height-adjustment

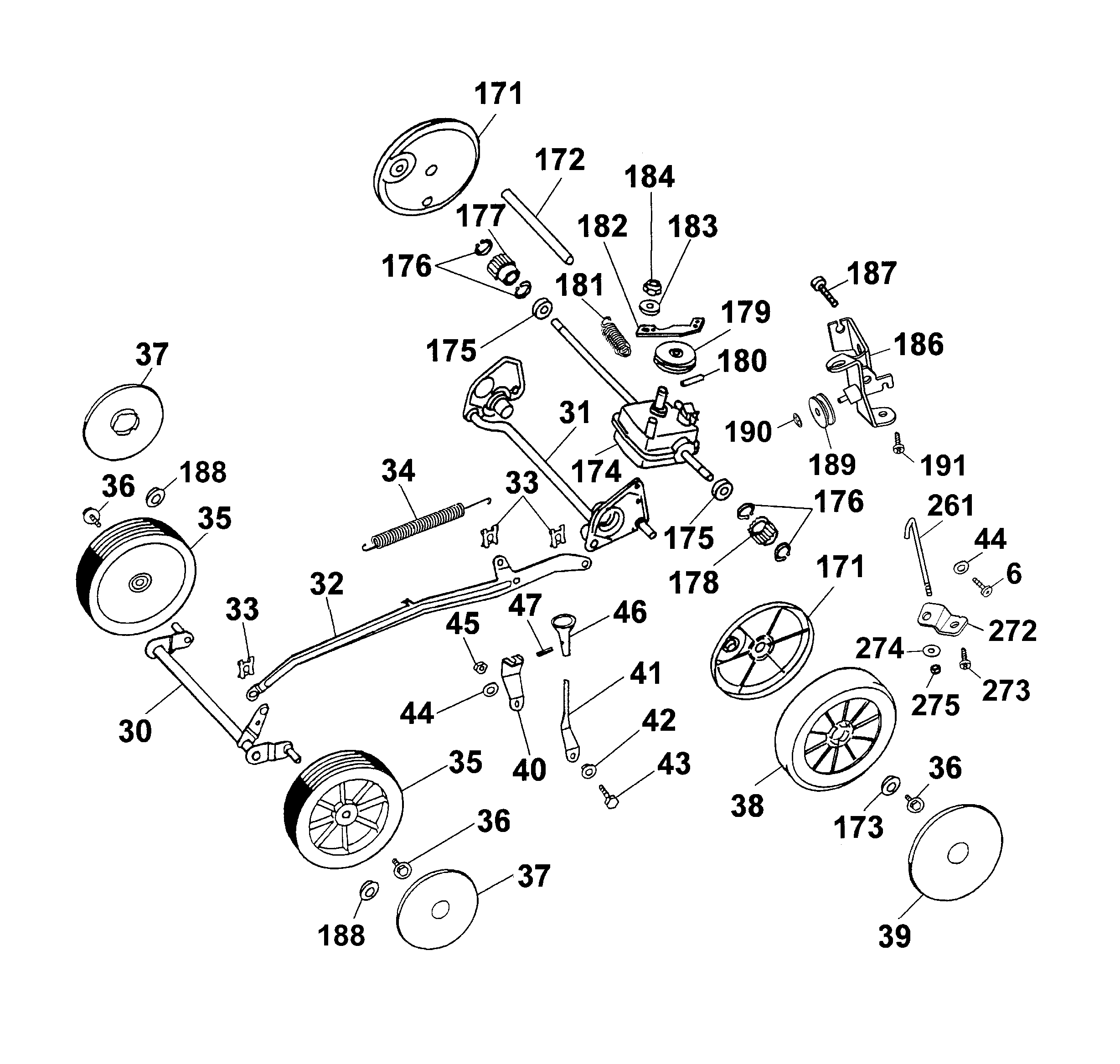

spare parts list

pos.	decription	spare part number
6	Screw 5X12	0012 605
30	Axle Front	6450 016
31	Driving Axle	6450 038
32	Rod	6450 020
33	Retaining Clip	0020 983
34	Tension Spring	6450 139
35	Wheel ø 170 mm	6440 050
36	Screw	0010 893
37	Cover ø 170 mm	6450 520
38	Driving Wheel 200 Mm Dia.	4605 050
39	Cover ø 200 mm	6450 530
40	Lever	6450 134
41	Spring Lever	6450 132
42	Bush	6450 146
43	Hex. Screw M 6X20	0010 377
44	Washer	0017 289
45	Nut	0016 311
46	Height Adjusting Knob	6450 313
47	Dowel Pin 3X20	0018 813
171	Hub Cap	4955 327
172	Protecting Tube	4605 328
173	Bearing	6340 516
174	Gear	1098 060
175	Bearing	0023 147
176	Circlip	0020 010
177	Coupling Pinion, Right	4725 025
178	Coupling Pinion, Left	4725 026
179	V-Belt Pulley	1098 201
180	Dowel Pin	1098 202
181	Spring	1097 205
182	Gear Lever	1098 200
183	Washer	0017 120
184	Hex. Nut	0016 310
186	Gear Holder With Rope Roll	6460 045
187	Screw	0012 610
188	Bushing	4916 516
189	Reel-Recoil	6460 104
190	Speedfix Retainer	0020 695
191	Screw	0012 615
261	Connecting Element	4015 100
272	Sheet Metal Tension Rod	6460 100
273	Screw	0012 631
274	Washer	0017 121
275	Nut	0016 311
