> Mowers > Electro > Without drive up to 38 cm > series 2 > 2.32 E-1 > Axle, Wheels, Height-adjustment

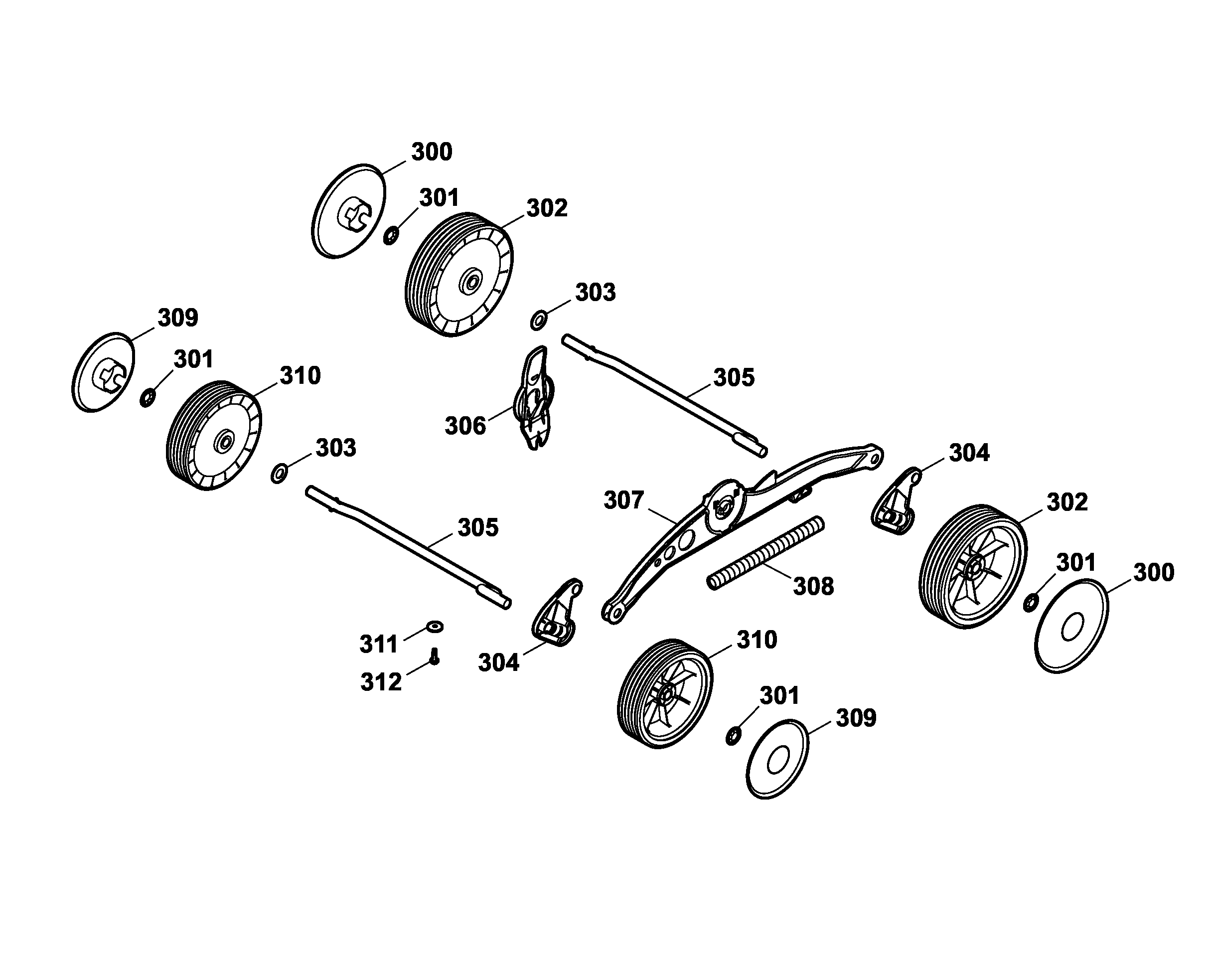

Spare Parts Lists for Wolf Mowers Axle, Wheels, Height-adjustment




spare parts list


pos.decriptionspare part number
300Cover4905 521
301Speedfix Retainer0020 700
302Wheel4905 501
303Washer0017 074
304Clip4907 318
305Axle4905 100
306Lever4905 316
307Rod4905 314
308Tension Spring4907 112
309Hub ø 1304905 520
310Wheel4905 500
311Washer0017 109
312Screw0012 630
