> Mowers > Electro > Drive > Power Edition > Power Edition 40 EA > Axle, Wheels, Height-adjustment

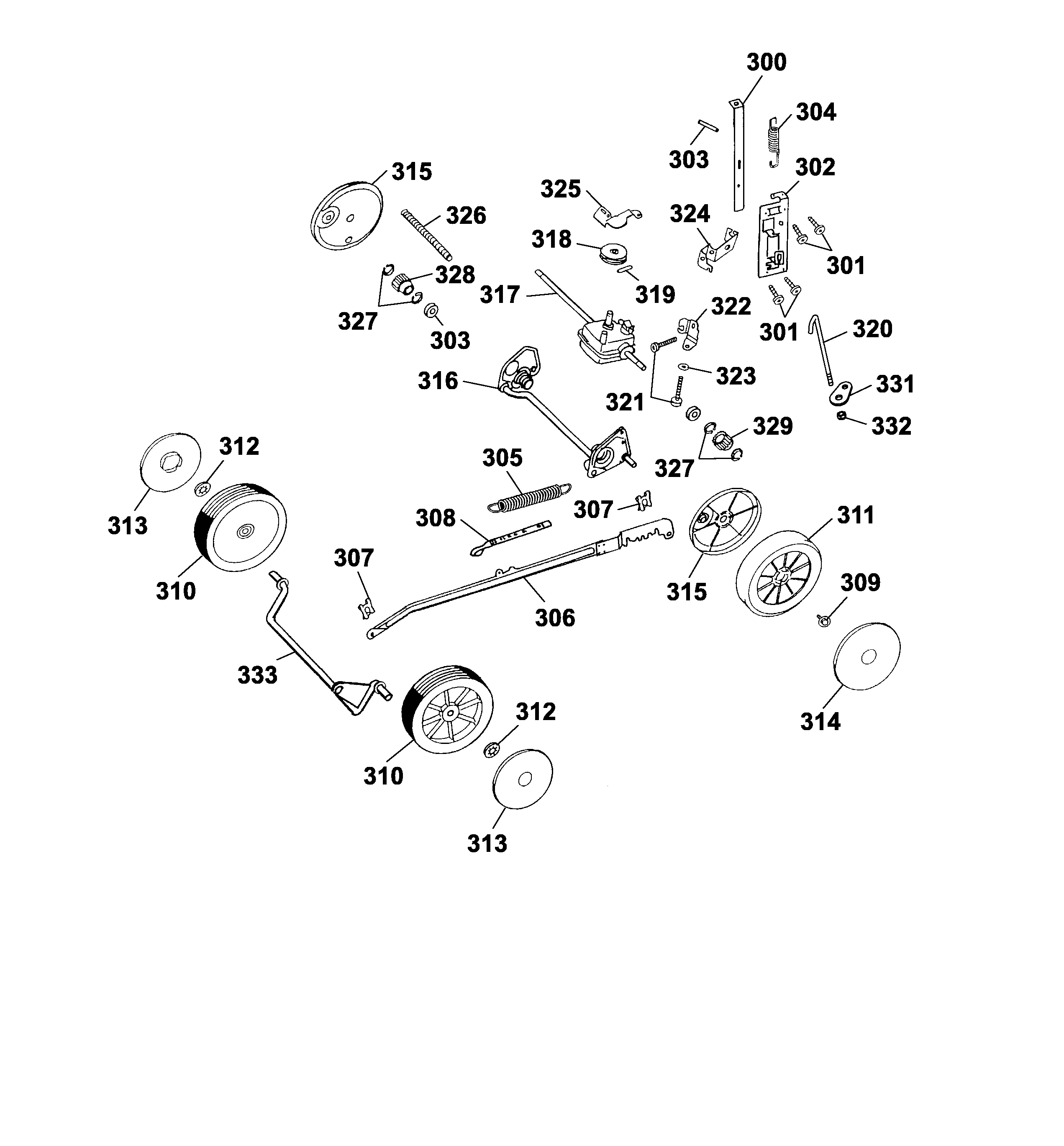

Spare Parts Lists for Wolf Mowers Axle, Wheels, Height-adjustment




spare parts list


pos.decriptionspare part number
300Plate (Zmv)4961 512
301Screw0010 931
302Guiding4001 110
303Dowel Pin0018 878
304Tension Spring4961 514
305Tension spring connecting rod4961 107
306Rod4001 504
307Retaining Clip0020 981
308Height-Position Indicator4001 306
309Screw0010 893
310Wheel ø 170 mm6440 050
311Driving Wheel 200 Mm Dia.4605 050
***Bearing6340 516
312Speedfix Retainer0020 700
313Cover ø 170 mm6450 520
314Cover ø 200 mm6450 530
315Hub Cap4955 327
316Axle Pipe, Rear4005 034
***Driving Axle With Wheels4015 030
317Gear1099 005
318V-Belt Pulley1097 201
319Dowel Pin1097 202
320Connecting Element4015 100
321Screw0012 615
322Arm4605 104
323Washer0017 289
324Supporting Sheet Metal6450 164
325Lever4605 102
326Protecting Tube4605 328
327Circlip0020 010
328Coupling Pinion, Right4725 025
329Coupling Pinion, Left4725 026
330Bearing0023 147
331Bracket - Air4005 101
332Nut0016 311
333Axle Front4020 032
