Spare Parts Lists for Wolf Loppers Bypass Lopper RR 830

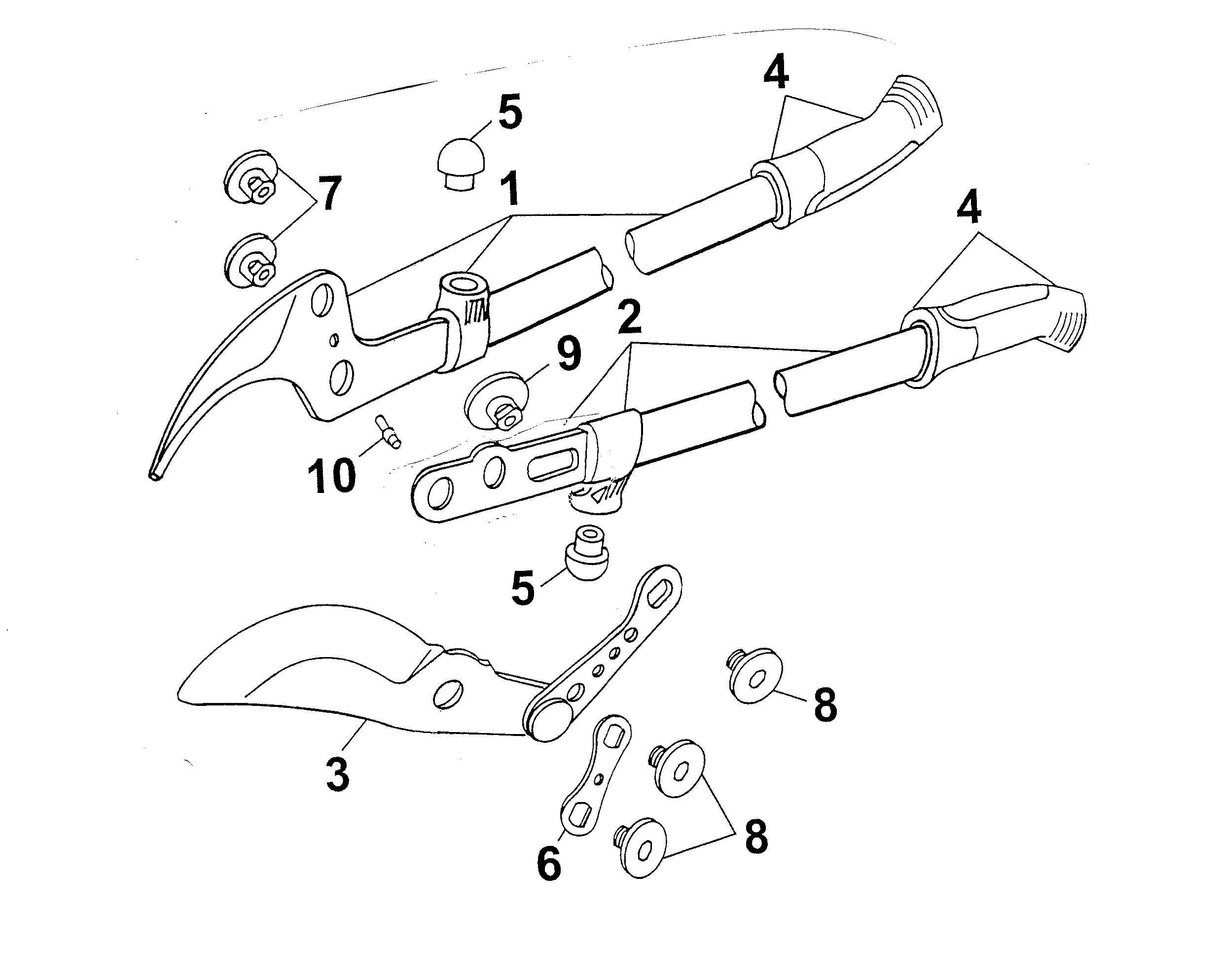

spare parts list


pos.decriptionspare part number
1Cutting Lever With Griptube7351 012
2Knife Tang Complete7351 013
3Blade With Connecting Rod Compl.7351 011
4Grip7275 101
4Cap7275 102
5Rubber Buffer7254 204
6Bracket7276 200
7Tapped Bush7254 207
8Screw M87252 201
9Bush For Variation7254 206
10Bolt7254 208
***Screw Set Compl. Rs820/8607271 025
