Spare Parts Lists for Wolf Loppers Bypass Lopper RR-P4

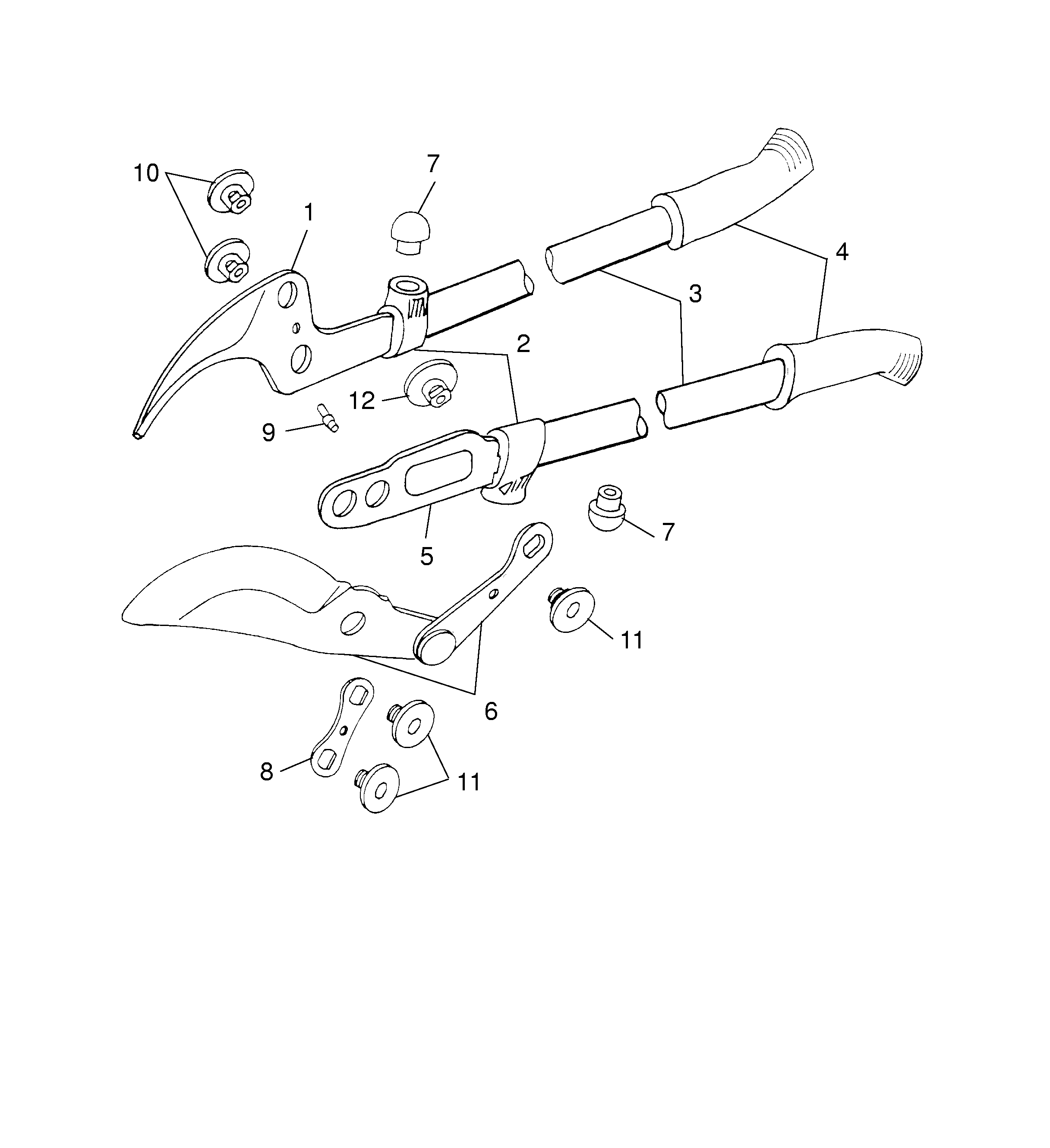

spare parts list


pos.decriptionspare part number
1Blade Lever, Coated7254 401
2Rubber Buffer Holder7350 201
3Tubular Grip, Rear7206 100
4Handle Red7255 101
5Tang7276 302
6Blade With Connecting Rod Compl.7351 011
7Rubber Buffer7254 204
8Bracket7276 200
9Bolt7254 208
10Tapped Bush7254 207
11Screw M87252 201
12Bush For Variation7254 206
***Screw set (ref. no. 10-12)7351 025
