> Ride-on Mowers > Scooter > SV > Scooter SV 4 > Cable form

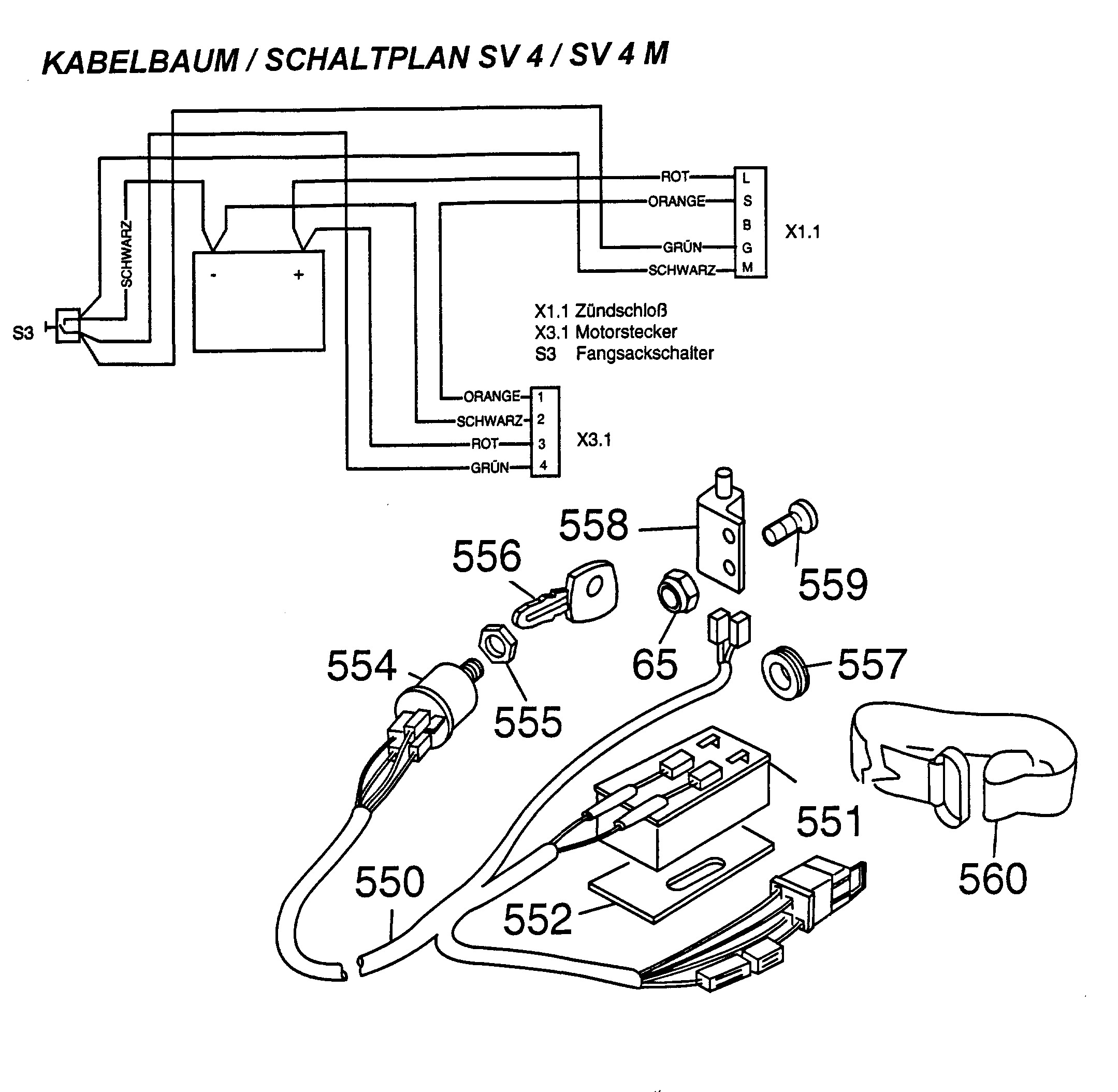

Spare Parts Lists for Wolf Ride-on Mowers Cable form




spare parts list


pos.decriptionspare part number
65Self Locking Nut M 40016 309
550Cable Form6150 054
551Battery 12 V, 7,2 Ah6150 075
552Rubber Pad6150 306
554Key Switch Compl.6150 051
555Nut6150 471
556Set Of Keys6.42Accu6150 108
556Spare Key6150 109
557Grommet4730 106
558Switch-Key6150 061
559Screw0012 858
560Clamping Strap6150 216
