> Reel-mowers > Standard > TC > TC 30 S > Chassis, Blade system

Spare Parts Lists for Wolf Reel-mowers Chassis, Blade system

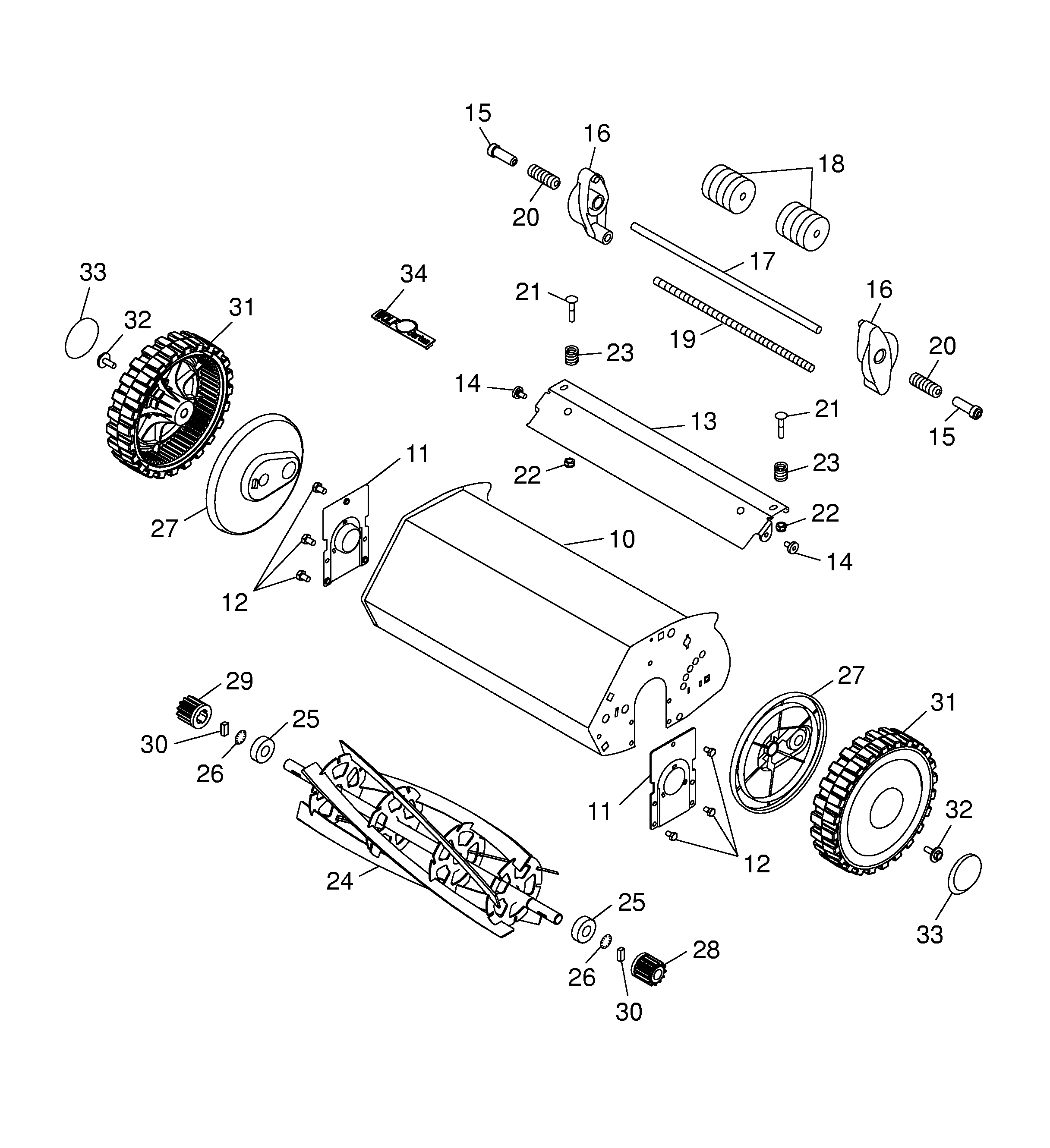

spare parts list

pos.	decription	spare part number
10	Chassis	3624 020
11	Bearing Shield	3616 103
12	Hex. screw M6x10 (6 p.)	0010 375
13	Counter Blade	3628 405
14	Screw	3625 112
15	Screw	3620 112
16	Screw	3628 312
17	Pivot Pin	3620 108
18	Roll	3620 308
19	Protecting Tube	3620 309
20	Compression Spring	7031 405
21	Screw	0013 642
22	Nut	0016 311
23	Compression Spring	3625 107
24	Cutter Block	3625 050
25	Bearing	0023 148
26	Circlip	0020 701
27	Protecting Wheel Cap	3628 327
28	Pinion, Left	3628 109
29	Pinion, Right	3628 108
30	Woodruf Key	3628 106
31	Driving Wheel	3625 060
32	Screw	0010 893
33	Yellow	3625 355
34	Wolf-Garten - Label	0051 115
