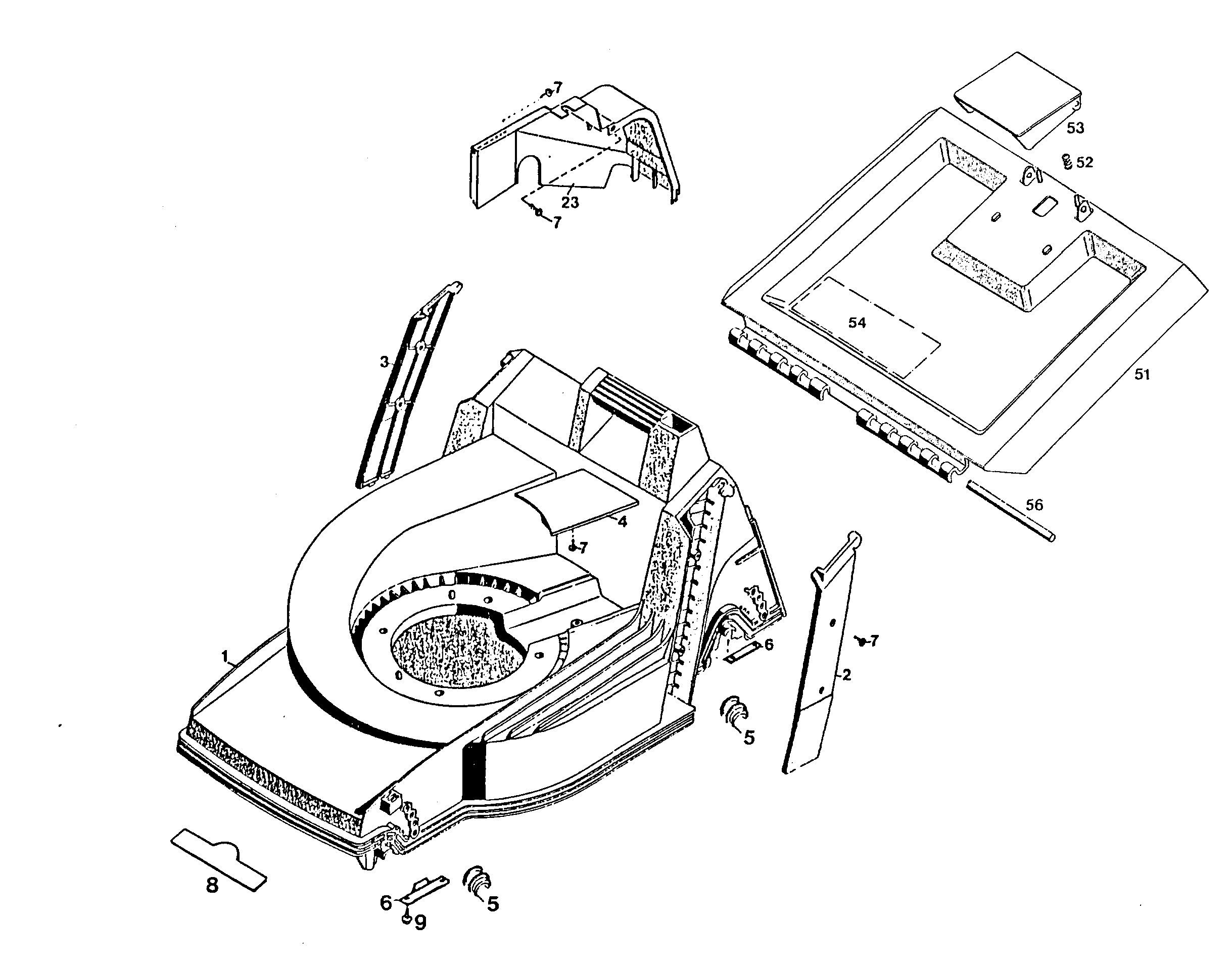

Spare Parts Lists for Wolf Mowers Chassis, Rear flap


spare parts list 1
spare parts list 2


spare parts list


pos.decriptionspare part number
23Cover Plate4740 303
51Rear Flap With Ref. No 52, 53, 544740 043
52Spring4191 206
53Handle4330 102
54Safety Label0051 224
56Pivot Pin4740 208
spare parts list


pos.decriptionspare part number
1Chassis4740 380
2Cover Left4740 341
3Cover Right4740 342
4V-Belt Cover4740 344
5Bearing Shell6340 310
6Supporting Sheet Metal4740 525
7Screw0012 625
8Wolf-Garten - Label0051 145
9Screw0012 630
