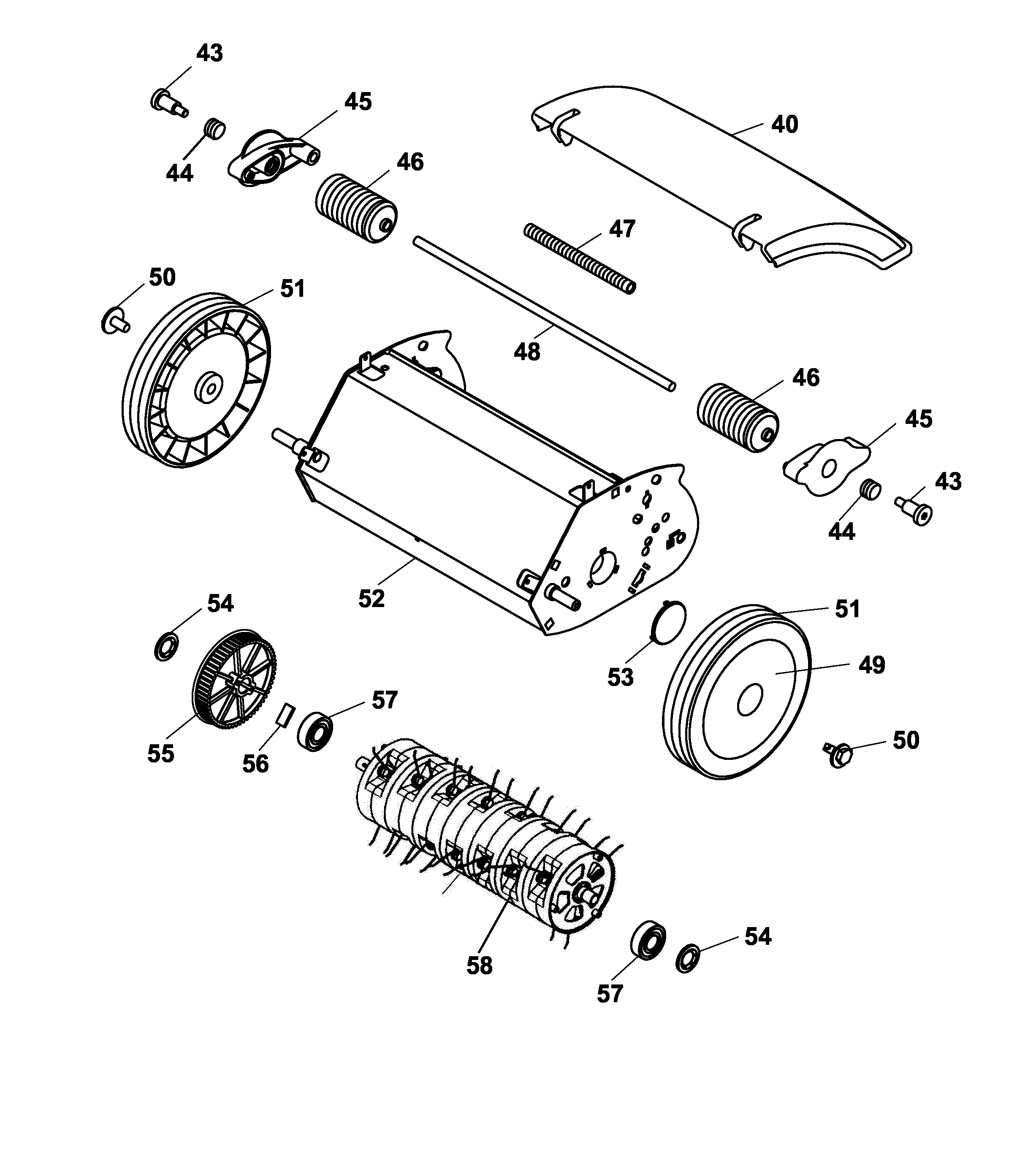

Spare Parts Lists for Wolf Scarifiers / Aerators Chassis, Wheels, Rotor

pos.	decription	spare part number
40	Rear Flap	3620 303
43	Screw	3620 112
44	Compression Spring	7031 405
45	Adjusting Device	3620 312
46	Roll	3620 308
47	Protecting Tube	3620 309
48	Pivot Pin	3620 108
49	Cover ø 170 mm	4936 535
50	Screw	0010 893
51	Wheel ø 200 mm	3630 058
52	Chassis	3620 020
53	Cover	4026 319
54	Ring	0020 690
55	Crowm Gear	3615 316
56	Starter Dog	3620 113
57	Bearing	0023 148
58	Roller Complete	3620 050
***	Replacement Springs Uv-Eff	3620 095
***	Instruction Manual	0054 322
