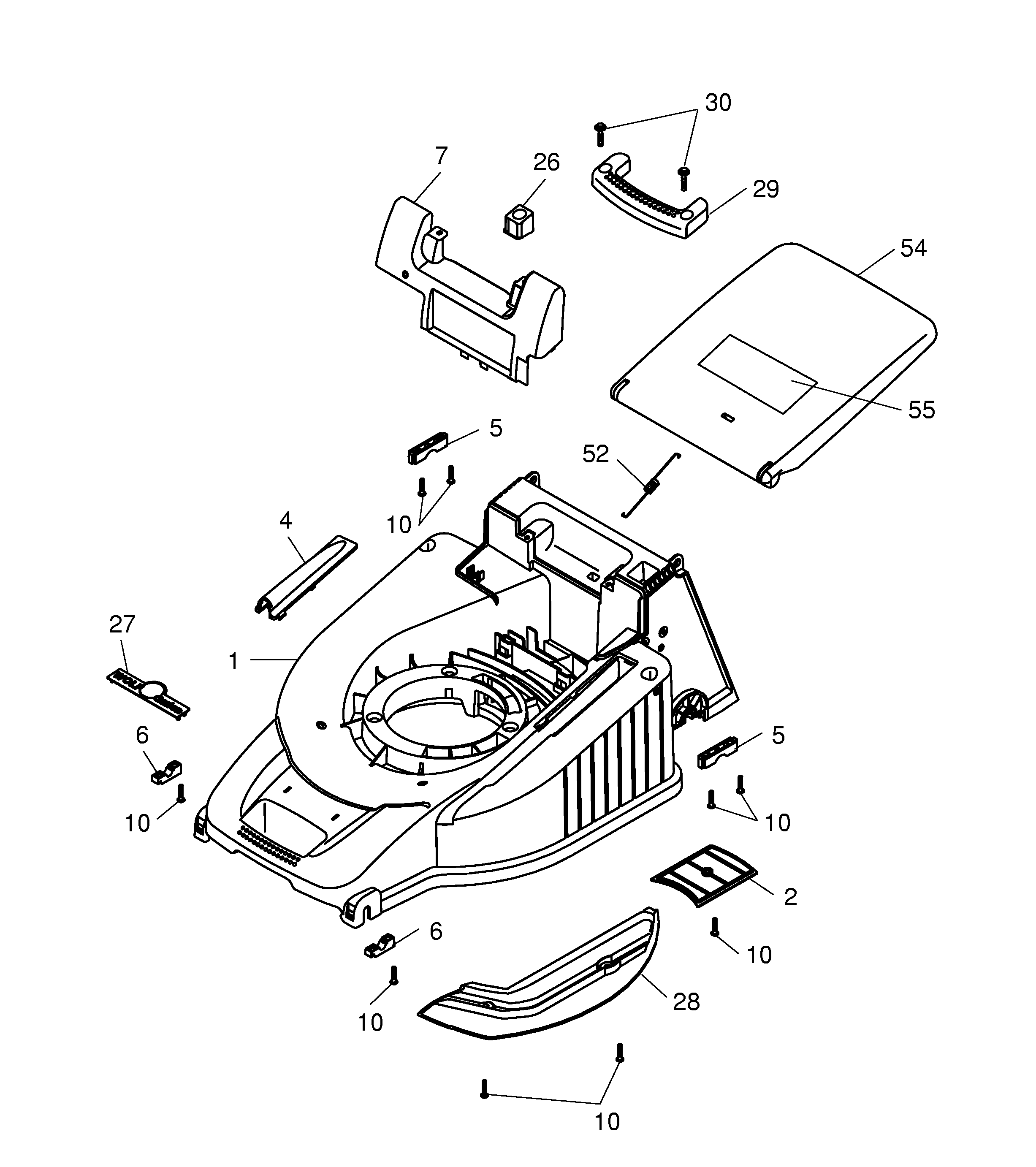

Spare Parts Lists for Wolf Mowers Chassis




spare parts list


pos.decriptionspare part number
1Chassis4001 320
2V-Belt Cover4961 324
4Air conduction4601 315
5Shell, Rear4961 313
6Front Support Shell4961 312
7Chassis Cover4001 310
10Screw0012 631
26Button4961 304
27Wolf-Garten - Label0051 115
28Wind Tunnel Cover4001 311
29Rear Carrying Handle4601 303
30Screw0012 639
52Tension Spring4961 108
54Rear Flap Yellow4620 322
55Safety Label0051 246
