back to
>
Mowers
>
Electro
>
Without drive from 40 cm on
>
series 4
>
4.40 E
>
Chassis

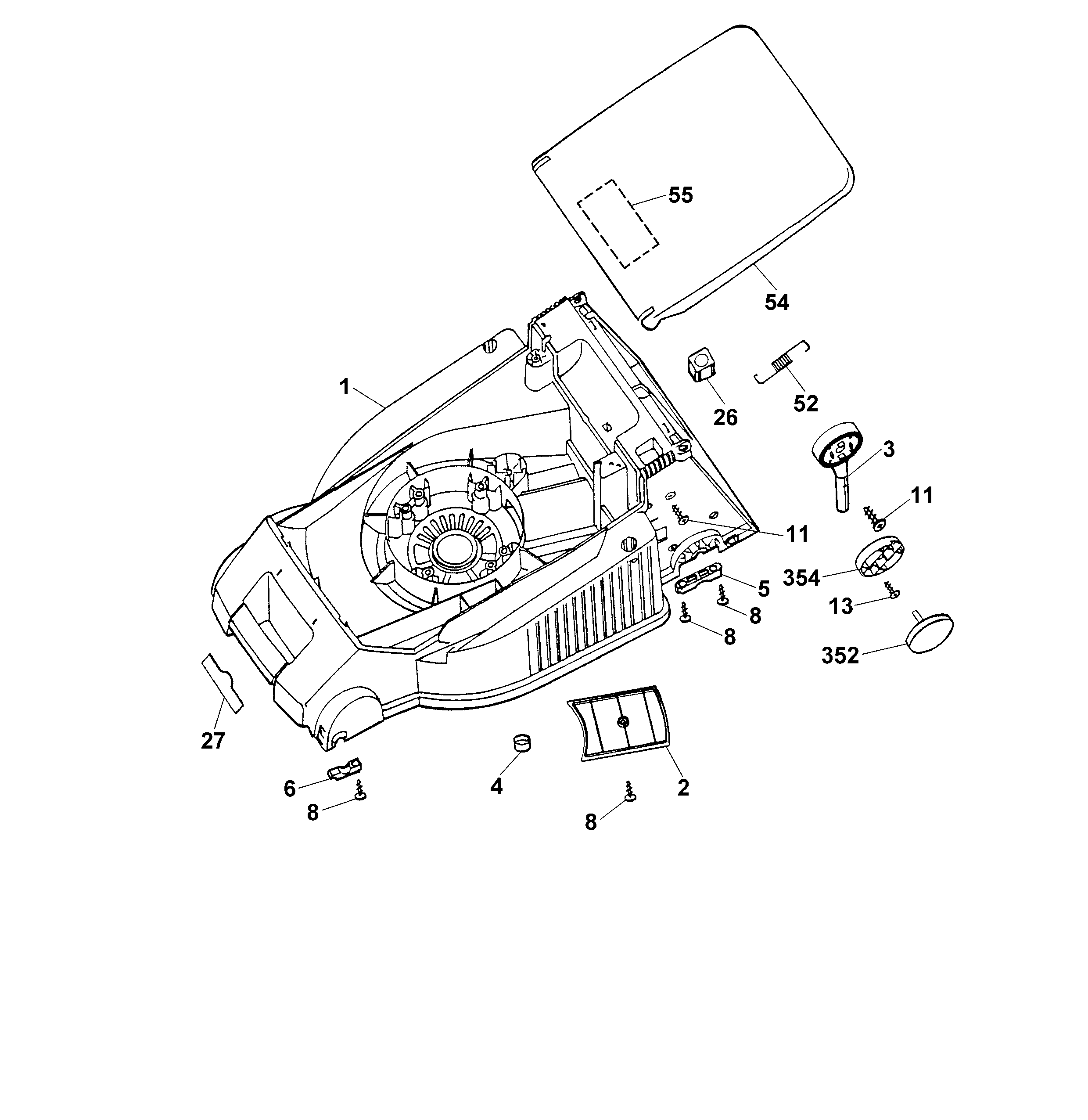

Spare Parts Lists for Wolf Mowers Chassis
pos.
decription
spare part number
1
Chassis
4961 300
2
V-Belt Cover
4961 324
3
Handlebar Holder
4950 030
4
Plug
4961 305
5
Shell, Rear
4961 313
6
Front Support Shell
4961 312
8
Screw
0012 631
11
Screw
0010 931
13
Screw
0010 933
26
Button
4961 304
27
Wolf-Garten - Label
0051 115
52
Tension Spring
4961 106
54
Rear Flap Red
4628 302
55
Safety Label
0051 225
352
Handwheel
4950 010
354
Adjusting Ring
4950 126
