back to
>
Mowers
>
Electro
>
Without drive from 40 cm on
>
Esprit
>
Esprit 40 E
>
Chassis

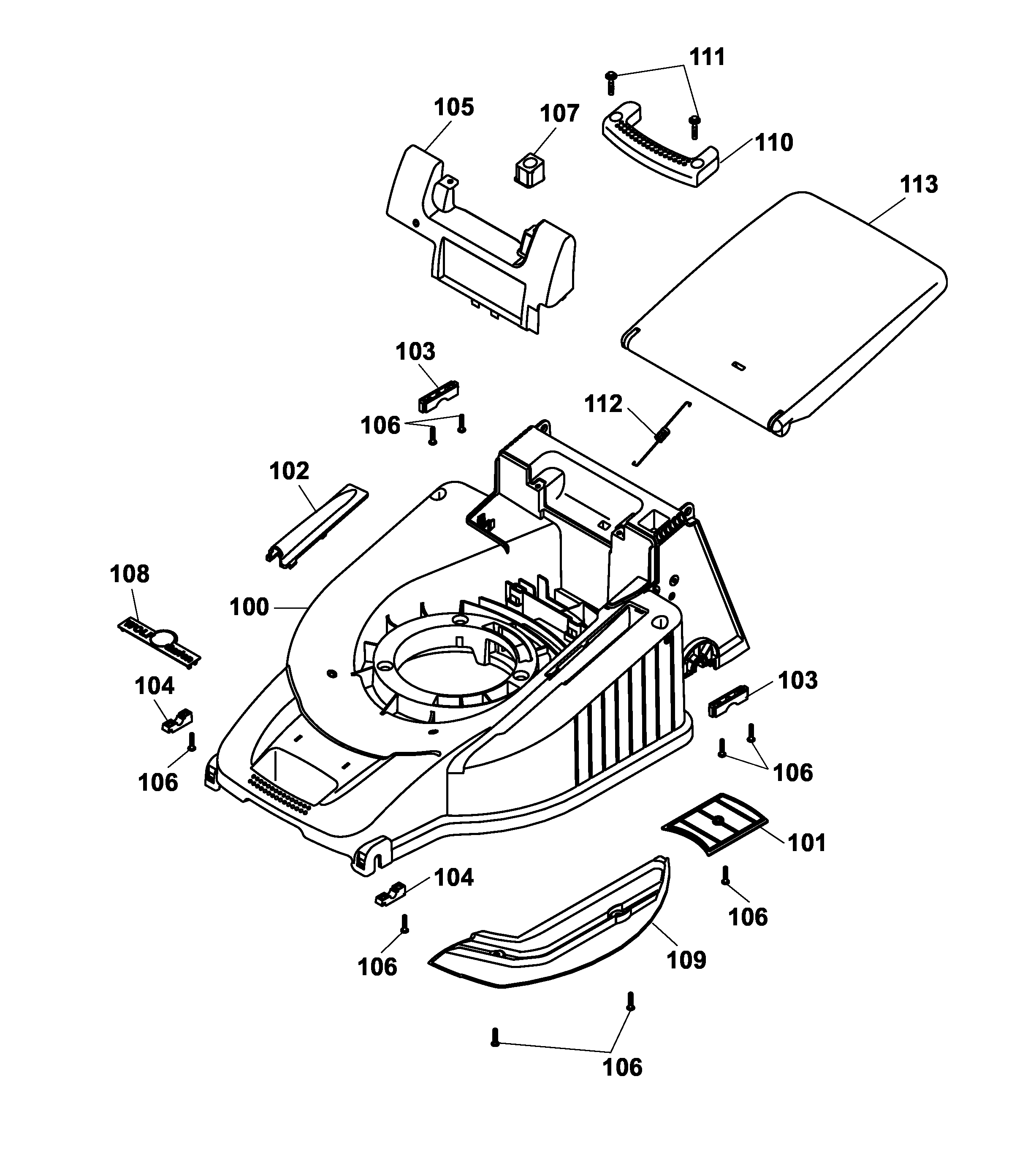

Spare Parts Lists for Wolf Mowers Chassis
pos.
decription
spare part number
100
Chassis
4001 320
101
V-Belt Cover
4961 324
102
Air conduction
4601 315
103
Shell, Rear
4961 313
104
Front Support Shell
4961 312
105
Chassis Cover
4001 310
106
Screw
0012 631
107
Button
4961 304
108
Wolf-Garten - Label
0051 115
109
Wind Tunnel Cover
4001 311
110
Rear Carrying Handle
4601 303
111
Screw
0012 639
112
Tension Spring
4961 108
113
Rear Flap
4628 322
