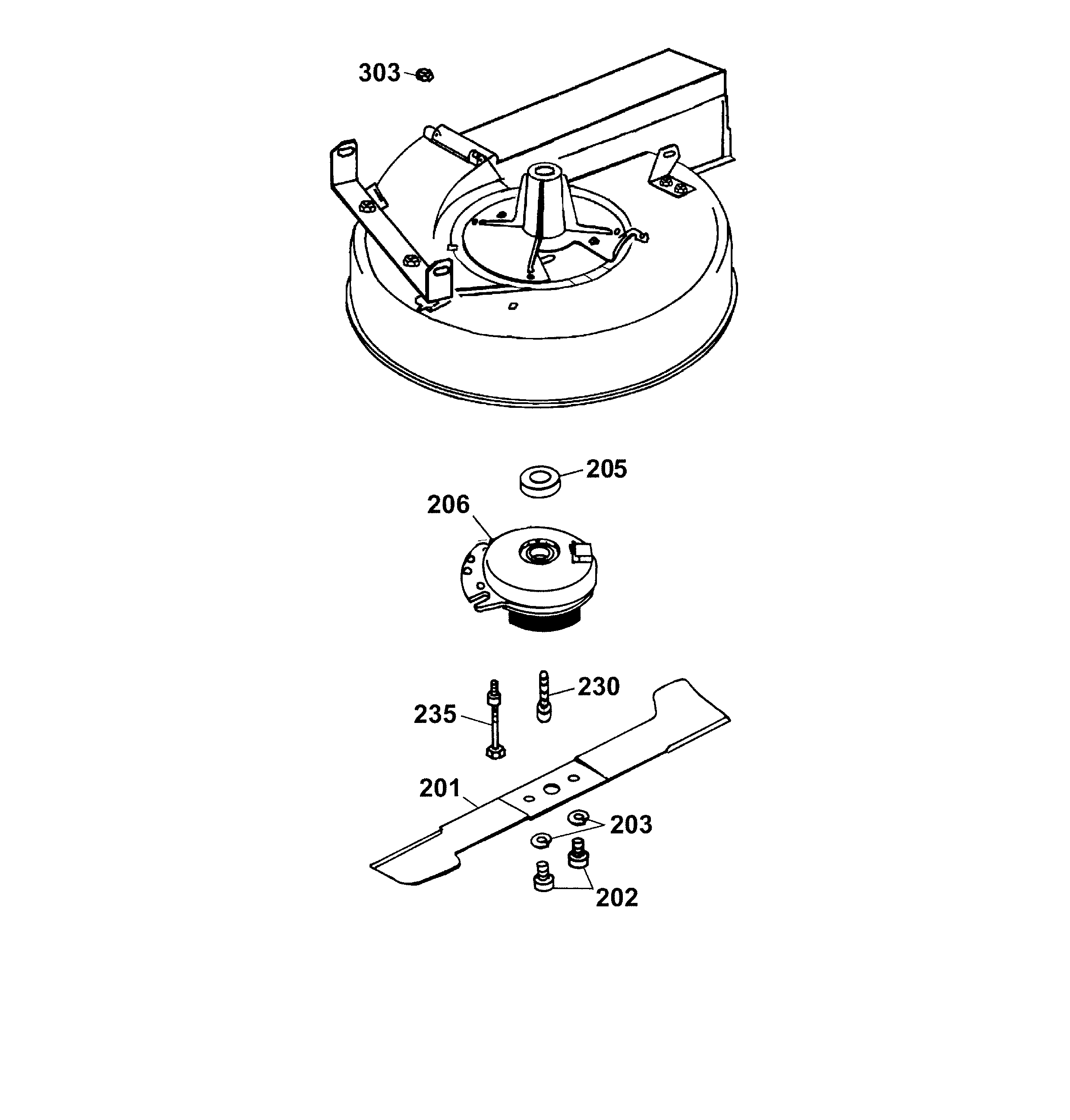

Spare Parts Lists for Wolf Ride-on Mowers Clutch, Cutter bar




spare parts list


pos.decriptionspare part number
201Blade6155 400
202Hex. Screw M10X30 Din 69120010 354
203Washer spring0017 911
205Seal Electromagnetic Blade Brake6995 317
206Electromagnetic clutch1096 050
230Screw 3/8??6150 174
235Bolt6995 120
303Hex. Nut0016 312
