> Mowers > Accu > Without drive > series 6 > 6.42 AC > Cover, lower part case

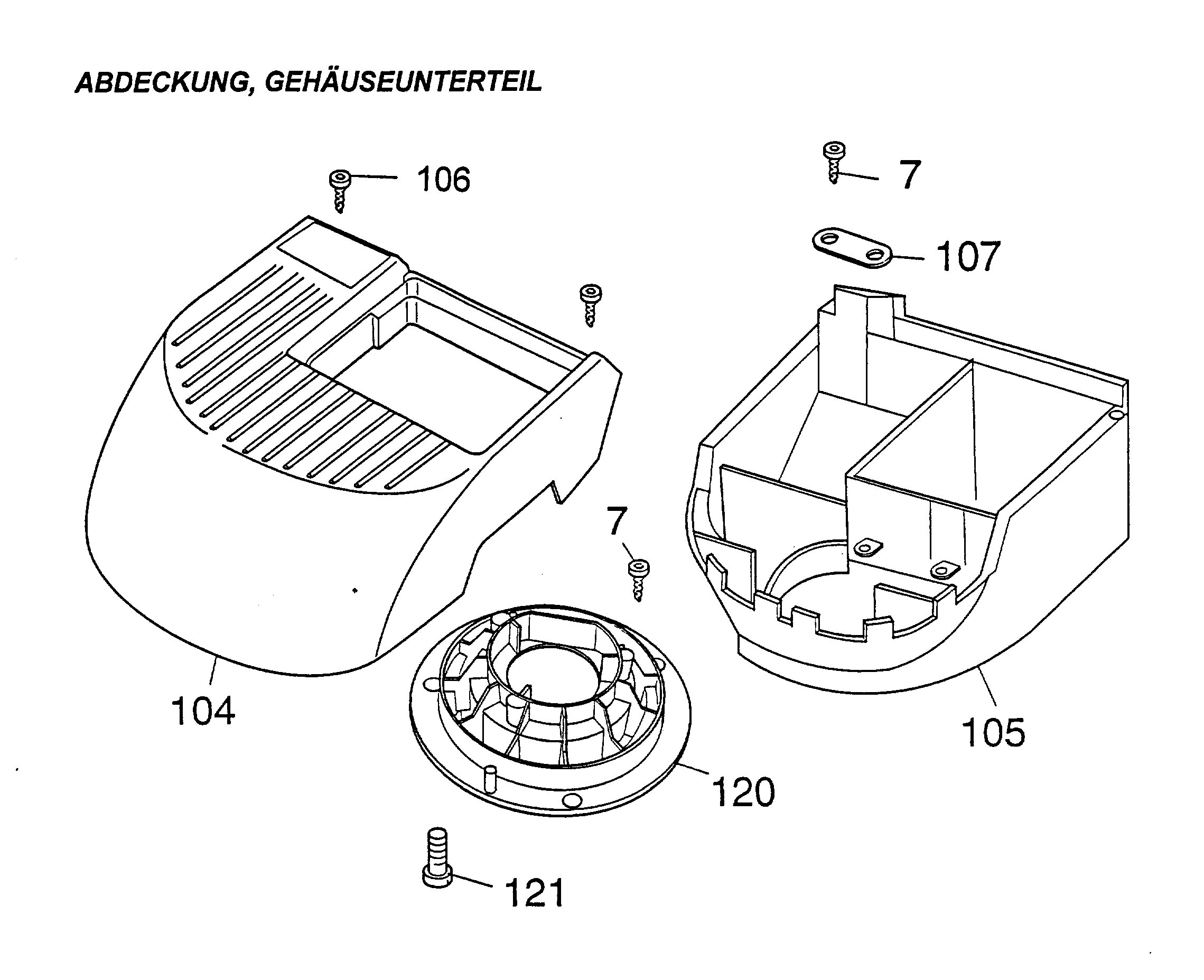

Spare Parts Lists for Wolf Mowers Cover, lower part case




spare parts list


pos.decriptionspare part number
7Screw0015 663
104Cover Yellow4942 301
104Cover Red4943 301
105Motor Housing4942 302
106Screw0015 210
107Clamp-Casing4557 208
120Ring4942 303
121Screw0012 650
***Instruction Manual0054 018
