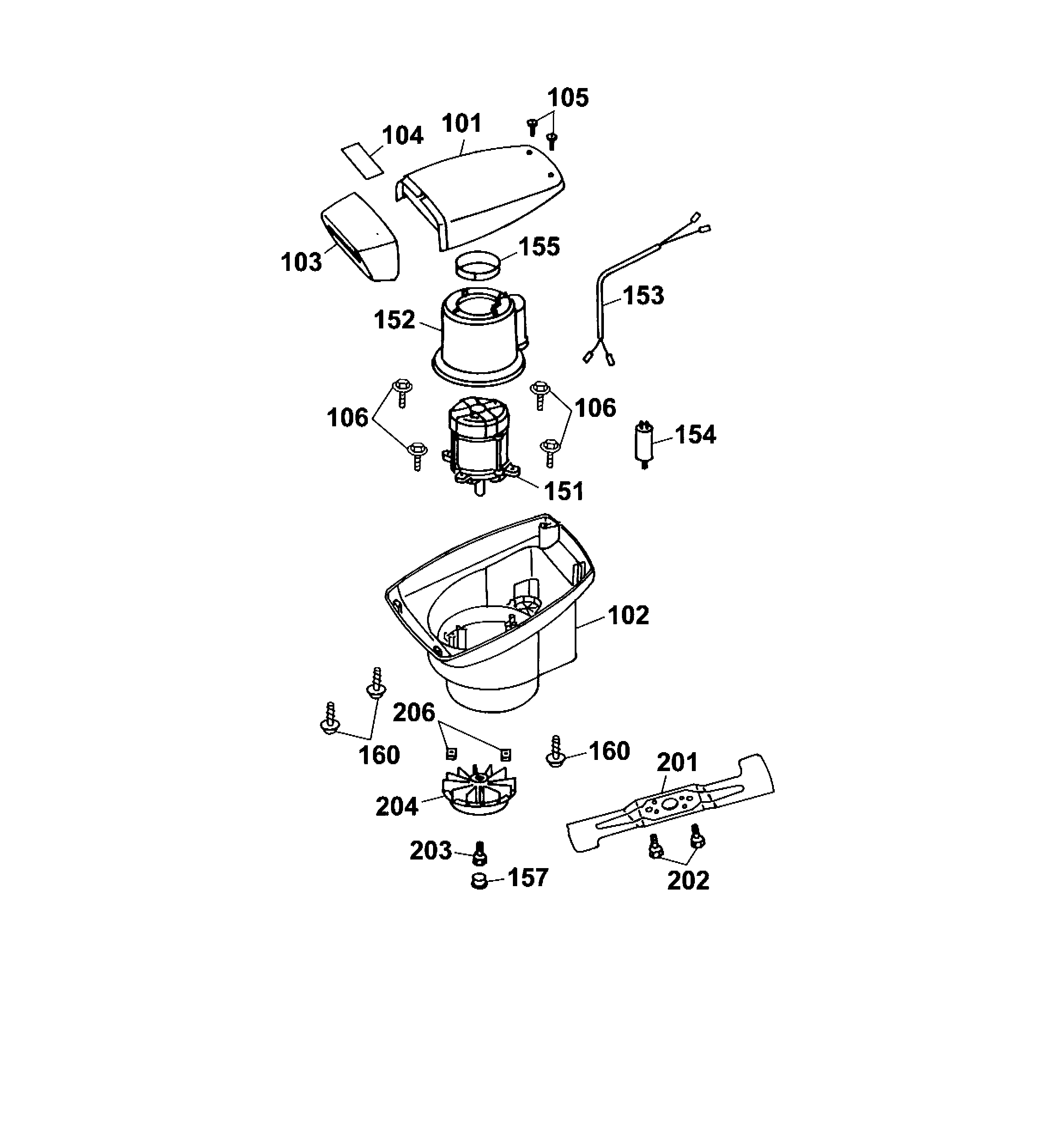

Spare Parts Lists for Wolf Mowers Covering cap, Motor, Blade




spare parts list


pos.decriptionspare part number
101Upper Part4317 301
102Lower Part4620 300
103Front Part4317 302
104Label4028 208
105Screw0012 625
106Screw0012 886
151Motor1140 065
152Air-Conduction4961 306
153Wire Connector3567 214
154Condenser, 20 µF1133 040
155Ring4317 305
157Insert-Grip4317 308
160Screw0012 641
201Blade4001 095
202Screw0010 385
203Screw0010 403
204Fan Complete4317 016
206Nut0016 409
