Spare Parts Lists for Wolf Petrol engines Crankshaft, Piston, Con-rod, Valves

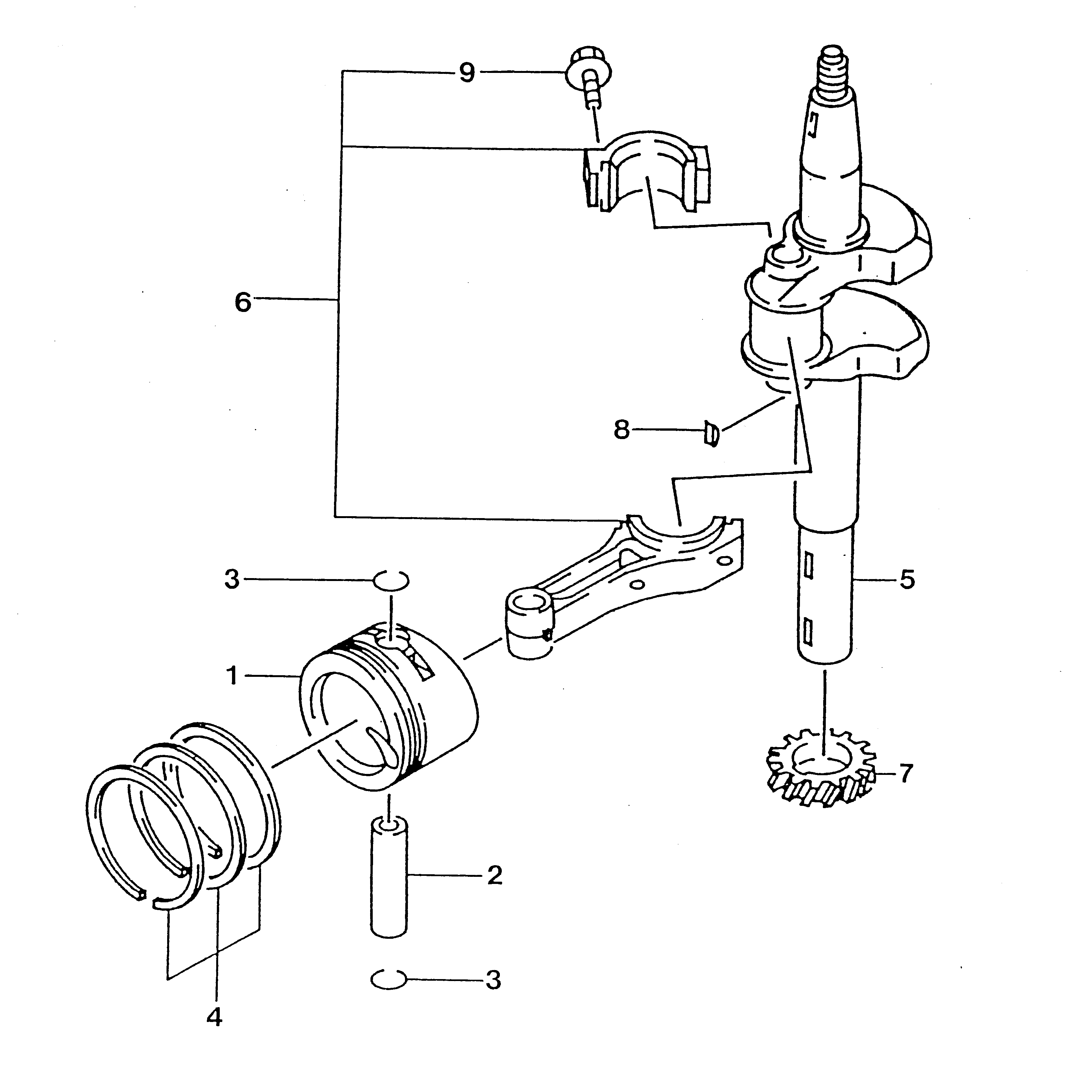

spare parts list 1

spare parts list 2

spare parts list

pos.	decription	spare part number
1	Piston	2090 118
2	Bolt	2090 122
3	Retainer-E Ring	2090 123
4	Piston Ring	2096 512
5	Crankshaft	2096 518
6	Rod-Assy-Connecting	2090 051
7	Gear-Timing	2090 128
8	Key-Pulley	2090 129
9	Screw	2090 130

spare parts list

pos.	decription	spare part number
10	Intake Valve	2090 131
11	Exhaust Valve	2090 132
12	Valve	2096 510
13	Valve-Spring	2090 250
14	Lever	2096 511
15	Valve Lifter	2090 136
16	Rod-Push	2090 137
17	Guiding	2090 138
18	Screw	2090 139
19	Nut	2090 140
20	Nut	2090 141
21	Camshaft	2090 063
22	Pin-Counterweight	2090 142
24	Spring	2090 144
25	Thrust Plate	2096 536
