> Petrol engines > Tecumseh > Centura > Centura 65 SV > Engine

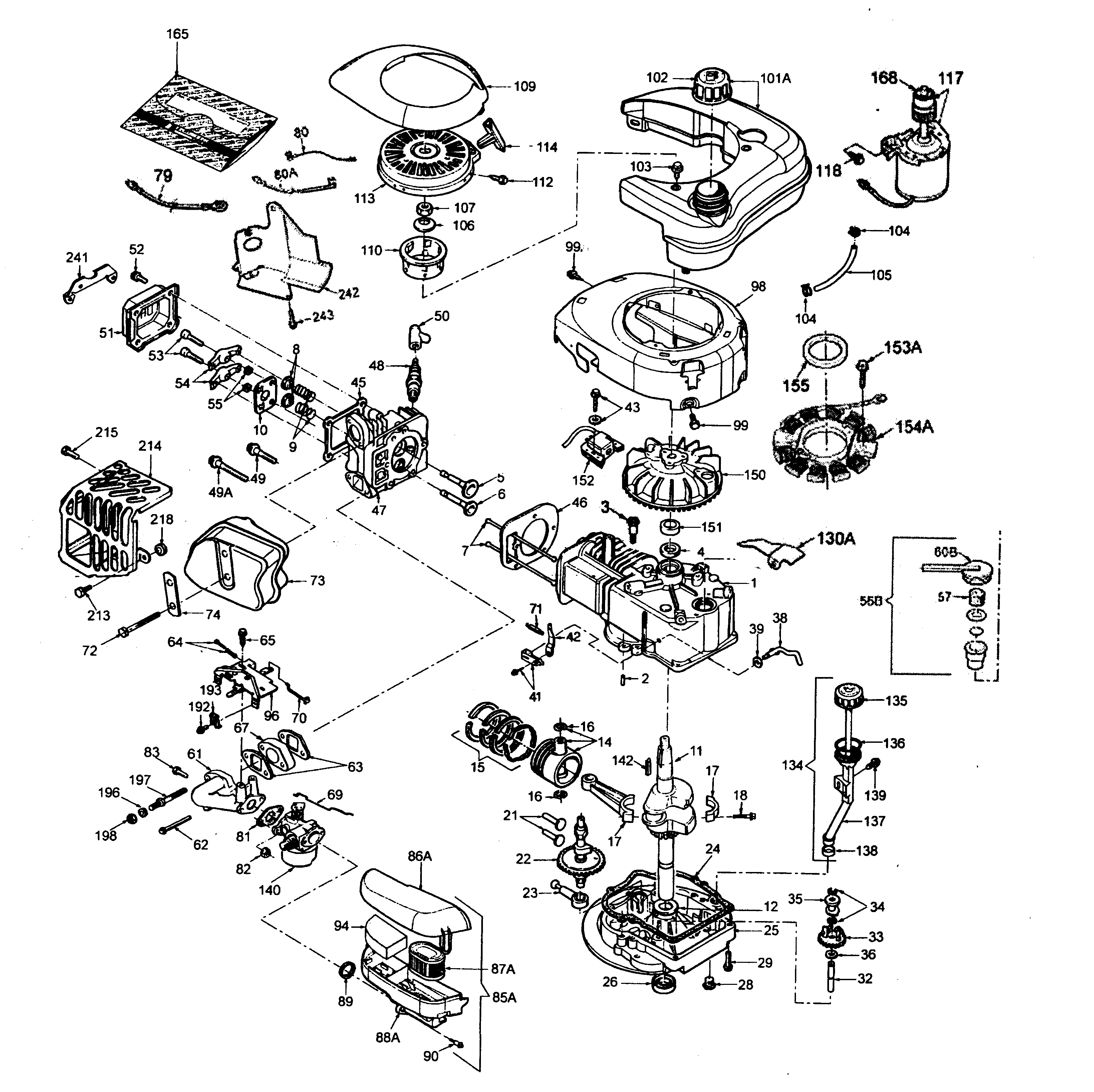

Spare Parts Lists for Wolf Petrol engines Engine




spare parts list


pos.decriptionspare part number
1Cylinder-Assy. Incl.-2,42038 121
2Dowel Pin2031 106
3Stud Bolt2034 100
4Seal-Governor Shaft1005 202
5Intake Valve1032 203
6Exhaust Valve2024 059
7Rod2034 102
8Valve1005 209
9Valve-Spring1038 205
10Routing2085 209
11Crankshaft2038 122
12Thrust Bearing2025 208
14Piston + Bolt2034 103
15Piston Ring Set2034 106
16Retainer-E Ring1032 103
17Ens.Pielle Incl.-182028 202
18Screw2036 201
21Valve Lifter2085 211
22Camshaft2036 204
23Pump Oil2026 206
24Flange Seal2034 109
25Flange2034 110
26Oil Seal1005 217
28Insert-Grip2034 111
29Screw2034 112
29Screw1038 209
32Govenor Shaft1032 225
33Governor Gear1032 230
34Washer Spring1032 231
35Governor Spool1032 232
36Washer2026 205
38Govenor Shaft2026 208
39Washer1032 236
41Lever2031 117
42Lever2034 113
43Screw2027 305
45Seal2085 416
46Gasket-Cylinder Head2034 114
47Head-Cylinder2034 115
48Plug-Spark2038 123
49Screw2085 102
49AScrew2034 117
50Spark Plug Socket2085 301
51Cover-Rocker2085 103
52Screw2034 118
53Screw2085 419
54Arm-Rocker2085 213
55Nut2085 307
56BBreather2034 119
57Insert2085 308
60BBreather Tube2034 120
61Inlet Pipe2034 121
62Screw 1/4-20 (L=70mm)2038 124
63Seal2034 122
64Adjusting Screw Set2037 103
65Screw2085 310
67Adapter-Spring2034 123
69Joint2085 214
70Joint2085 215
71Pin-Counterweight2031 120
72Screw2030 200
73Muffler2034 124
74Plate-Carburetor2034 125
79Cable2085 303
80Cable2085 316
80AGround Wire (to connector))2038 114
81Seal1037 400
82Nut2030 401
83Screw2034 126
84Screw2031 203
85AAir Filter Assy. (Inc.-86,87,88,89,90,91)2038 306
86ACover-Air Cleaner2038 300
87AFilter Element2038 301
88ARetainer-Air Filter2038 302
89Filter Base Gasket2037 303
90Screw2037 104
94Filter.Pre Cleaner2038 307
95Seal2027 403
96Control Element2087 410
98Schwungradgehäuse2038 308
99Screw2037 108
101APetrol Tank2038 115
102Fuel Cap2085 500
103Screw2026 215
104Clip2030 501
105Line-Fuel2026 500
106Washer2026 606
107Nut2026 607
109Ring2037 106
110Starter Cup2085 613
112Screw2085 614
113Starter-Rewind2038 125
114Handle2030 601
117Starter-Rewind2085 063
118Screw1032 315
130AArm2034 128
134Oil Filler Assy.2038 110
135Oil Dipstick Gasket2038 111
136Seal-Governor Shaft2085 206
137Tube-Dipstick2038 112
138Seal2027 208
139Screw2026 212
140Carburetor2038 126
142Flywheel Pin2034 130
150Flywheel2029 303
151Spacer Block2085 304
152Armature-Magneto2034 014
153AScrew1006 209
154AAlternator2034 015
155Retainer-E Ring2034 132
165Seal Set2034 016
168Gear-Timing2034 133
196Spacer Block2038 116
197Stud Bolt2034 135
198Nut2085 403
209Shielding-Cable2034 136
210Screw2026 215
213Screw2085 404
214Muffler Guard2038 117
215Screw2085 320
218Washer2038 119
241Arm2038 120
242Muffler Guard2034 306
243Screw2085 310
280Oil Seal2031 215
