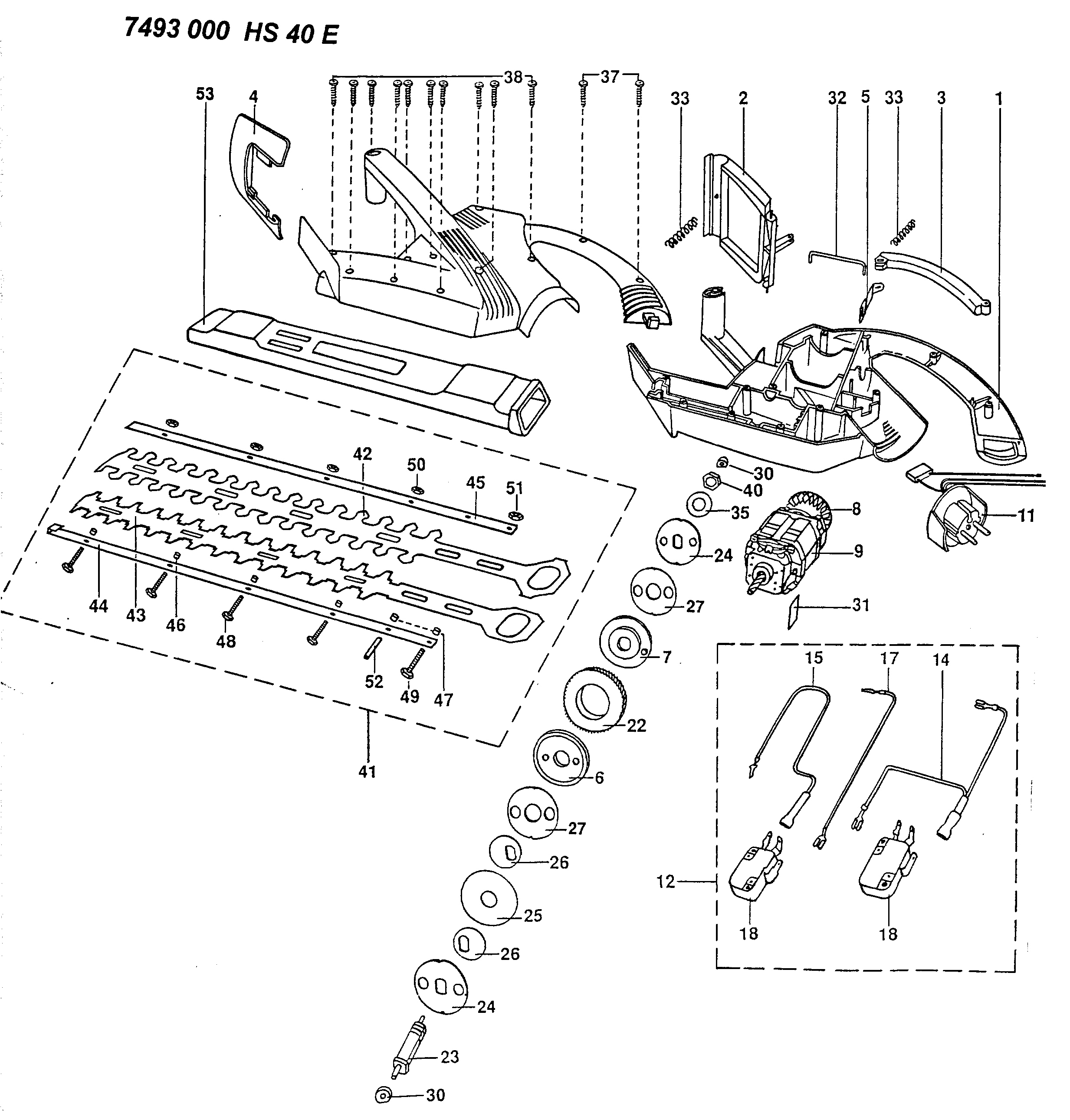

Spare Parts Lists for Wolf Hedge-shears HS 40 E
pos.
decription
spare part number
1
Case
7493 308
2
Switch Handle
7493 300
3
Switch Bar
7493 133
4
Guard Hs40E
7493 306
5
Key
7493 118
6
Insulating Disk
7493 119
7
Isolating disk
7493 120
8
Fan-Flywheel
7493 304
9
Motor Hs40E
7493 060
11
Insert
7493 101
12
Switch & Lead
7493 020
14
Leaflet
7493 123
15
Lead
7493 132
17
Leaflet
7493 131
18
Switch
7493 124
22
Driven Gear I4 P00038119
7493 112
23
Kit-Choke Shaft
7493 111
24
Driver
7493 113
25
Washer
7493 114
26
Eccentric
7493 115
27
Friction Washer
7493 125
30
Bush
7493 108
31
Panel
7493 116
32
Shackle
7493 117
33
Compression Spring
7493 110
35
Belleville Spring Washer
7493 107
37
Screw 4X16
7491 112
38
Screw 4 X 20 Din 7981
7491 111
40
Nut
7493 105
41
Blade Set
7493 041
42
Lead
7493 132
43
Blade
7493 106
44
Guide Rail
7493 121
45
Guide Rail
7493 122
46
Distance Ring
7493 102
47
Distance Ring
7493 103
48
Screw
7493 100
49
Screw
7493 104
50
Hex. Nut M4
0016 209
51
Nut
0016 211
52
Groove Pin
7493 109
53
Sheath Hs43E
7490 307
