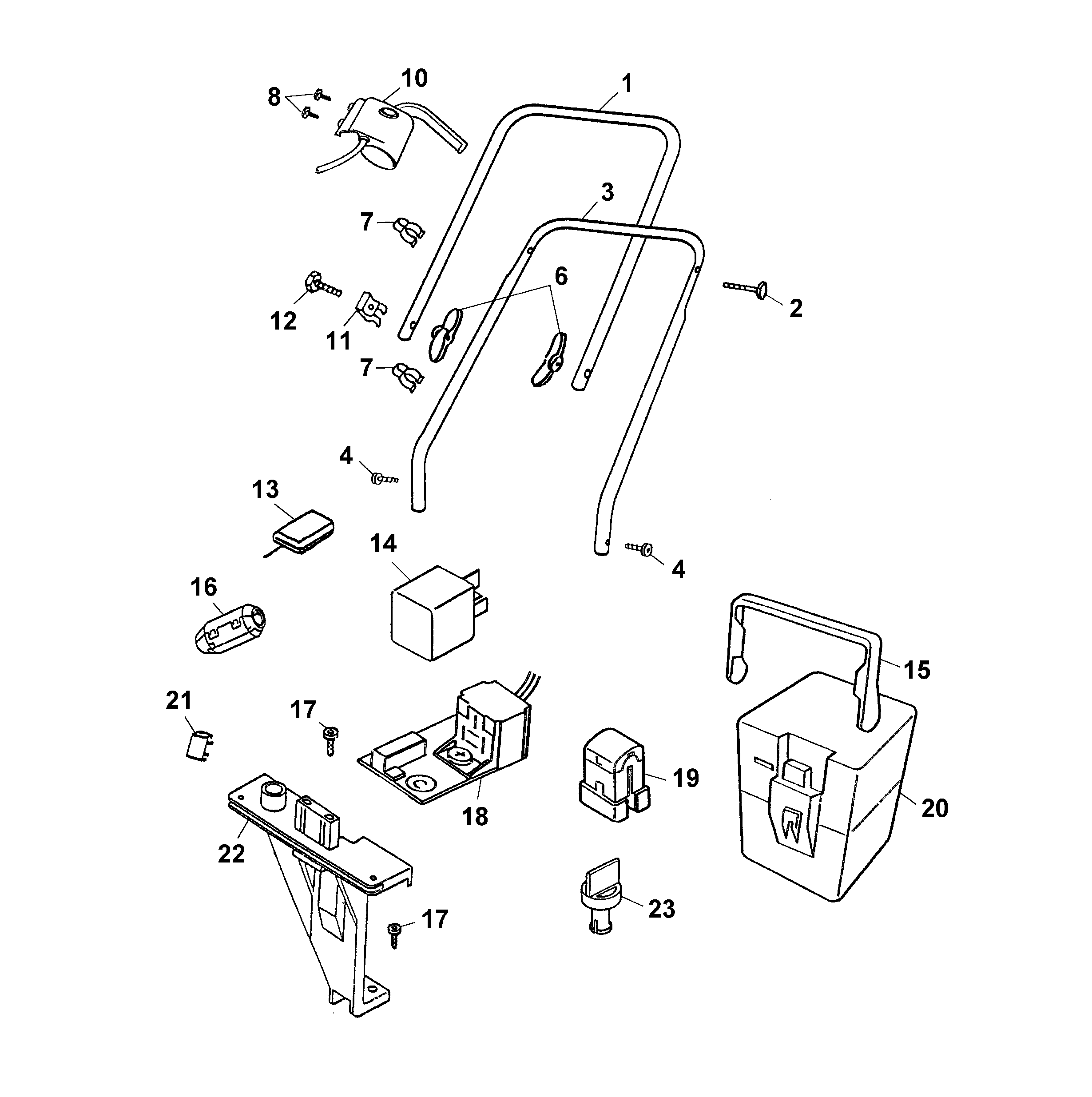

Spare Parts Lists for Wolf Mowers Handlebar, Switch, Battery

pos.	decription	spare part number
1	Upper Handlebar	4901 020
2	Connecting Screw	4901 101
3	Lower Handlebar	4901 120
4	Screw	0015 660
6	Wingnut	0016 717
7	Cable Clamp	4950 307
8	Screw	0012 888
10	Switch-Key	4911 051
11	bend protection	4950 308
12	Screw	0010 338
13	Battery Charger (6.42Bai)	4911 067
***	Boost Charger Slg 300	4911 072
14	Relay K3 200954307	4933 114
15	Battery Handle	4911 318
16	Ferrite	4933 105
17	Screw	0012 625
18	Cable Harness	4911 054
19	Connector	4911 070
20	Exchange Battery Aw120A	4911 075
21	Safety Switch	4933 109
22	Support	4911 312
23	Battery Fixing	4911 313
***	Instruction Manual	0054 304
