Spare Parts Lists for Wolf Mowers Handlebar, Switch

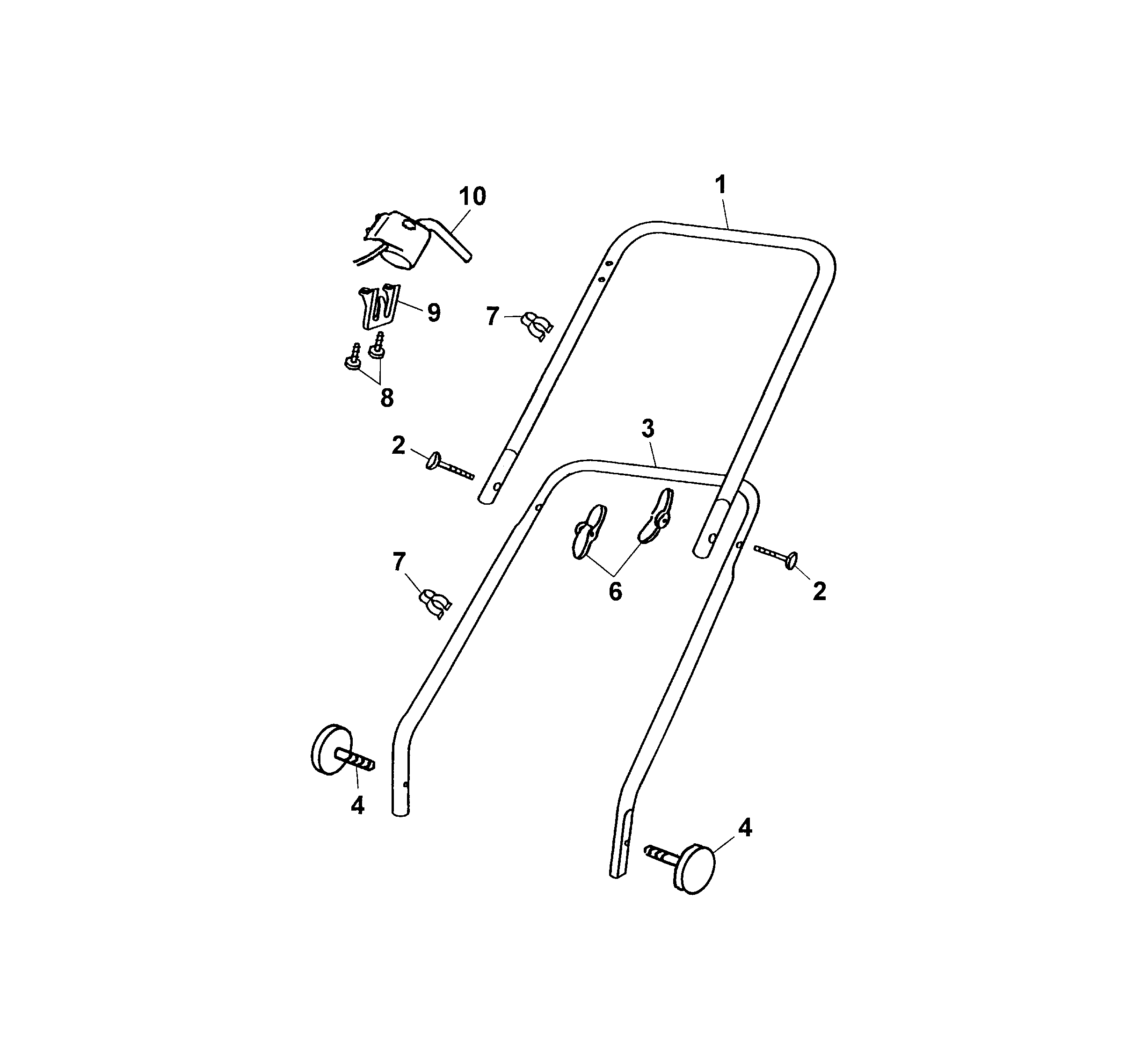

spare parts list


pos.decriptionspare part number
1Upper Handlebar4906 020
2Connecting Screw4901 101
3Lower Handlebar4912 115
4Handwheel4950 010
6Wingnut0016 717
7Cable Clamp4950 307
8Screw0012 883
9Strain Relief3620 325
10Switch-Key3630 061
***Instruction Manual0054 302
