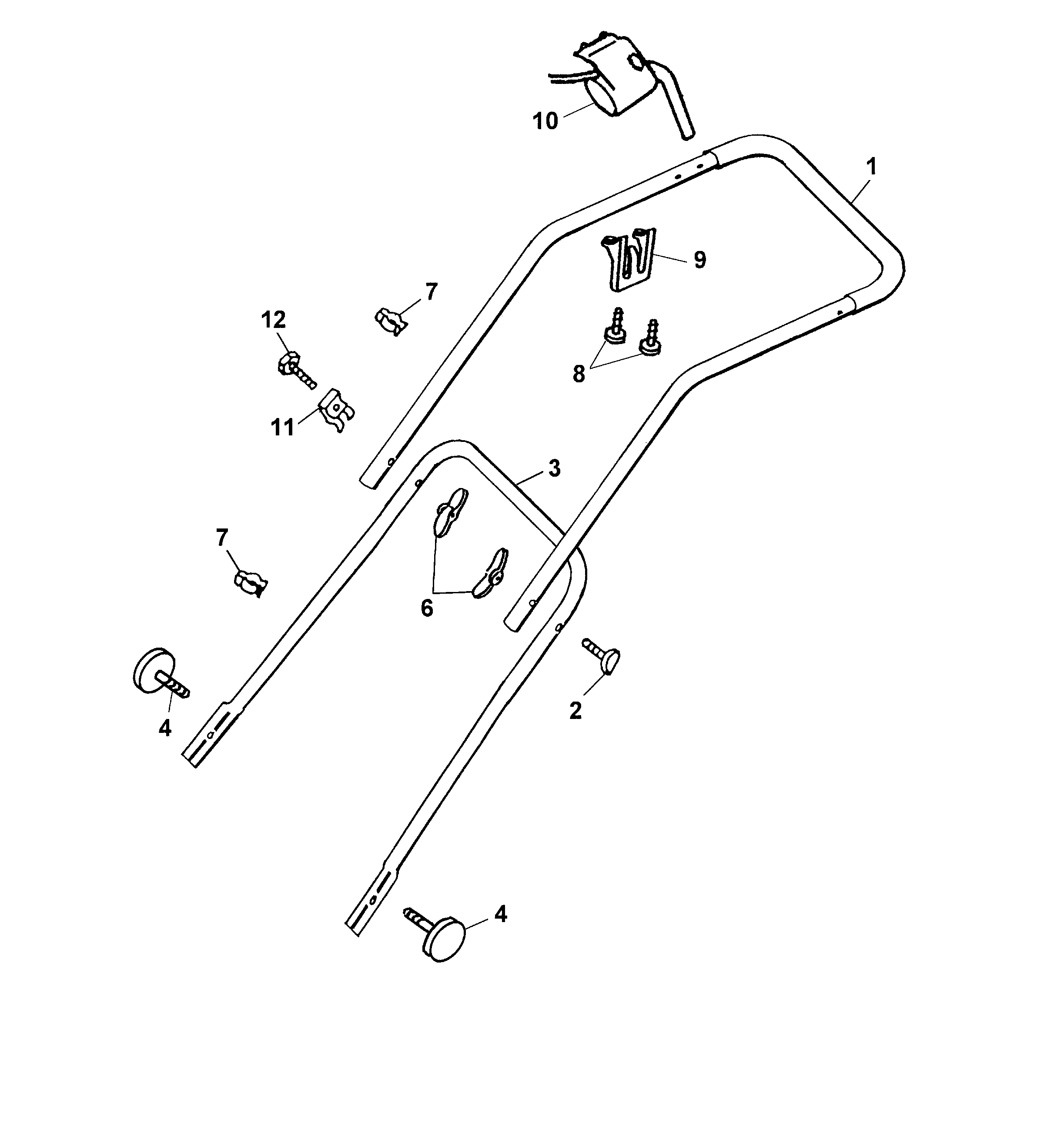

Spare Parts Lists for Wolf Mowers Handlebar, Switch




spare parts list


pos.decriptionspare part number
1Upper Handlebar4906 020
2Connecting Screw4901 101
3Lower Handlebar4906 132
4Handwheel4950 010
6Wingnut0016 717
7Cable Clamp4950 307
8Screw0012 883
9Strain Relief3620 325
10Switch-Key4906 061
11bend protection4950 308
12Screw0010 338
***Instruction Manual0054 354
