> Mowers > Electro > Without drive from 40 cm on > Concept > Concept 43 E > Handlebar, Switch

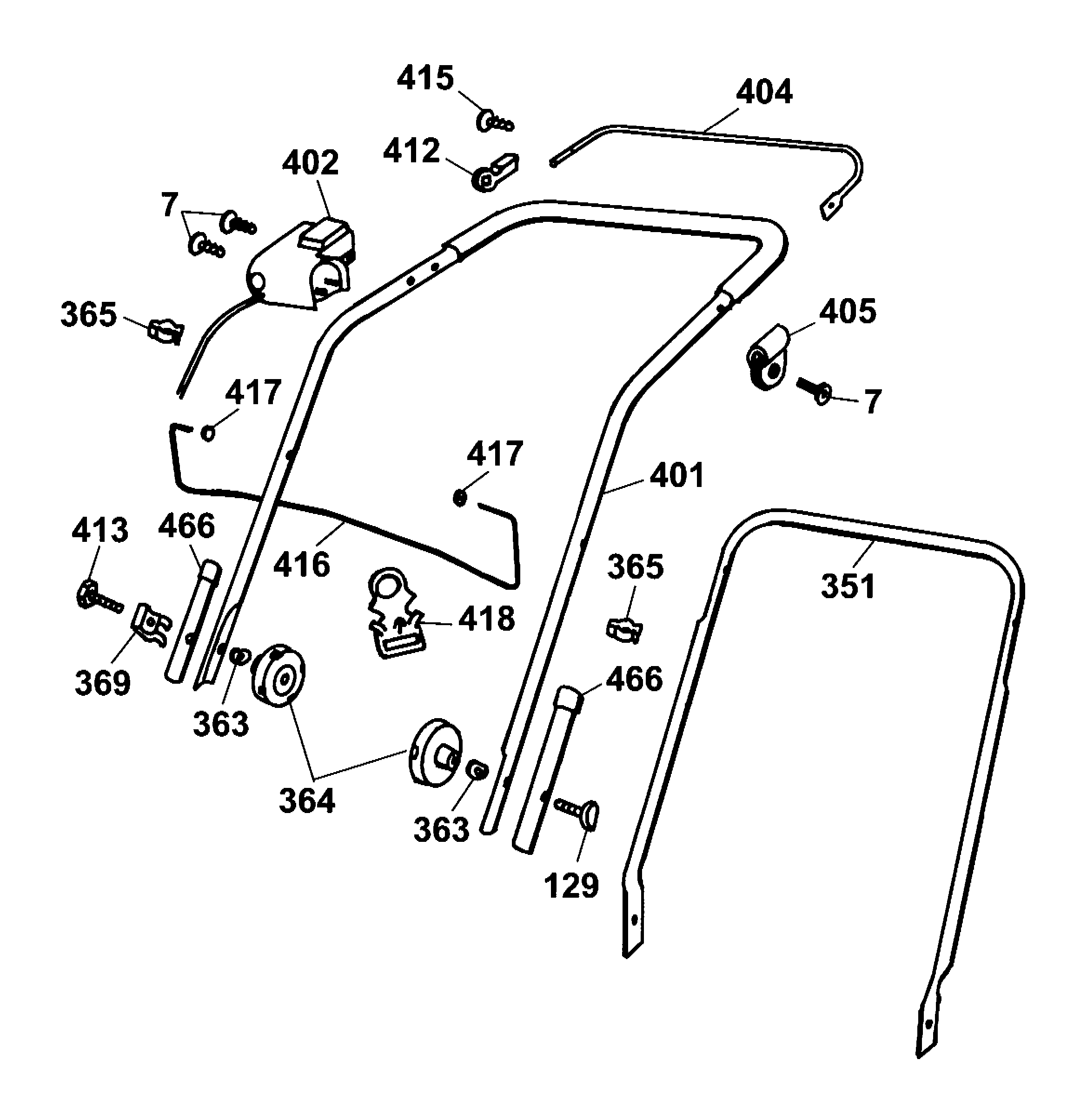

Spare Parts Lists for Wolf Mowers Handlebar, Switch


spare parts list 1
spare parts list 2


spare parts list


pos.decriptionspare part number
7Screw0012 625
spare parts list


pos.decriptionspare part number
129Connecting Screw4901 101
351Lower Handlebar4317 120
363Hollow Disk0017 275
364Handwheel4936 022
365Cable Clamp4950 307
369bend protection4950 308
401Upper Handlebar4945 037
402Switch-Key4950 051
404Bracket Bracket4317 014
405Clamp-Casing4935 105
412Bushing4940 105
413Screw0010 338
415Screw0015 652
416Shackle3585 100
417Clip3585 503
418Cable Guide4936 323
466Closing Cap6340 125
