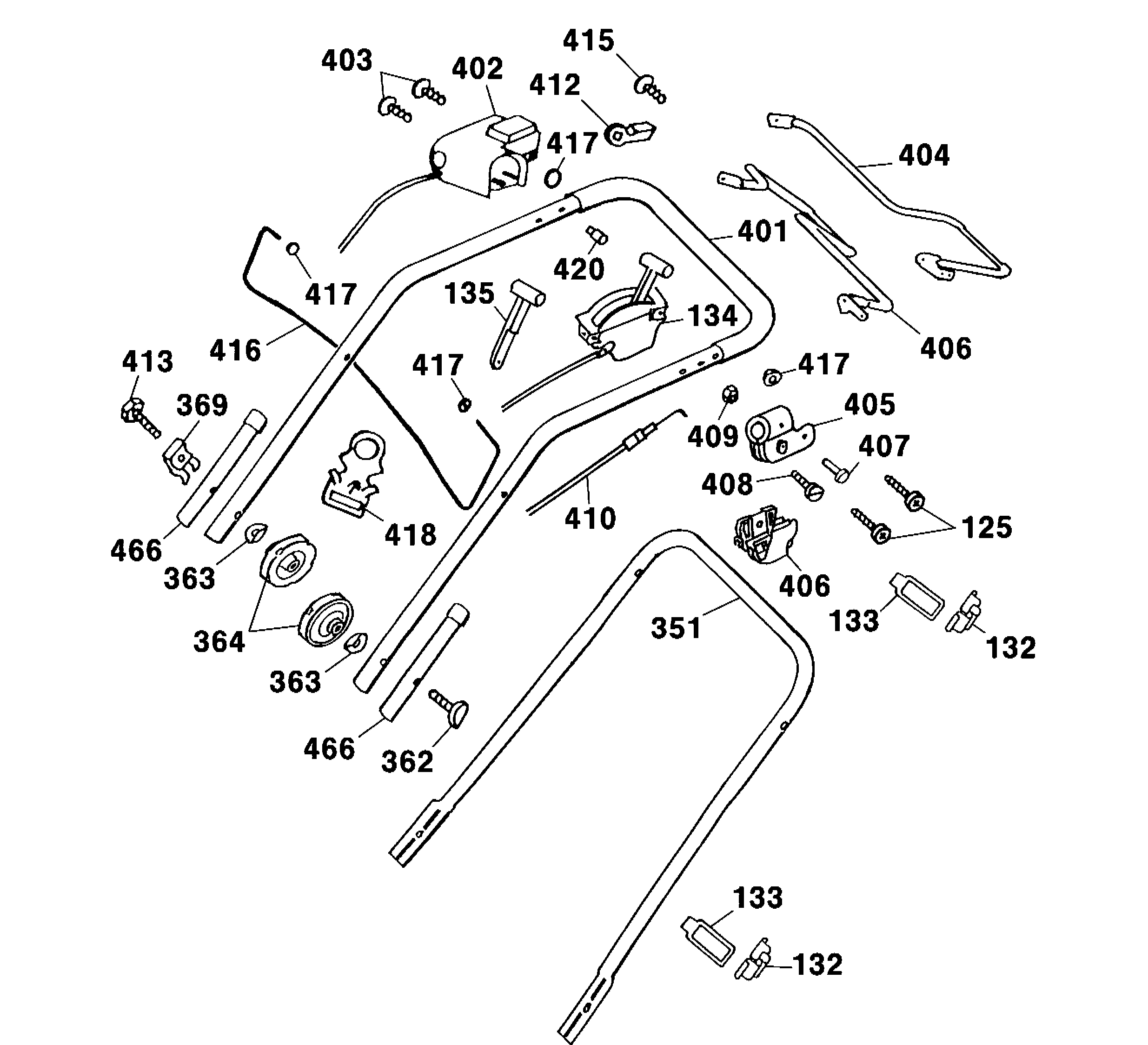

Spare Parts Lists for Wolf Mowers Handlebar, Switch

pos.	decription	spare part number
125	Screw	0012 886
132	Clip	6340 312
133	Strap	6340 314
134	Case Compl. With Bowden Wire, 2-Gear	4015 061
***	bowden wire 2-gear	4015 057
***	Case, Right	6450 325
***	Case left	6450 326
135	Gear Lever	4011 040
351	Lower Handlebar	4628 120
362	Connecting Screw	4901 101
363	Hollow Disk	0017 275
364	Handwheel	4936 022
369	bend protection	4950 308
401	Upper Handlebar	4029 026
402	Switch	4906 051
402	Switch Switzerland Only	4906 053
403	Screw	0012 625
404	Gear Lever	4318 010
405	Clamp-Casing	4720 105
406	Lever	4029 035
407	Bolt	0018 107
408	Screw	0012 211
409	Nut	0016 641
410	Bowden Wire Driving	4015 055
412	Bushing	4940 105
413	Screw	0010 338
415	Screw	0015 820
416	Shackle	3585 100
417	Clip	3585 503
418	Cable Guide	4936 323
420	Bearing Bolt	4920 208
466	Closing Cap	6340 125
***	Instruction Manual	0054 168
***	Poly Bag With Operator Instr.	4028 025
