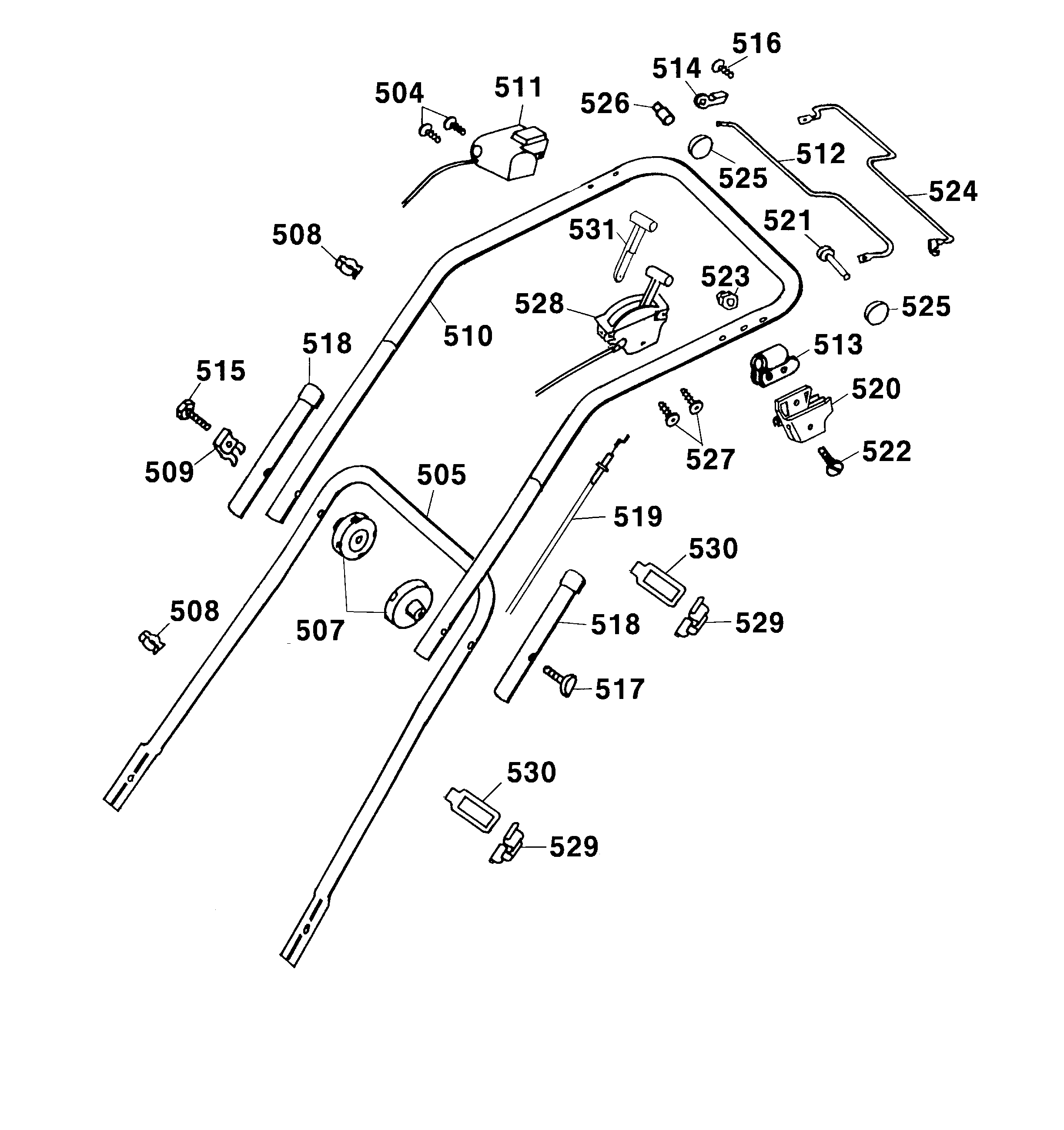

Spare Parts Lists for Wolf Mowers Handlebar, Switch

pos.	decription	spare part number
504	Screw	0012 625
505	Lower Handlebar	4011 122
507	Handwheel	4936 022
508	Cable Clamp	4950 307
509	bend protection	4950 308
510	Upper Handlebar	4045 026
511	Switch-Key	4026 051
512	Gear Lever	4318 010
513	Clamp-Casing	4720 105
514	Bushing	4940 105
515	Screw	0010 338
516	Screw	0015 820
517	Connecting Screw	4901 101
518	Closing Cap	6340 125
519	Bowden Wire Driving	4015 055
520	Double Support	4015 306
521	Bolt	0018 107
522	Screw	0012 211
523	Nut	0016 641
524	Lever	4605 102
525	Clip	3585 503
526	Bearing Bolt	4920 208
527	Screw	0012 886
528	Case Compl. With Bowden Wire, 2-Gear	4015 061
***	Case, Right	6450 325
***	Case left	6450 326
529	Clip	6340 312
530	Strap	6340 314
531	Gear Lever	4011 040
***	Instruction Manual	0054 379
