Esprit 46 EA
>
Handlebar, Switch

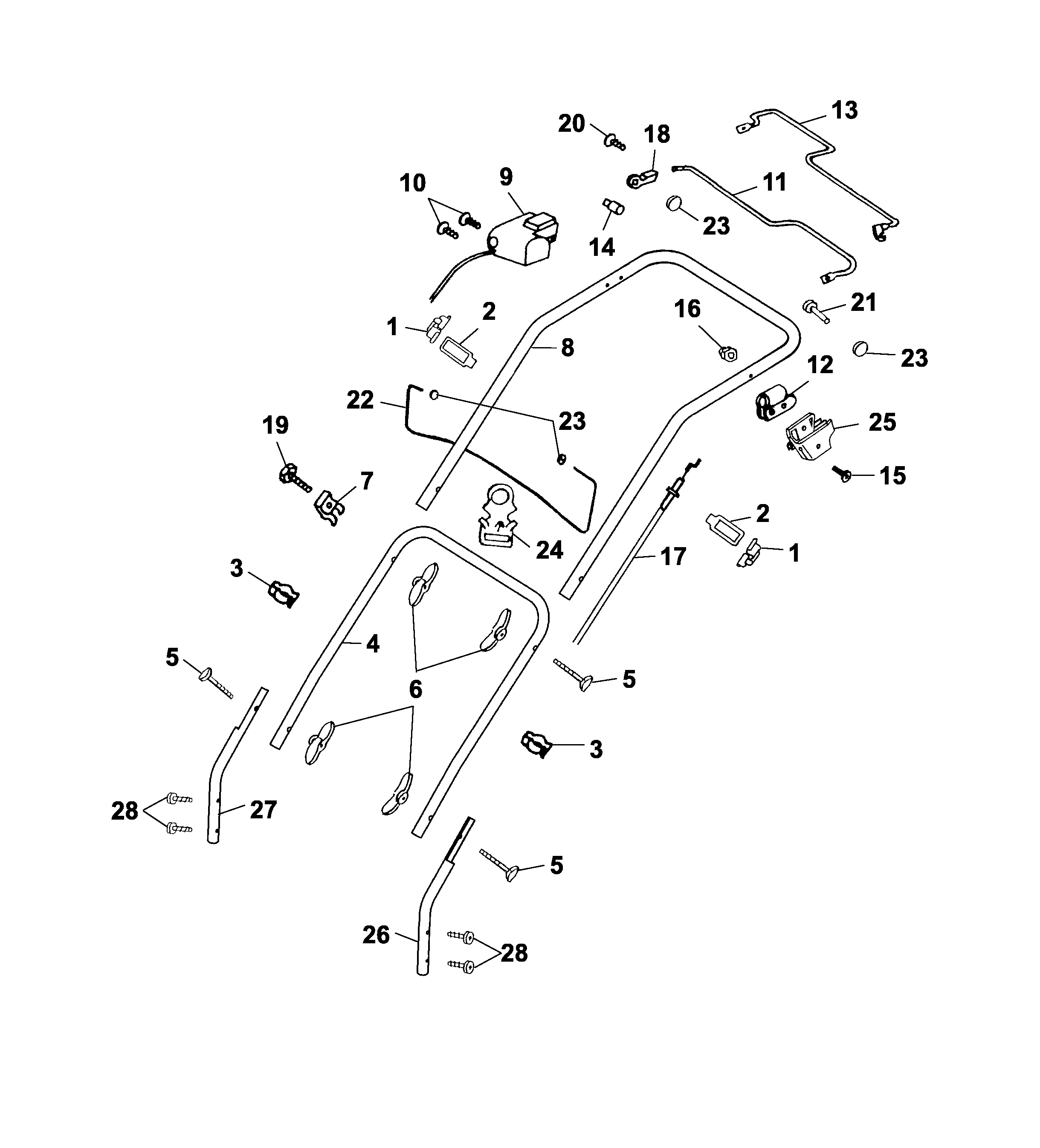

Spare Parts Lists for Wolf Mowers Handlebar, Switch
pos.
decription
spare part number
1
Clip
6340 312
2
Strap
6340 314
3
Cable Clamp
4950 307
4
Lower Handlebar
4601 132
5
Connecting Screw
4901 101
6
Wingnut
0016 723
7
bend protection
4950 308
8
Upper Handlebar
4625 021
9
Switch Switzerland Only
4912 063
10
Screw
0012 625
11
Gear Lever
4318 010
12
Clamp-Casing
4720 105
13
Lever
4029 035
14
Bolt
0018 107
15
Screw
0012 211
16
Nut
0016 641
17
Bowden Wire Coupler
4005 055
18
Bushing
4940 105
19
Screw
0010 338
20
Screw
0015 820
21
Bearing Bolt
4920 208
22
Shackle
3585 100
23
Clip
3585 503
24
Cable Guide
4936 323
25
Double Support
4015 306
26
Pipe, Left
4028 125
27
Pipe, Right
4028 127
28
Screw
0015 660
***
Instruction Manual
0054 411
