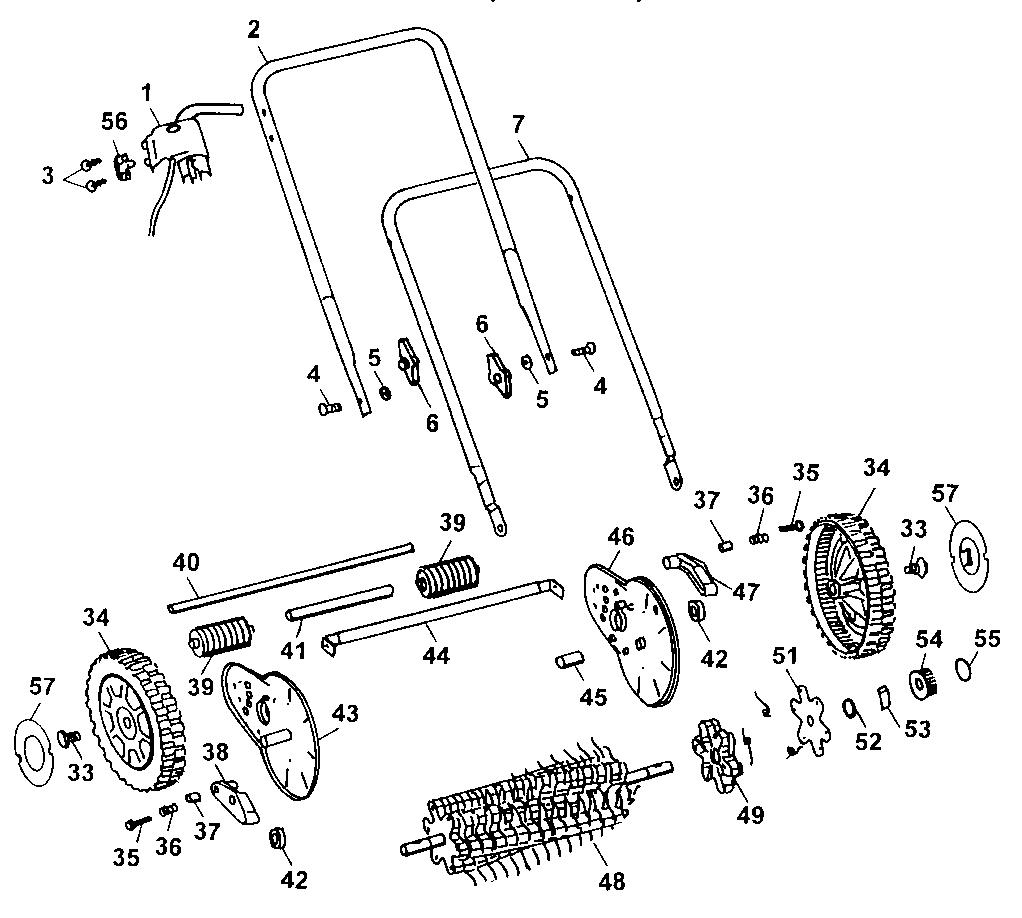

Spare Parts Lists for Wolf Scarifiers / Aerators Handlebar, Wheels, Roller

pos.	decription	spare part number
1	Switch-Key	4961 051
2	Upper Handlebar	4030 100
3	Screw	0012 883
4	Screw	4030 121
5	Washer	4032 189
6	Wingnut	4030 309
7	Lower Handlebar	4030 101
33	Insert-Grip	4030 310
34	traction wheel	4030 311
35	Screw	4032 178
36	Spring	4038 100
37	Spacing Tube	4030 312
38	Height Adjusting Arm, Right Hand	4030 316
39	Roll	4030 313
40	Axle	4030 102
41	Pipe	4030 314
42	Bearing	4032 185
43	Side Part, Right	4030 103
44	Shackle	4030 105
45	Spacing Tube	4030 315
46	Side Part, Left	4030 104
47	Height Adjusting Arm, Left Hand	4030 317
48	Roller Complete	4030 318
49	roller segment	4030 319
51	Cover	4030 320
52	Washer	4030 120
53	Stake	4030 107
54	Crowm Gear	4030 321
55	Washer	4030 122
56	Strain Relief Switzerland Only	4901 325
57	Hub Cap	4030 108
