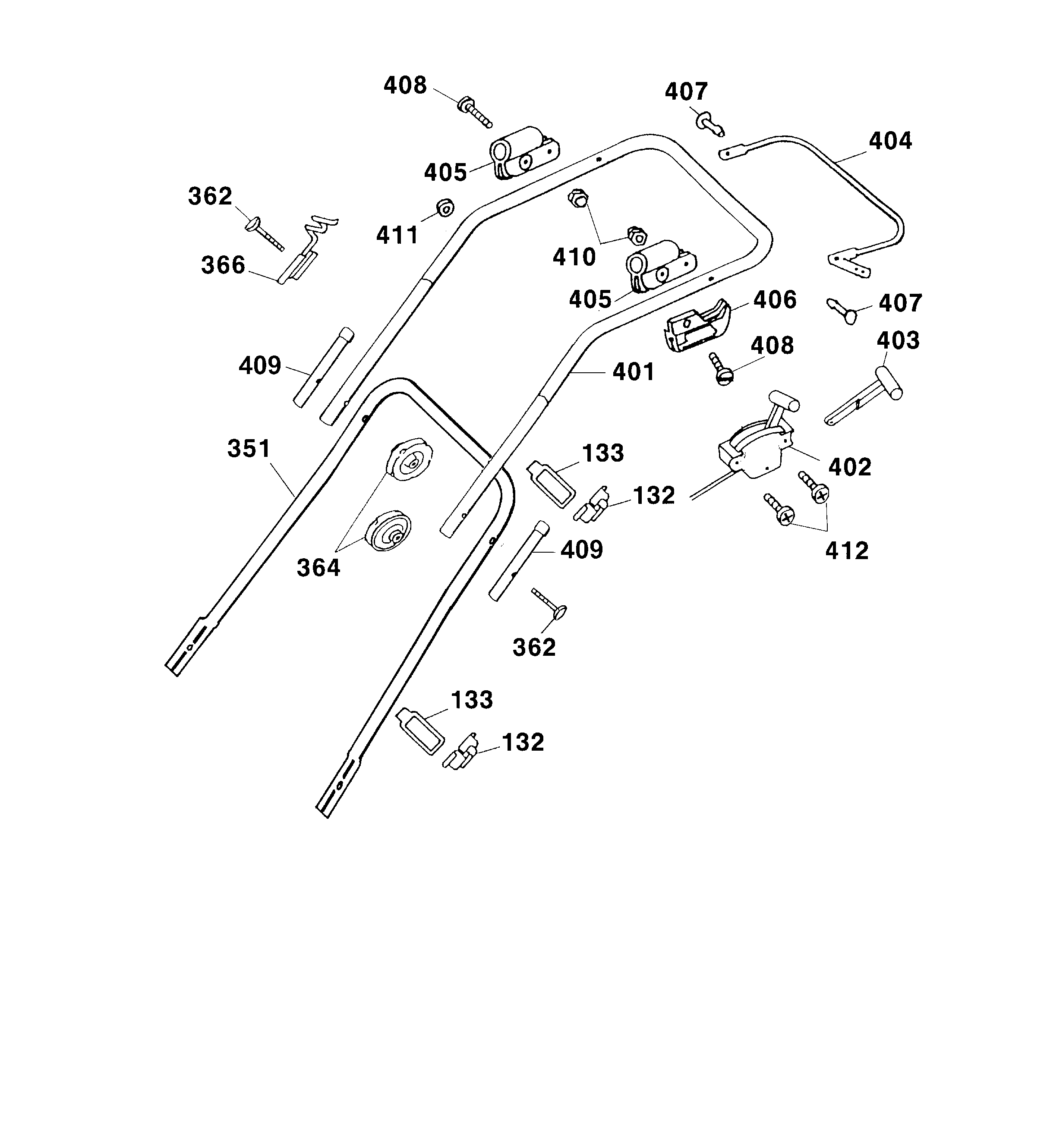

Spare Parts Lists for Wolf Mowers Handlebar compl.




spare parts list


pos.decriptionspare part number
132Clip6340 312
133Strap6340 314
351Lower Handlebar4011 122
362Connecting Screw4901 101
364Handwheel4936 022
366Guide-Rope6340 014
401Upper Handlebar4720 023
402Case With Bowden Wire, Gas4011 056
***Case, Right6450 325
***Case left6450 326
403Gear Lever4011 040
404Brake Lever4001 013
405Clamp-Casing4720 105
406Support4760 106
407Bolt4720 109
408Screw0012 211
409Closing Cap6340 125
410Nut0016 641
411Distance Disc4240 205
412Screw0012 886
***Instruction Manual0054 369
