> Mowers > Petrol > Without drive from 43 cm on > Esprit > Esprit 46 B > Handlebar compl.

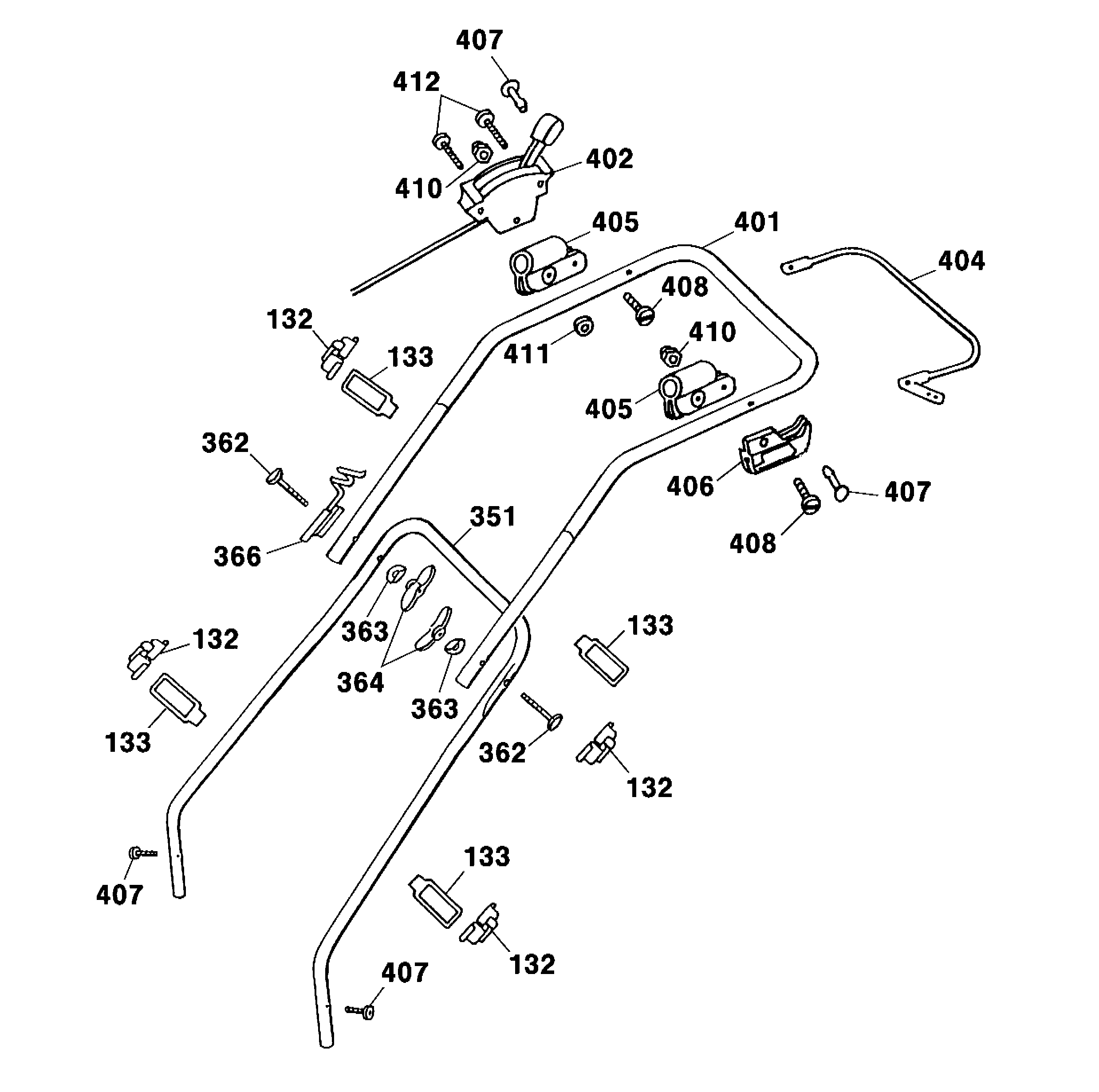

Spare Parts Lists for Wolf Mowers Handlebar compl.




spare parts list


pos.decriptionspare part number
132Clip6340 312
133Strap6340 314
351Lower Handlebar4601 120
362Connecting Screw4901 101
363Hollow Disk0017 275
364Wingnut0016 717
366Guide-Rope6340 014
401Upper Handlebar4001 021
402Case With Bowden Wire, Gas4601 055
404Brake Lever4001 013
405Clamp-Casing4720 105
406Support4760 106
407Bolt4720 109
408Screw0012 211
410Nut0016 641
411Distance Disc4240 205
412Screw0012 886
***Instruction Manual0054 164
***Bag With Accessories4042 026
