back to
>
Mowers
>
Petrol
>
Drive up to 42 cm
>
series 6
>
6.42 BAK
>
Handlebar compl.

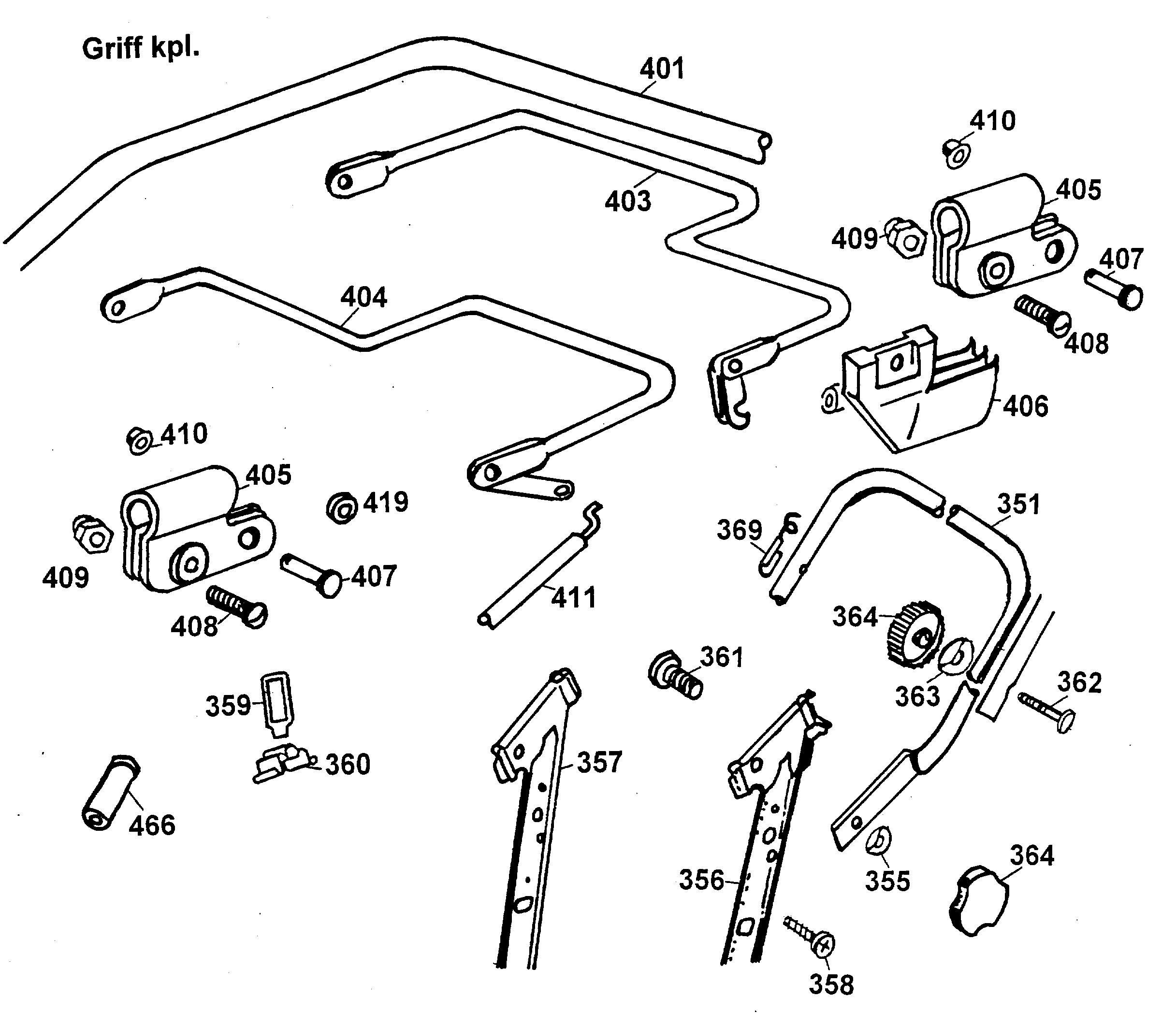

Spare Parts Lists for Wolf Mowers Handlebar compl.
pos.
decription
spare part number
351
Lower Handlebar
4850 120
355
Washer
0017 836
356
Retainer
4740 101
357
Retainer
4740 102
358
Screw
0012 890
359
Strap
6340 314
360
Clip
6340 312
361
Screw
4760 102
362
Screw
0013 525
363
Hollow Disk
0017 275
364
Handwheel
4936 022
369
Guide-Rope
6340 014
401
Upper Handlebar
4820 023
401
Upper Handlebar
4720 023
403
Lever
4722 035
404
Brake Lever
4765 013
405
Clamp-Casing
4720 105
406
Support
4765 106
407
Bolt
0018 107
408
Screw
0012 211
409
Nut
0016 641
410
Retaining Clip
0020 982
411
Bowden Wire Brake
4742 058
411
Bowden Wire Brake
4765 058
419
Distance Disc
4240 205
466
Closing Cap
6340 125
