> Mowers > Petrol > Drive from 43 cm on > series 2 > 2.46 HA > Handlebar compl.

Spare Parts Lists for Wolf Mowers Handlebar compl.

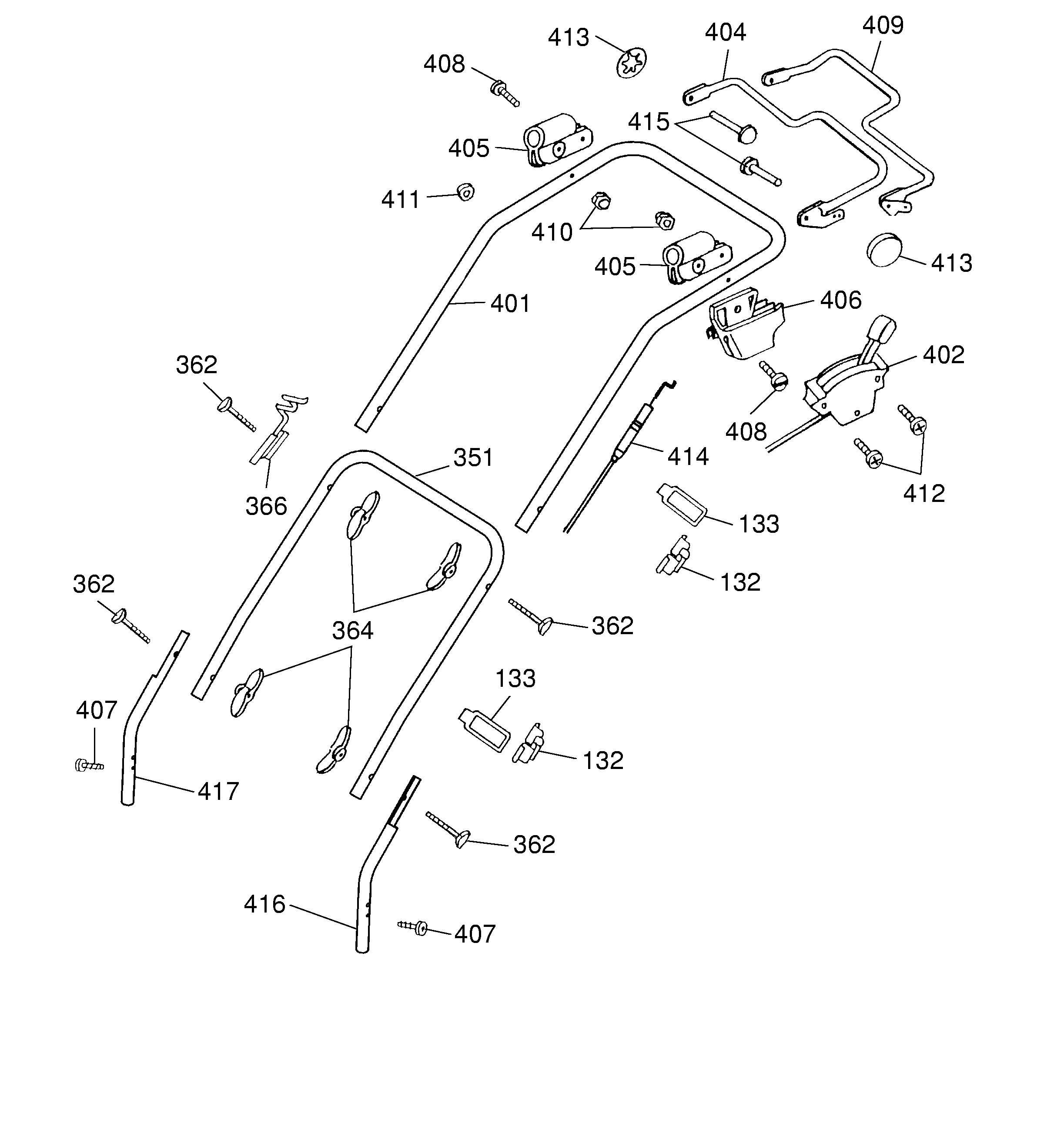

spare parts list


pos.decriptionspare part number
132Clip6340 312
133Strap6340 314
351Lower Handlebar4601 122
362Connecting Screw4901 101
364Wingnut0016 717
366Guide-Rope6340 014
401Upper Handlebar4001 031
402Case With Bowden Wire, Gas4001 056
404Brake Lever4015 013
405Clamp-Casing4720 105
406Double Support4015 306
407Screw0015 660
408Screw0012 211
409Lever4015 035
410Nut0016 641
411Distance Disc4240 205
412Screw0012 886
413Clip3585 503
414Bowden Wire Coupler4005 055
415Bolt0018 107
416Pipe, Left4001 125
417Pipe, Right4001 127
***Instruction Manual0054 382
