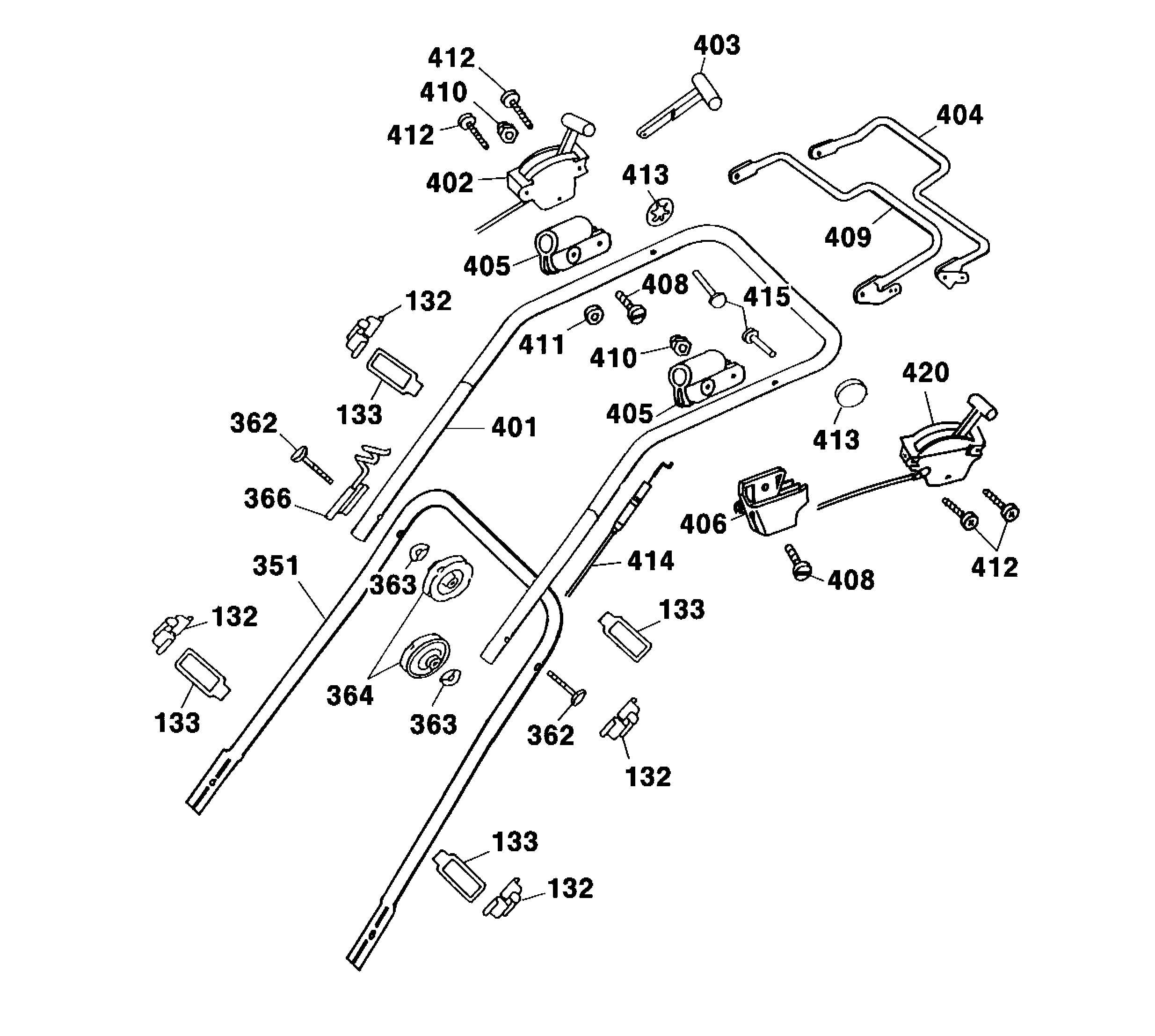

Spare Parts Lists for Wolf Mowers Handlebar compl.

pos.	decription	spare part number
132	Clip	6340 312
133	Strap	6340 314
351	Lower Handlebar	4628 120
362	Connecting Screw	4901 101
363	Hollow Disk	0017 275
364	Handwheel	4936 022
366	Guide-Rope	6340 014
401	Upper Handlebar	6320 023
402	Case With Bowden Wire, Gas	4615 057
***	bowden wire without case	4355 056
***	Case, Right	6450 325
***	Case left	6450 326
403	Gear Lever	4011 040
404	Brake Lever	4015 013
405	Clamp-Casing	4720 105
406	Double Support	4015 306
408	Screw	0012 211
409	Lever	4015 035
410	Nut	0016 641
411	Distance Disc	4240 205
412	Screw	0012 886
413	Clip	3585 503
414	Bowden Wire Driving	4015 055
415	Bolt	0018 107
420	Case Compl. With Bowden Wire, 2-Gear	4015 061
***	bowden wire 2-gear	4015 057
***	Instruction Manual	0054 165
***	Poly Bag With Operator Instr.	4011 025
