Spare Parts Lists for Wolf Mowers Handlebar compl.

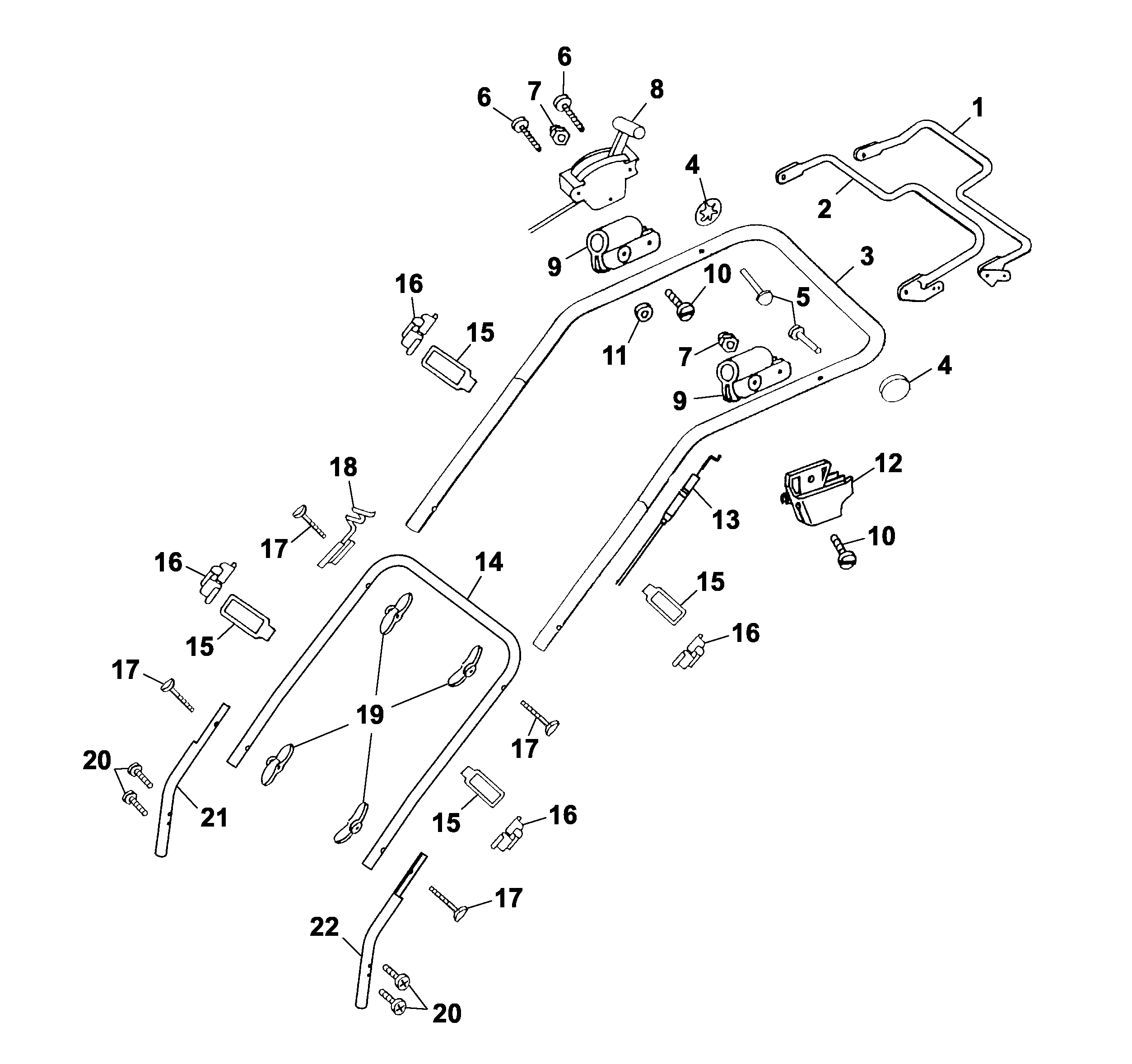

spare parts list


pos.decriptionspare part number
1Lever4015 035
2Brake Lever4015 013
3Upper Handlebar4602 023
4Clip3585 503
5Bolt0018 107
6Screw0012 886
7Nut0016 641
8Case With Bowden Wire, Gas4611 055
***Bowden Wire6450 056
***Case, Right6450 325
***Case left6450 326
***Gear Lever4011 040
9Clamp-Casing4720 105
10Screw0012 211
11Distance Disc4240 205
12Double Support4015 306
13Bowden Wire Coupler4005 055
14Lower Handlebar4601 132
15Strap6340 314
16Clip6340 312
17Connecting Screw4901 101
18Guide-Rope6340 014
19Wingnut0016 723
20Screw0015 660
21Pipe, Right4028 127
22Pipe, Left4028 125
***Instruction Manual0054 425
