> Mowers > Electro > Without drive up to 38 cm > Picco > Picco 32 E > Handlebar compl.

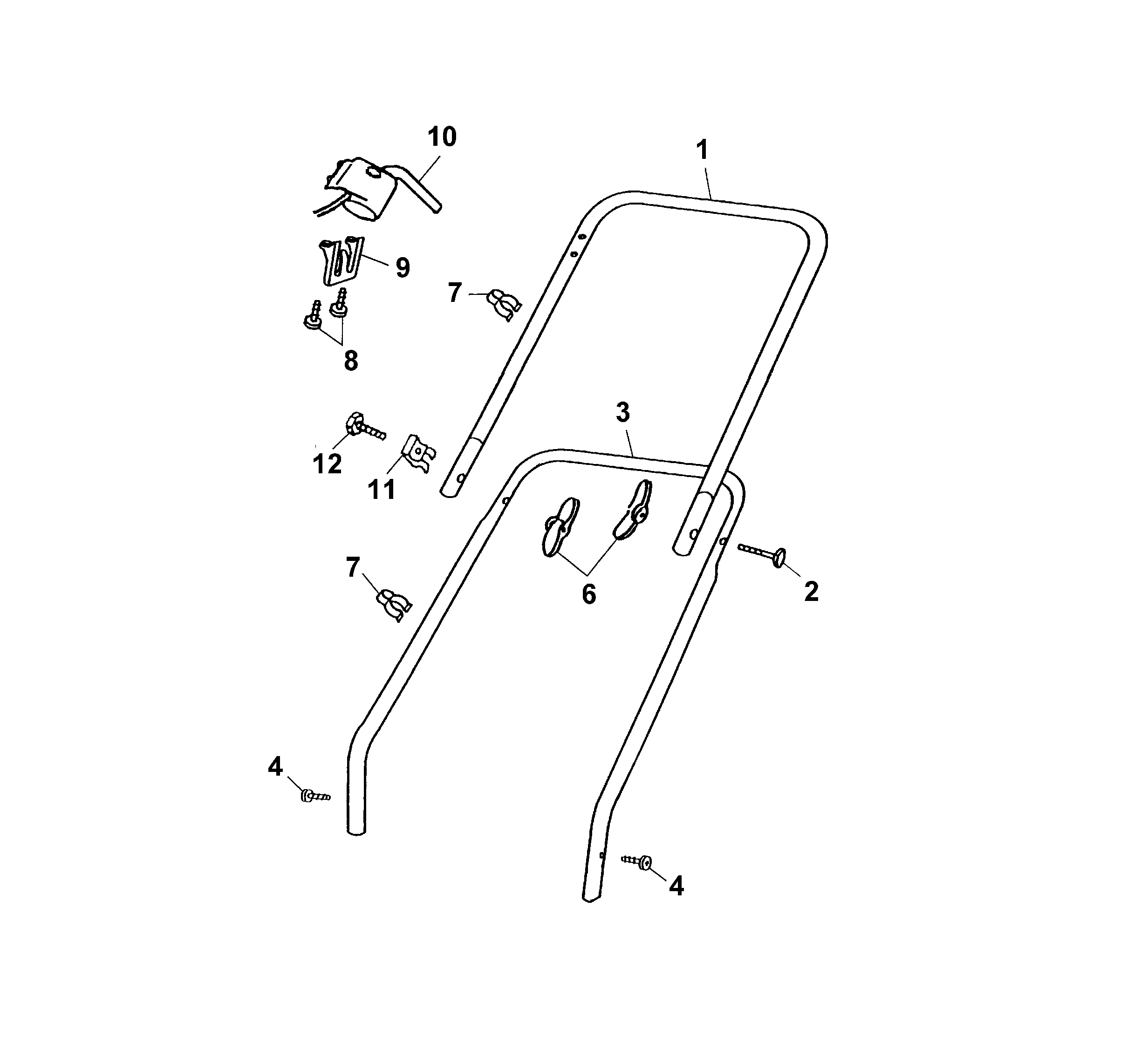

Spare Parts Lists for Wolf Mowers Handlebar compl.




spare parts list


pos.decriptionspare part number
1Upper Handlebar4901 020
2Connecting Screw4901 101
3Lower Handlebar4901 120
4Screw0015 660
6Wingnut0016 717
7Cable Clamp4950 307
8Screw0012 883
9Strain Relief3620 325
10Switch-Key4901 061
11bend protection4950 308
12Screw0010 338
***Instruction Manual0054 305
