> Mowers > Electro > Without drive up to 38 cm > Others > 32 EK > Handlebar compl.

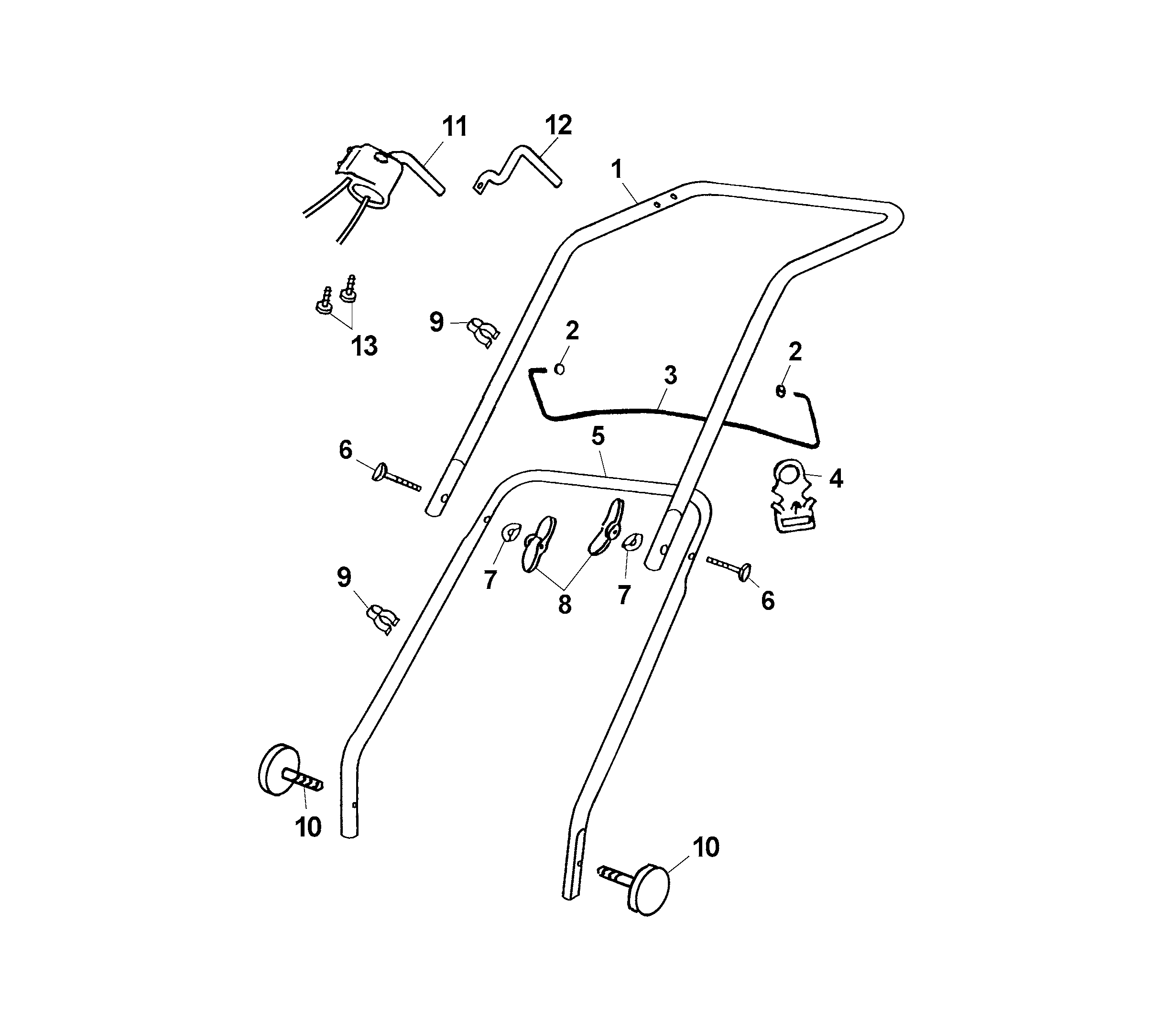

Spare Parts Lists for Wolf Mowers Handlebar compl.




spare parts list


pos.decriptionspare part number
1Upper Handlebar4932 035
2Clip3585 503
3Cable Guide4936 323
4Shackle4936 105
5Lower Handlebar4932 120
6Screw0013 525
7Hollow Disk0017 275
8Wingnut0016 717
9Cable Clamp4950 307
10Handwheel4950 010
11Switch4932 055
12Handle4932 100
13Screw0012 625
***Information Bulletin4932 213
***Instruction Manual0054 233
