> Mowers > Electro > Drive > series 6 > 6.42 EA > Handlebar compl.

Spare Parts Lists for Wolf Mowers Handlebar compl.

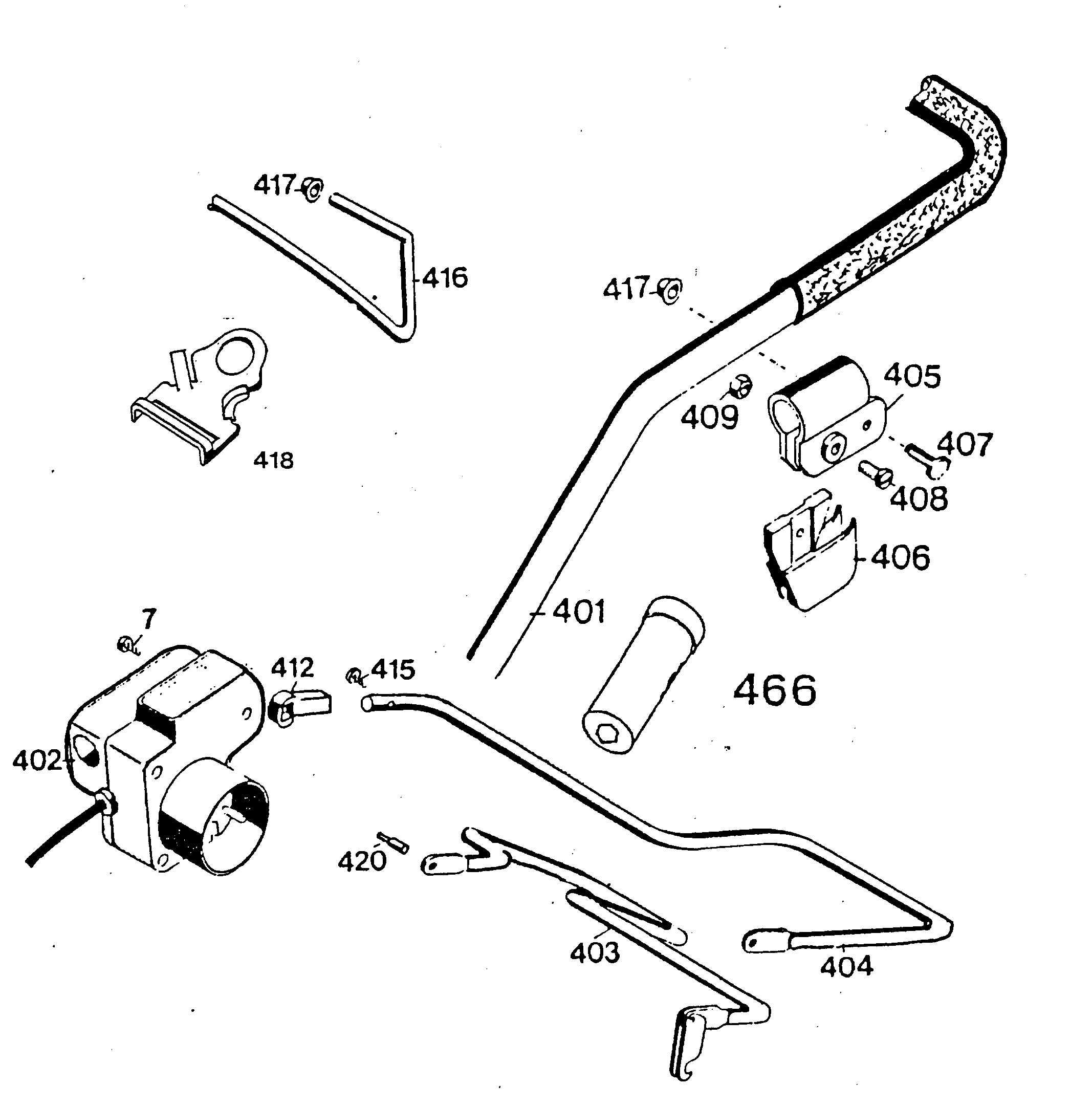

spare parts list 1
spare parts list 2


spare parts list


pos.decriptionspare part number
7Screw0012 625
spare parts list


pos.decriptionspare part number
351Lower Handlebar4850 120
355Washer0017 484
356Retainer4740 101
357Retainer4740 102
358Screw0012 890
361Screw4760 102
362Screw0013 525
363Hollow Disk0017 275
364Handwheel4936 022.
365Cable Clamp4950 307
369Guide-Rope6340 014
401Upper Handlebar4925 037
402Switch-Key4925 040
402Switch Switzerland Only4925 043
403Bracket Bracket6522 014
404Gear Lever4920 100
405Clamp-Casing4720 105
406Support4720 106
407Bolt0018 105
408Screw0012 211
409Nut0016 641
412Bushing4940 105
415Screw0015 652
416Shackle3585 100
417Clip3585 503
418Cable guide, black6840 223
420Bearing Bolt4920 208
466Closing Cap6340 125
