Spare Parts Lists for Wolf Mowers Kabelfix assembly 2

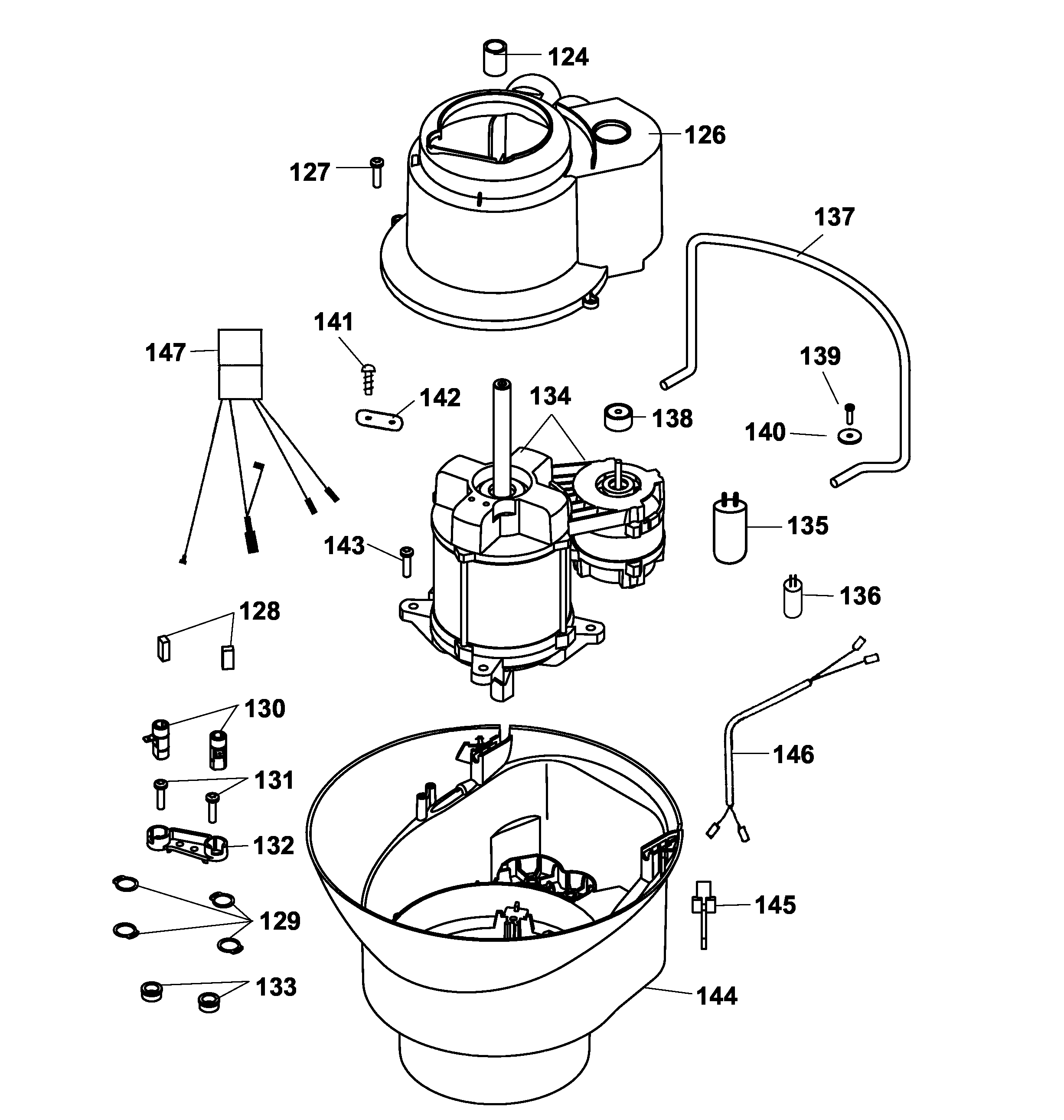

spare parts list


pos.decriptionspare part number
124Distance Bush4026 115
126Air-Conduction4026 312
127Screw0012 625
128Carbon Brush4026 107
129Retainer-E Ring0020 012
130Carbon Holder4026 106
131Screw 5X120012 605
132Carrier4026 313
133Cover Plate4026 108
134Motor1140 075
135Condenser, 20 µF1133 040
136Condenser, 1,5 µF1140 040
137Stop Motion Shackle4026 100
138Crown Gear4026 311
139Screw0012 625
140Washer0017 272
141Screw0012 625
142Clamp-Casing4557 208
143Screw0012 886
144Lower Part4026 310
145Brake Lever4026 320
146Wire Connector3567 214
147Cable Form4026 120
