Hedge-shears
>
Electro
>
HS
>
HS 54 E
>
Motor, Add-on pieces

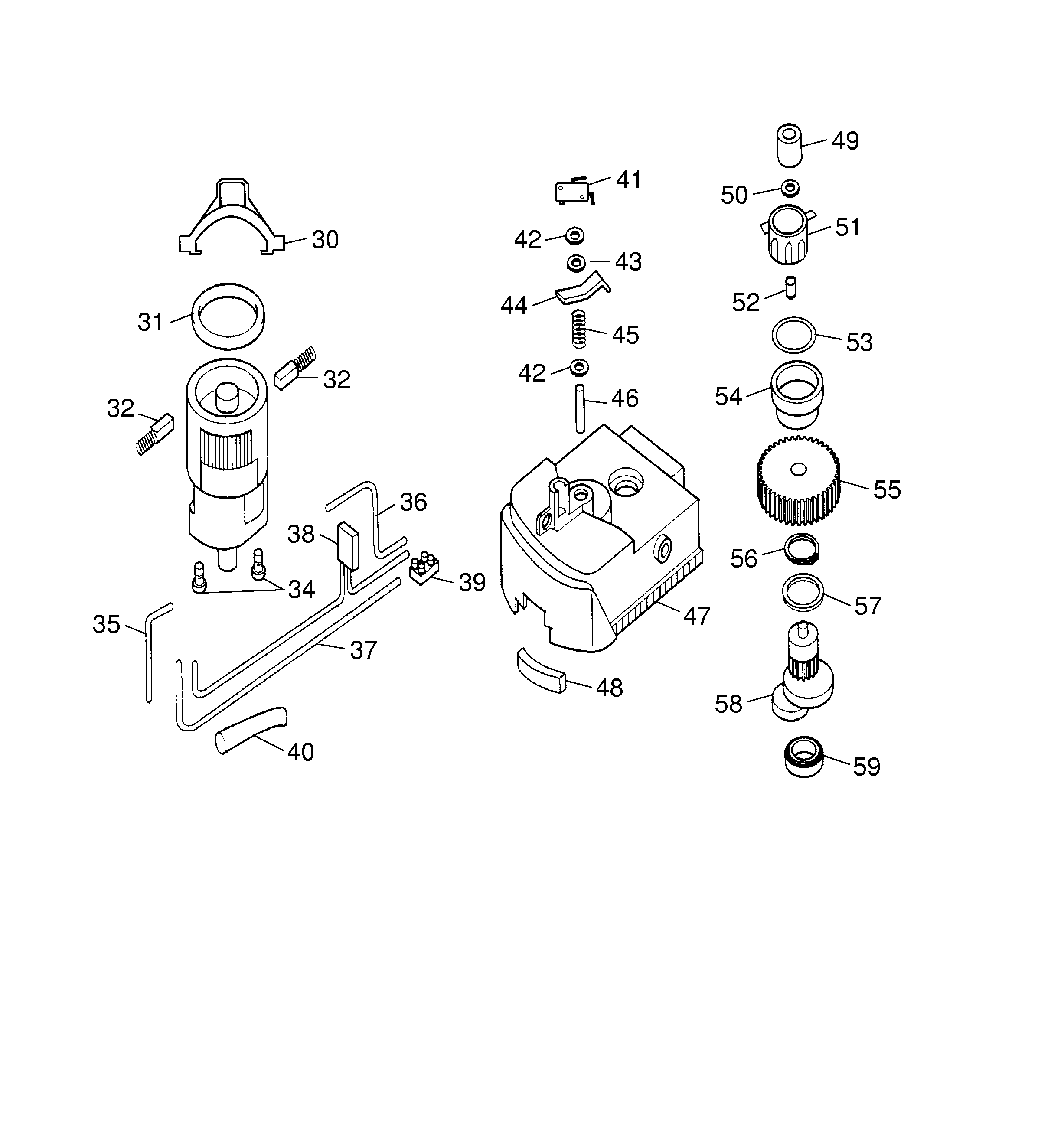

Spare Parts Lists for Wolf Hedge-shears Motor, Add-on pieces
pos.
decription
spare part number
30
Switch
7090 112
31
Round Ring
7490 304
32
Carbon Brush 1 Pair
7490 135
33
Motor
7490 060
34
Screw 4X16
7491 112
35
Standed Hook-Up Wire 12
7490 131
36
Standed Hook-Up Wire 24
7491 131
37
Lead 30
7492 132
38
Condenser 12Uf
7490 130
39
Connecting Clamp
7490 134
40
Silicon Tube
7490 314
***
Flat plug
7490 101
41
Switch
7490 110
42
Lock Washer
7490 119
43
U-Washer Coupling Bolt
7490 121
44
Rocker
7490 111
45
Compression Spring
7490 124
46
Dowel Pin
7490 117
47
Gearbox Casing
7490 309
48
Foam
7490 305
49
Bush
7491 110
50
Washer
7490 120
51
Clutch Housing
7490 118
52
Roll Barrel
7490 113
53
Ring
7490 311
54
Coupling body
7490 125
55
Driven Gear I4 P00038119
7490 114
56
Circlip
0020 023
57
Ring 13X3 Dia.
7490 312
58
Eccentric Shaft
7490 122
59
Roller Bearing 626 Zzr
7491 119
