> Mowers > Petrol > Drive up to 42 cm > series 2 > 2.42 TA > Motor, Blade, Shift case

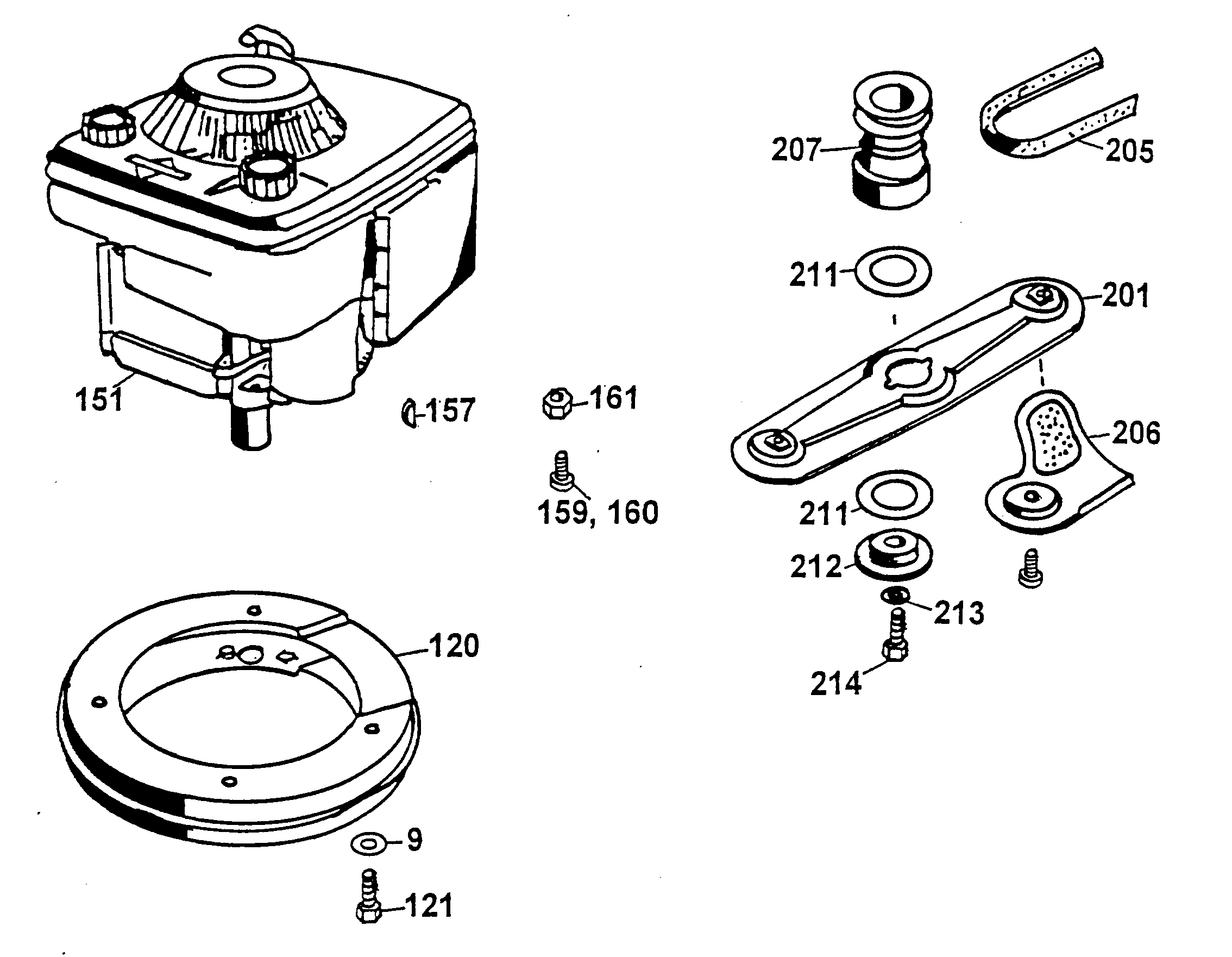

Spare Parts Lists for Wolf Mowers Motor, Blade, Shift case




spare parts list


pos.decriptionspare part number
9Washer0017 111
120Ring6340 022
121Hex Screw M8X30 Din 933 8.80010 399
151Motor2031 055
157Key0029 130
160Screw0011 351
161Hex. Nut0016 312
201Blade Compl. W. Repl. Blades4740 066
205Drive Belt 42Cm0039 210
206Replacement Blade Vi 42/526340 078
207Coupling6420 400
211Clutch facing4111 403
212Coupling Disk4840 402
213Washer spring0017 911
214Screw0010 268
***Poly Bag With Operator Manual4760 027
***Instruction Manual0054 141
***Collector Box4960 050
