> Mowers > Petrol > Without drive up to 42 cm > Esprit > Esprit 40 B > Motor, Blade

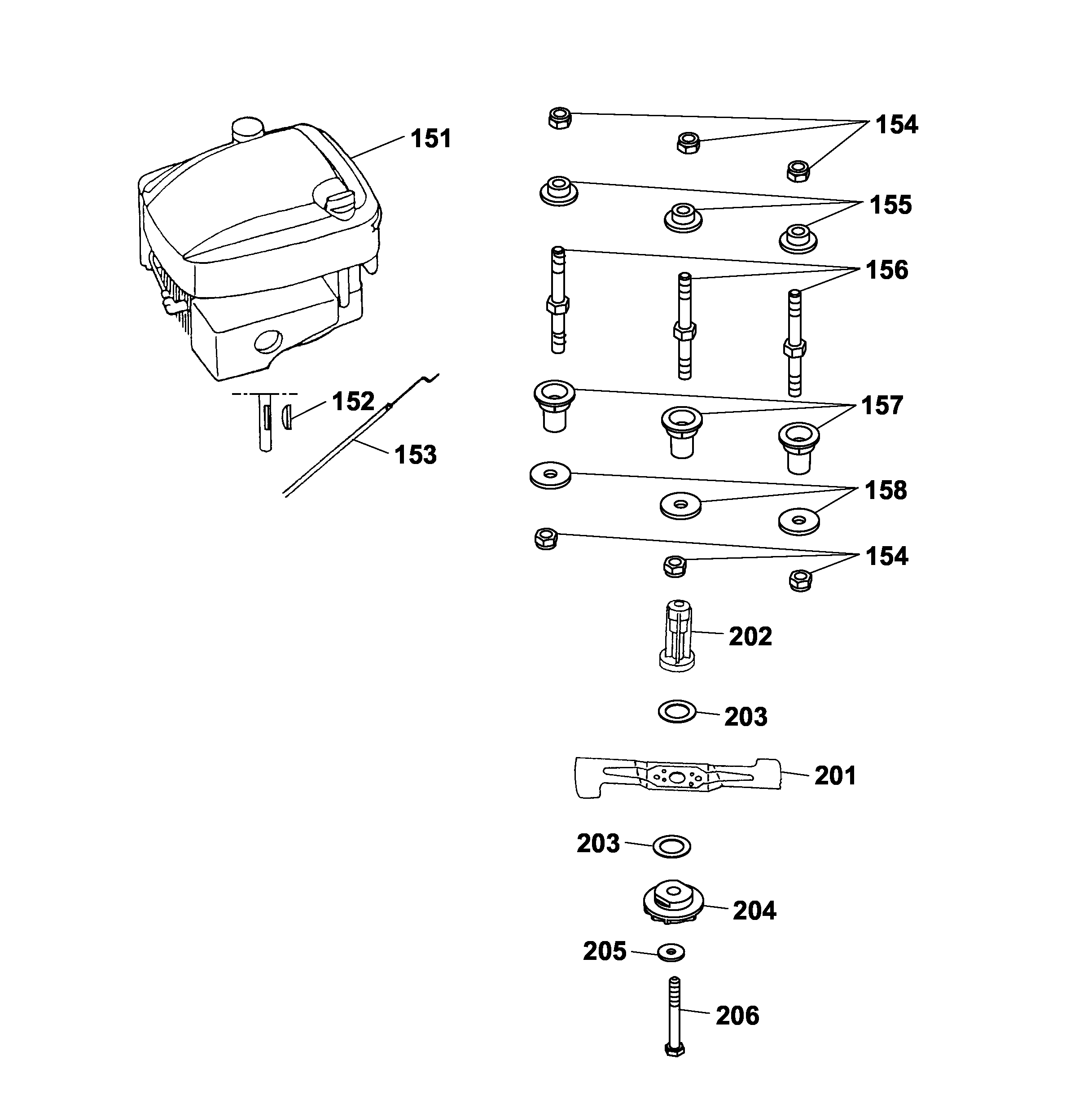

Spare Parts Lists for Wolf Mowers Motor, Blade




spare parts list


pos.decriptionspare part number
151Motor "Quattro 40"2056 000
151motor (Series D only)2056 005
152Key0029 130
153Bowden Wire Brake4005 058
154Hex. Nut0016 312
155Motor Bush4001 172
156Stud Bolt, Short4001 170
157Spacer4601 312
158Washer0017 111
201Blade4001 095
202Coupling4601 402
202coupling (Series D only)4605 404
203Clutch Facing4005 403
204Coupling Disk4840 402
205Friction Washer0017 105
206Screw0010 264
206Screw0010 268
