> Mowers > Petrol > Without drive from 43 cm on > series 2 > 2.46 BS > Motor, Blade

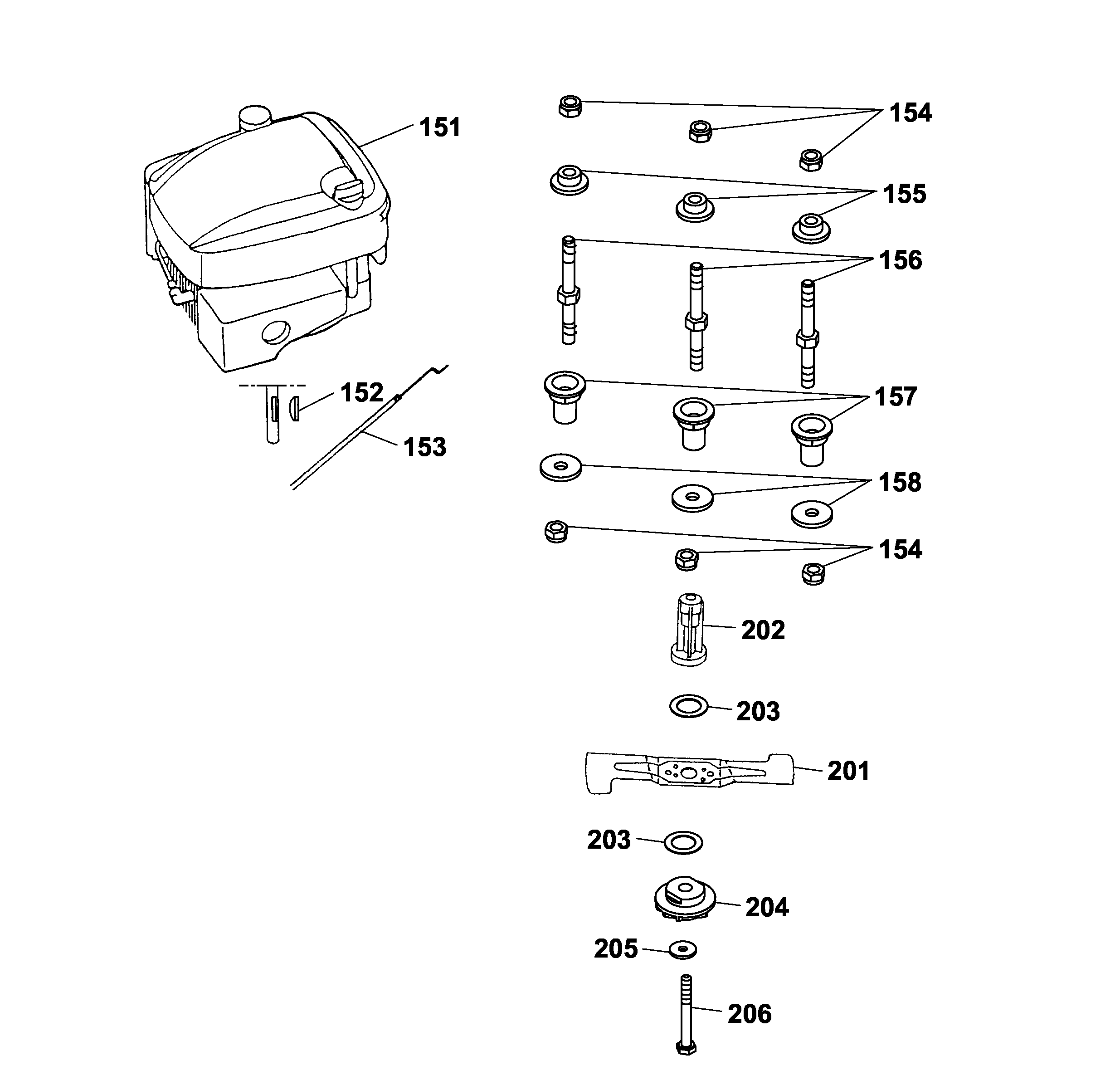

Spare Parts Lists for Wolf Mowers Motor, Blade




spare parts list


pos.decriptionspare part number
151Motor2079 000
152Key0029 130
153Bowden Wire Brake4005 058
154Hex. Nut0016 312
155Motor Bush4001 172
156Stud Bolt, Short4001 170
157Spacer4601 312
158Washer0017 111
201Blade4601 095
202Coupling4601 402
203Clutch Facing4005 403
204Coupling Disk4840 402
205Friction Washer0017 105
206Screw0010 264
