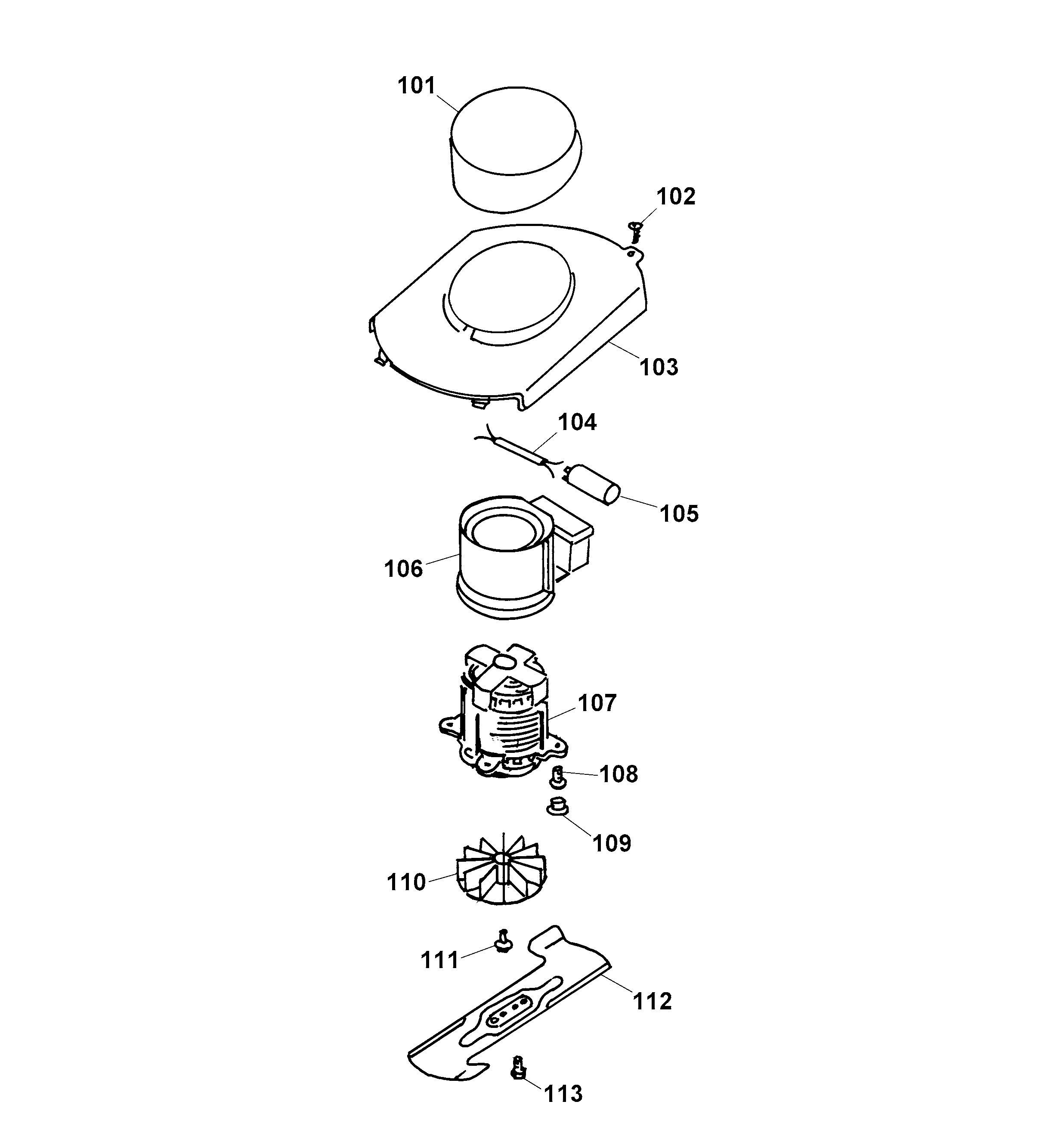

Spare Parts Lists for Wolf Mowers Motor, Blade




spare parts list


pos.decriptionspare part number
101Motor Covering4936 305
102Screw0012 625
103Chassis Cover4936 342
104Wire Connector3567 214
105Condenser 12Uf1117 040
106Air-Conduction4932 308
***Bearing Shield1105 100
***Upper Bearing Shield1140 110
***Brake Spring1142 157
***Brake1142 158
107Motor1141 005
108Screw0012 952
109Insert-Grip4936 308
110Fan Complete4916 052
111Screw0010 680
112Blade4936 090
113Hex. Screw M6X160010 366
