Spare Parts Lists for Wolf Tree Lopper Professional Lopper OR-VM (for F)

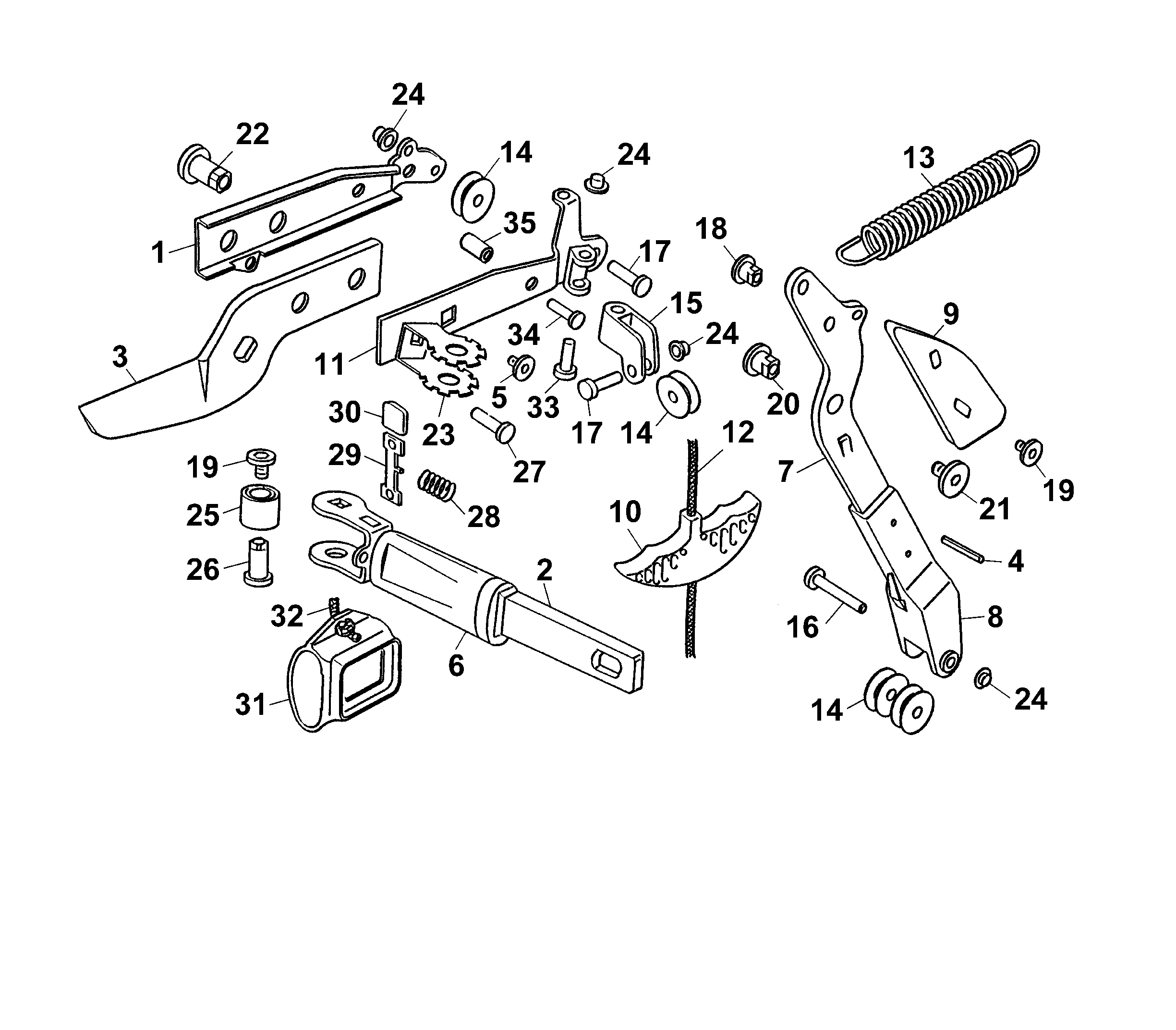

spare parts list


pos.decriptionspare part number
1U-Tang7204 200
2Link Compl. Mounted7204 013
3Blade Lever Coated7270 400
4Dowel Pin 6X140018 836
5Anvil Screw M67270 201
6Collar1315 101
***Handle Shell, Upper7204 100
***Handle Shell, Lower7204 101
***Fork7204 012
7Anvil Lever7200 401
8Plastics Pocket7200 100
9Anvil7273 060
10Handle At Change5702 105
11Sheet Metal Tang7200 206
12Tackle-Line7201 101
13Tension Spring7204 201
14Plastics Roll7201 203
15Roll Holder7200 201
16Bolt0018 106
17Bolt0018 101
18Anvil Shell7270 200
19Anvil Screw M67270 201
20Joint Shell7252 202
21Screw M87252 201
22Joint Nut M57280 200
23Link7200 205
24Axle Cap7082 503
25Spacer7200 209
26Joint Shell M6X317200 200
27Pin7211 210
28Compression Spring7081 228
29Locking Bar7200 202
30Cap Yellow7200 207
31Safety shell7201 300
32Rope - Starter7231 217
33Bolt0018 105
34Rivet7200 211
35Distance Bush7200 212
