Spare Parts Lists for Wolf Saws RE-VM

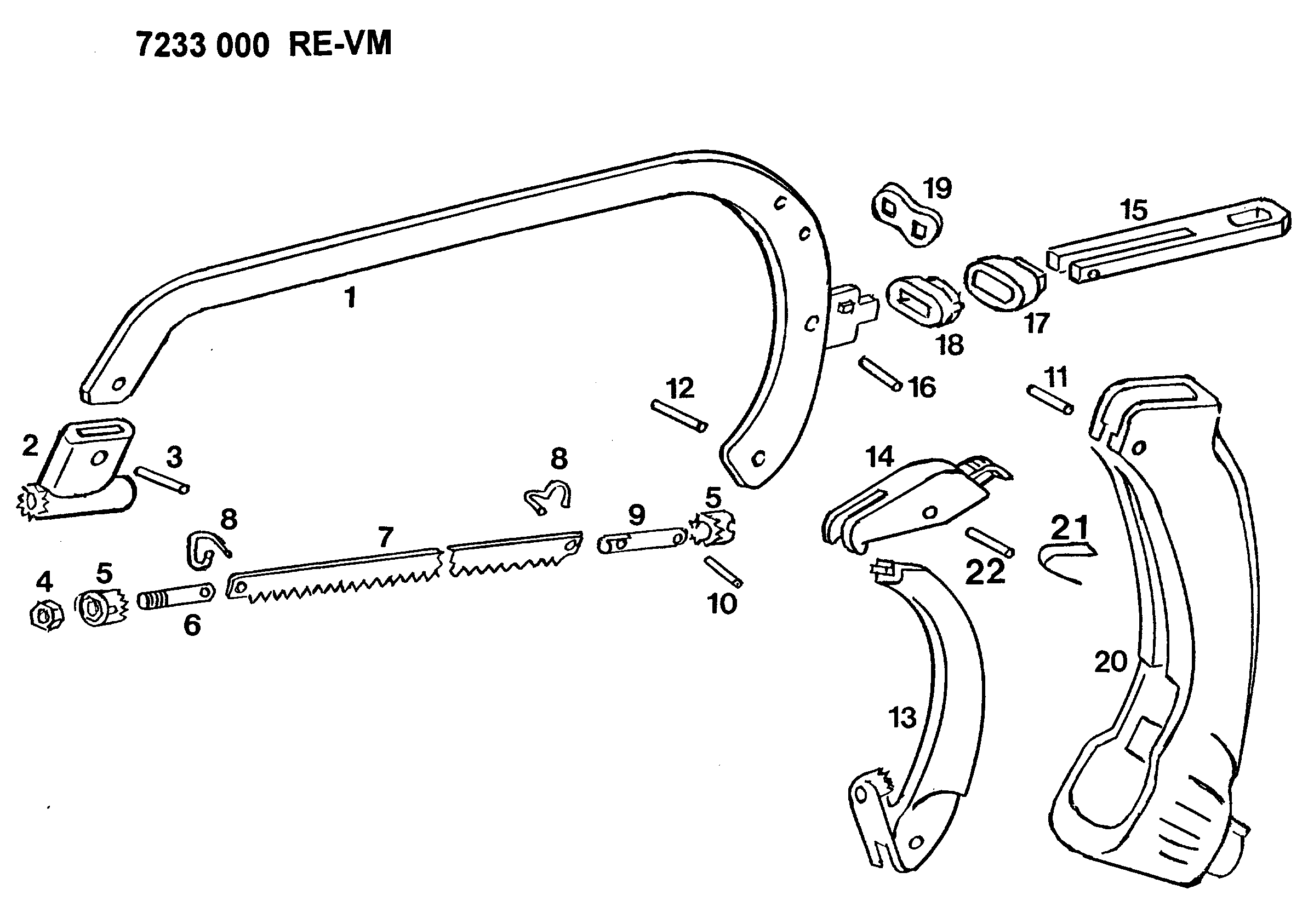

spare parts list


pos.decriptionspare part number
1Shackle7233 010
2Snap-in head7233 202
3Dowel Pin0018 001
4Self Locking Nut M8 Din 985 Ci.80016 213
5Star Wheel7233 205
6Acceptance7233 206
7Revb Saw Blade (Revm)7233 060
7Saw Blade7233 061
8Clip7233 207
9Holder for saw blade7233 208
10Dowel Pin0018 002
11Dowel Pin0018 003
12Dowel pin0018 004
13Tension Lever7233 209
14Locking Bar7233 215
15Connector7233 201
16Grooved Pin0018 638
17Collar1315 101
18Holder7233 204
19Lock7233 203
20Handle7233 011
21Coach Spring7233 216
22Pin0018 005
