Spare Parts Lists for Wolf Secateurs RR 26

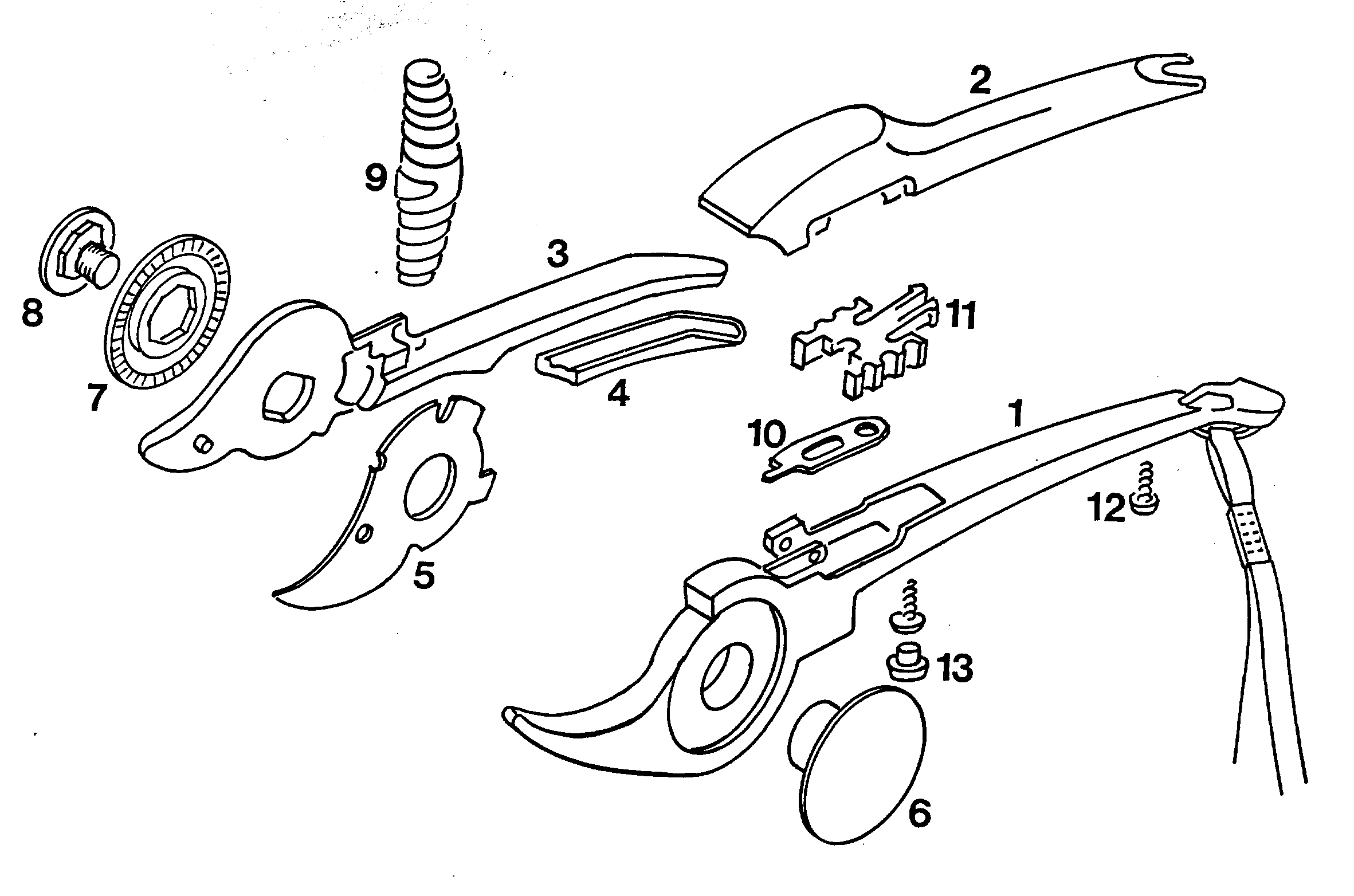

spare parts list


pos.decriptionspare part number
1Upper Handle7238 011
1Upper Handle With Loop7238 015
2Handgrip7238 110
3Lower Handle - Varnishes7238 113
4Lower Handle Shell7238 111
5Blade7238 060
5Blade7238 061
6Bushing7238 207
6Bush7238 213
7Snap-In Locking Device7238 219
8Screw7238 218
9Barrel Spring7236 200
10Sliding Device - Zinced7238 202
11Slide Button - Yellow7238 112
12Screw Ka25X8 Wn14420012 878
13Rubber Buffer7236 201
