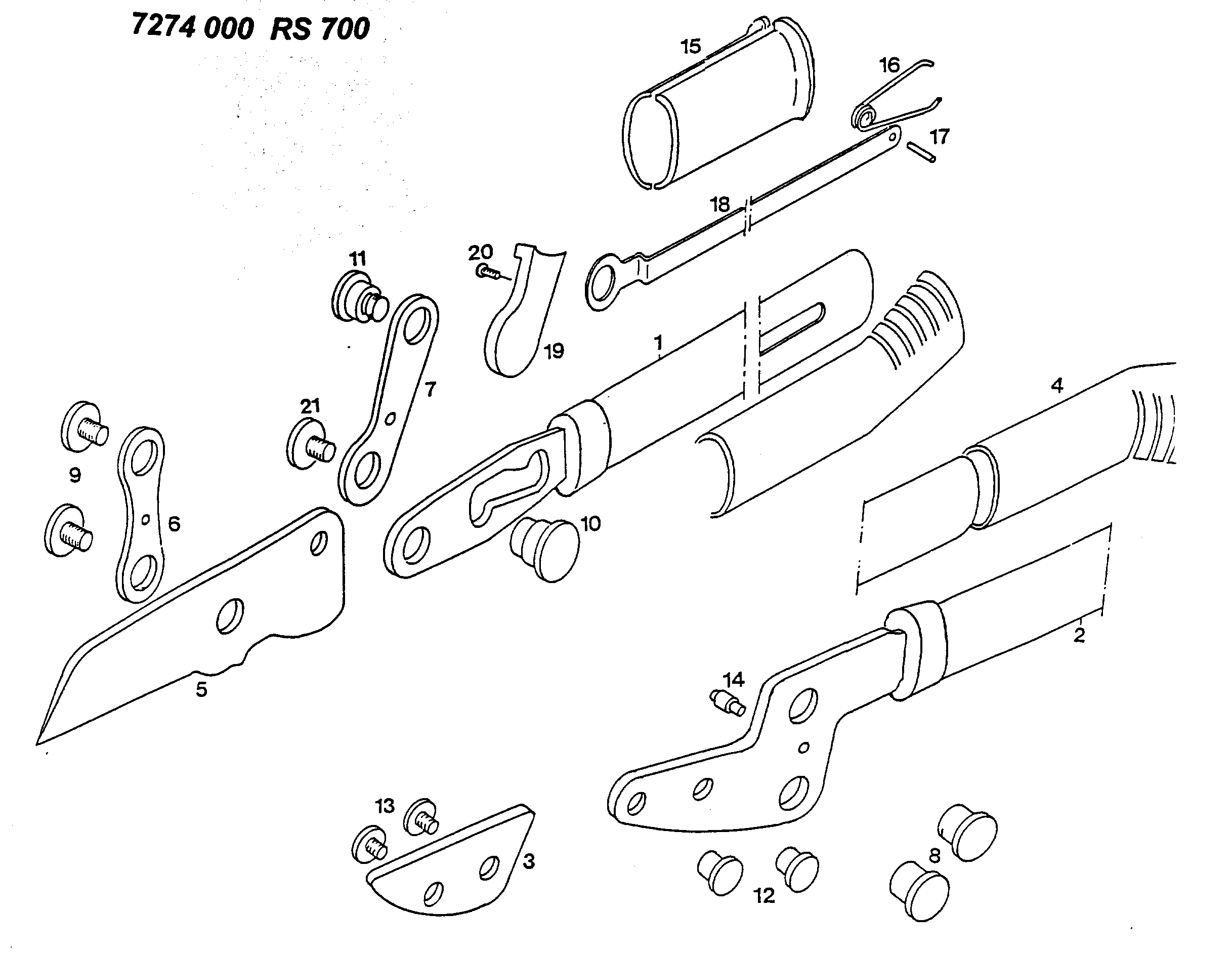

Spare Parts Lists for Wolf Loppers RS 700




spare parts list


pos.decriptionspare part number
Angle7272 400
Collar-Red7270 101
Handle tube7274 100
1Angle7274 012
Lever Zinced7271 401
Collar-Red7270 101
Handle tube7274 102
2Lever7274 013
3Anvil RS-EA17271 060
4Handle7252 105
5Blade7271 061
6Strap, Zinced7254 202
7Connecting Part, Red7254 223
8Tapped Bush7254 207
9Screw M87252 201
10Bush For Variation7254 206
11Bolt M10X1-Lh7254 203
12Anvil Shell7270 200
13Anvil Screw M67270 201
14Bolt7254 208
15Tube Handle Rs867272 105
16Spring7272 200
17Grooved Pin0018 638
18Rod7274 104
19Cover7272 201
20Screw0012 896
21Screw7254 205
***Screw Set Compl. Rs820/8607271 025
